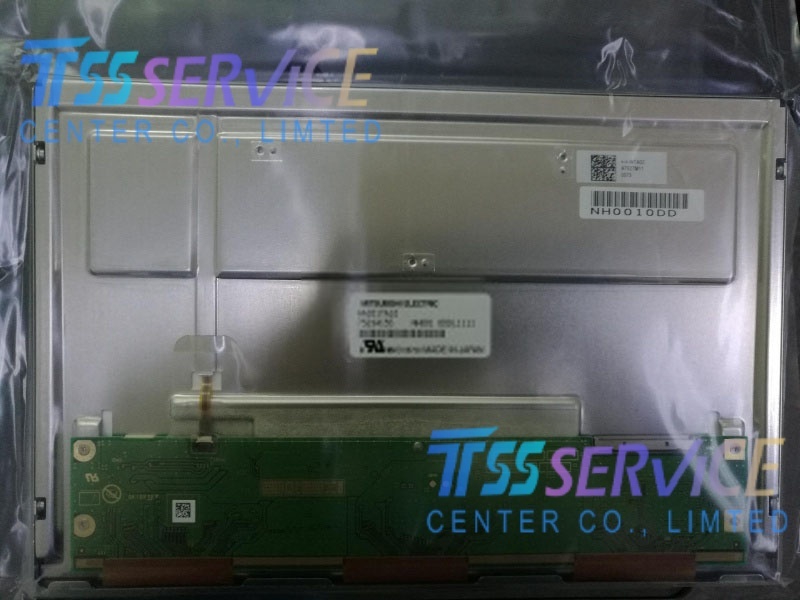

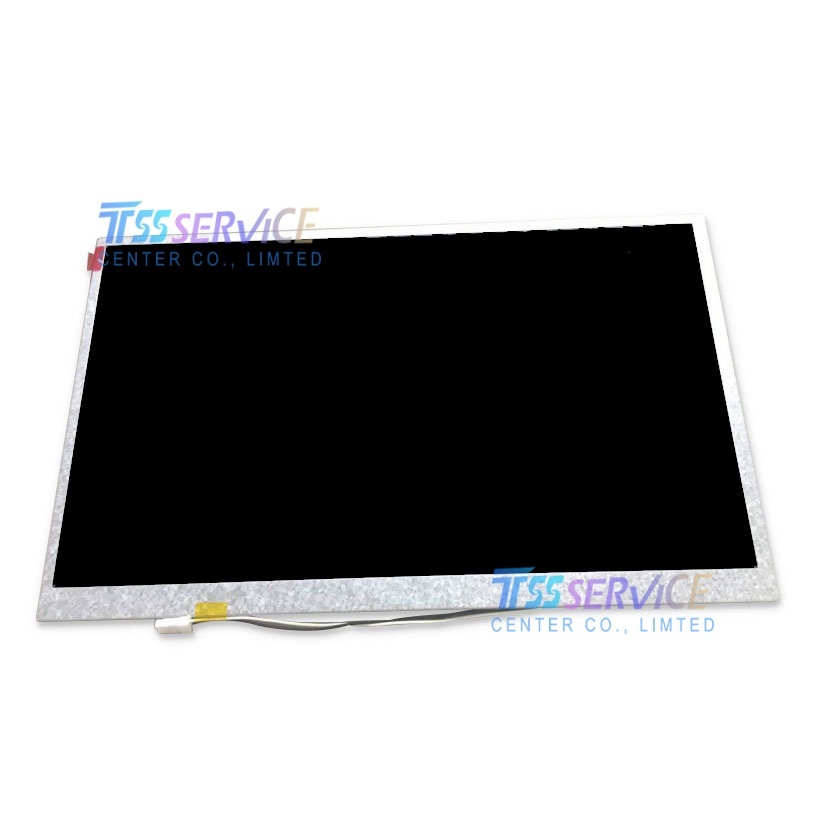

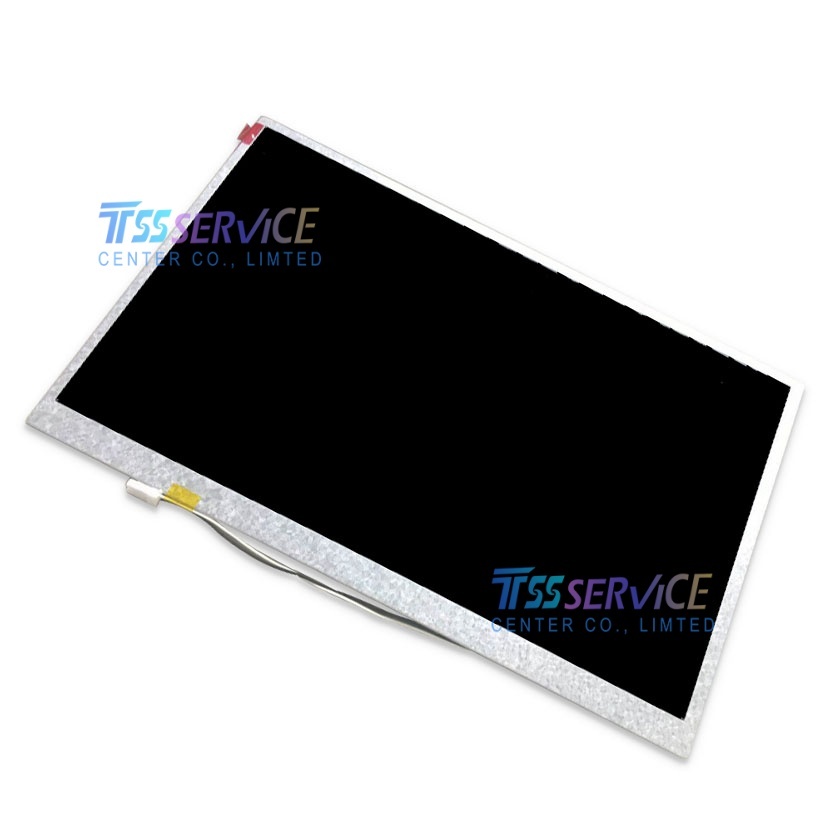

AA101TA12 10.1 Inch Mitsubishi 1280×800 Industrial TFT LCD Screen Display Panel

Name: AA101TA12 10.1 Inch Mitsubishi 1280×800 Industrial TFT LCD Screen Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA101TA12
Price: 345 USD
Availability: InStock

SKU: AA101TA12

Model Number: AA101TA12
Brand: MITSUBISHI ELECTRIC Industrial TFT-LCD LCM
Diagonal Display Size: 10.1 Inch Landscape
Native Resolution: 1280(RGB) × 800 WXGA, 16:10 Aspect Ratio, 149 PPI
Pixel Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$347.00~~ $345.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AA101TA12 10.1 Inch Mitsubishi 1280×800 Industrial TFT LCD Screen Display Panel

Item	Specification Parameter
Model Number	AA101TA12
Brand	MITSUBISHI ELECTRIC Industrial TFT-LCD LCM
Diagonal Display Size	10.1 Inch Landscape
Native Resolution	1280(RGB) × 800 WXGA, 16:10 Aspect Ratio, 149 PPI
Pixel Layout	RGB Vertical Stripe
Panel Technology	a-Si SWV TFT-LCD, Normally Black, Transmissive
Backlight	Edge-lit WLED, Built-in LED Circuit, Long Lifespan
Typical Brightness	800 cd/m²
Typical Contrast Ratio	1000:1 (TM Transmission Mode)
Viewing Angle L/R/U/D (CR≥10)	88° / 88° / 88° / 88° Full Symmetric Ultra Wide View
View Direction	Full Symmetric All-Angle Display
Typical Response Time (Tr+Td)	12ms / 12ms
Refresh Frequency	60Hz Standard Industrial Rate
Display Color Performance	262K/16.7M, 50% NTSC
Signal Interface	Single Channel LVDS 6/8-bit, 30Pin FPC Connector
Typical Input Logic Voltage	3.3V
Active Display Area	216.96 (W) × 135.6 (H) mm
Overall Outline Dimension	231 (W) × 153.5 (H) × 9.0 (D) mm
Net Panel Weight	310g Lightweight Module
Surface Treatment	Anti-Glare Matte, 3H Hard Anti-Scratch Coating
Mounting Structure	Side M3 Screw Mount Holes for Equipment Fixing
Touch Function	Without Touch Digitizer
Operating Temperature Range	-40℃ ~ +80℃ Ultra Wide Industrial Temp Range
Storage Temperature Range	-40℃ ~ +80℃ Extreme Low & High Temp Storage Support

Applications

Outdoor & Harsh Environment Industrial HMI & Automation Terminals
Outdoor factory monitoring workstations, CNC machine operation panels, injection molding machine control screens, mining site industrial parameter consoles, packaging equipment human-machine interfaces, assembly line visual inspection stations.
Medical Diagnostic & Clinical Monitoring Equipment
Hospital fixed patient bedside monitors, ambulance onboard emergency medical displays, veterinary inspection workstations, medical imaging auxiliary screens, clinical lab analysis equipment main display modules.
Construction, Agricultural & Special Engineering Vehicle On-board Displays
Excavator cabin sunlight-readable dashboards, tractor operation monitoring screens, heavy forklift high-bright parameter terminals, agricultural spraying machinery control panels, special engineering vehicle secondary monitoring modules.
Laboratory & Portable Precision Field Test Measuring Instruments
Industrial signal analyzers, power energy quality monitoring equipment, outdoor environmental gas detection analyzers, underground pipeline inspection monitors, portable industrial field data loggers.
Outdoor Self-service & Fixed Industrial Equipment Terminals
New energy outdoor charging pile data display screens, factory centralized safety monitoring terminals, industrial outdoor information query kiosks, marine miniature instrument sunlight-readable monitors, outdoor vending machine control display panels.
