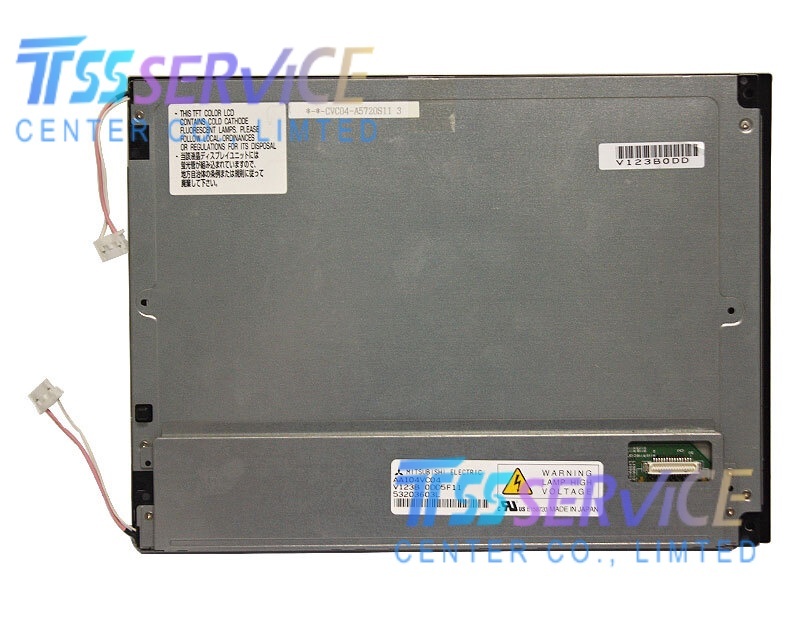

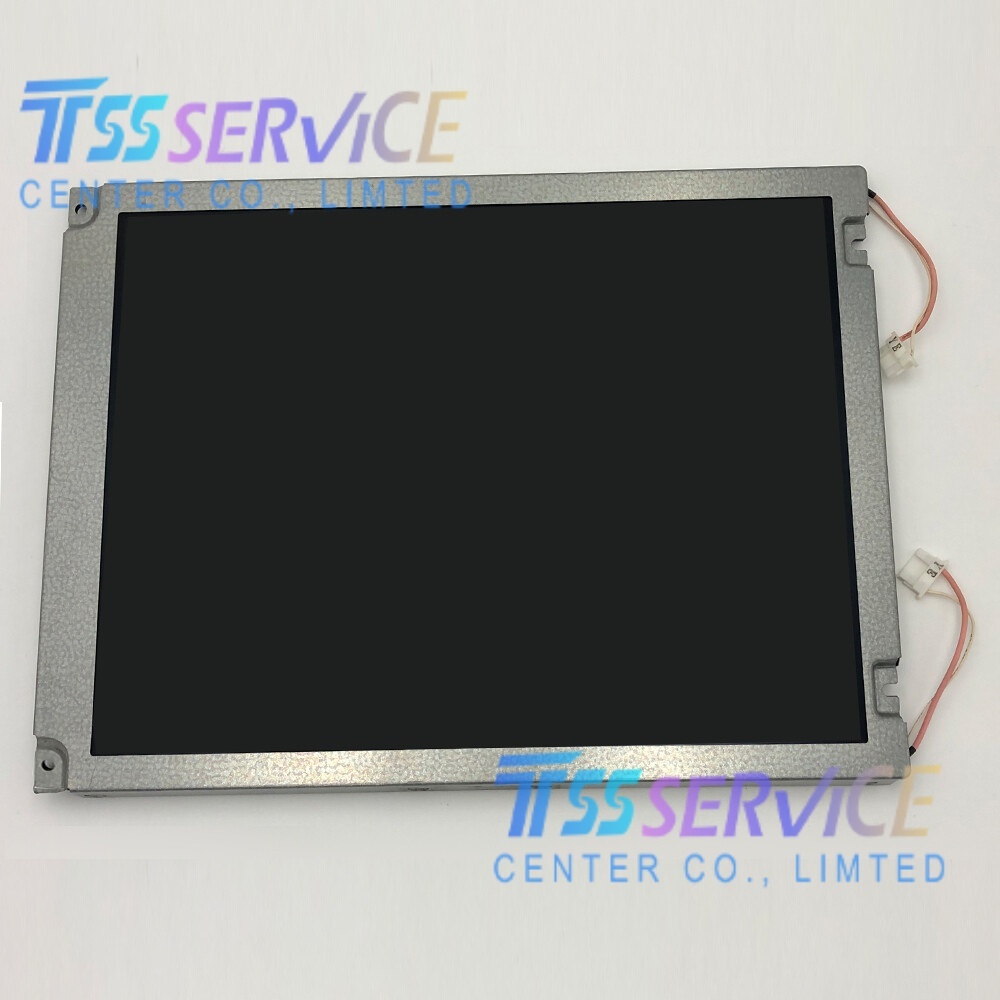

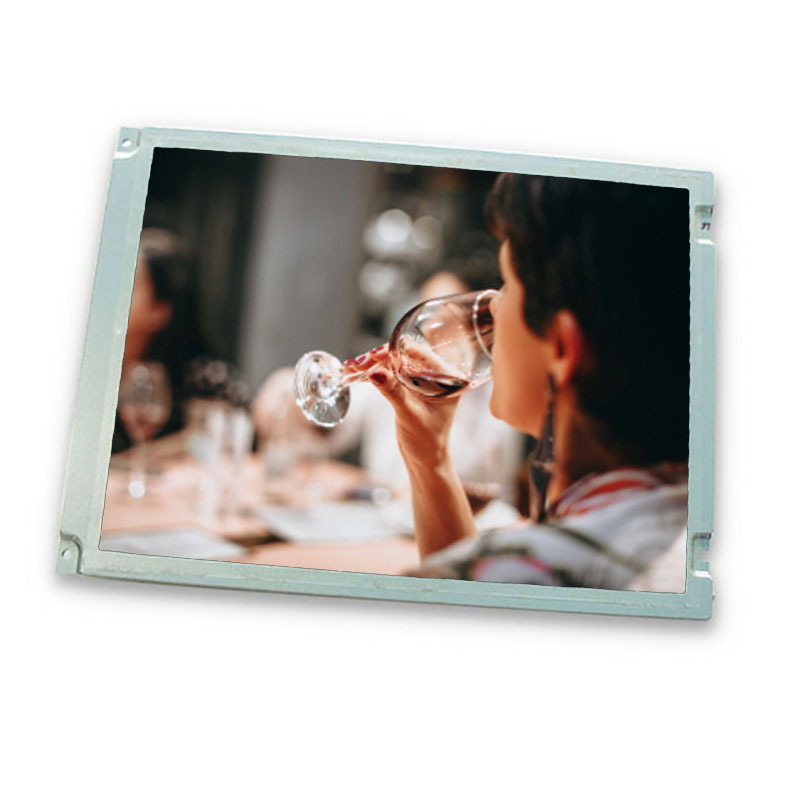

AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module

SKU: AA104VC04
Model: AA104VC04
Brand: Mitsubishi
Screen Size: 10.4 inches
Panel Type:  a-Si TFT-LCD, TN, Normally White
Resolution:  640×480 (VGA, 4:3)
0.0 (0 Reviews)
0 Sold
$85.00 $83.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
1/1
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
  • Description
AA104VC04 Mitsubishi 10.4" VGA TFT-LCD 640×480 Industrial Display Module
Parameter Details
Model AA104VC04
Brand Mitsubishi
Size 10.4 inches
Type a‑Si TFT‑LCD, TN, Normally White
Resolution 640×480 (VGA, 4:3)
Brightness 430 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.)
Viewing Angle (CR≥10) 65°/65°/45°/65° (L/R/U/D)
Colors 262K (6‑bit)
Response Time 6/19 ms (Tr/Td)
Backlight CCFL (2 lamps), 50,000 hrs
Interface CMOS (1 ch, 6‑bit), 31 pins
Voltage 3.3V (Logic)
Operating Temp ‑20°C ~ +70°C
Storage Temp ‑30°C ~ +80°C
Outline 243×181.6×12.7 mm
Weight ~ 570g
Surface Hard coating (2H)
Compliance RoHS
Status EOL

Applications

  • Industrial Automation: PLC, HMI, CNC machinery and control cabinets
  • Transportation: Construction machinery, railway and marine display systems
  • Medical Devices: Patient monitors and diagnostic equipment
  • Public Terminals: Kiosks and security monitoring displays
