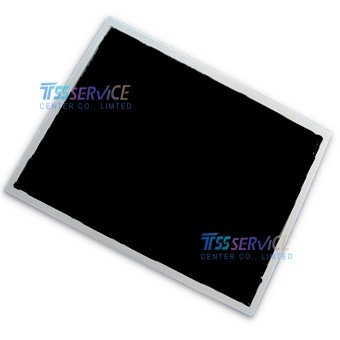

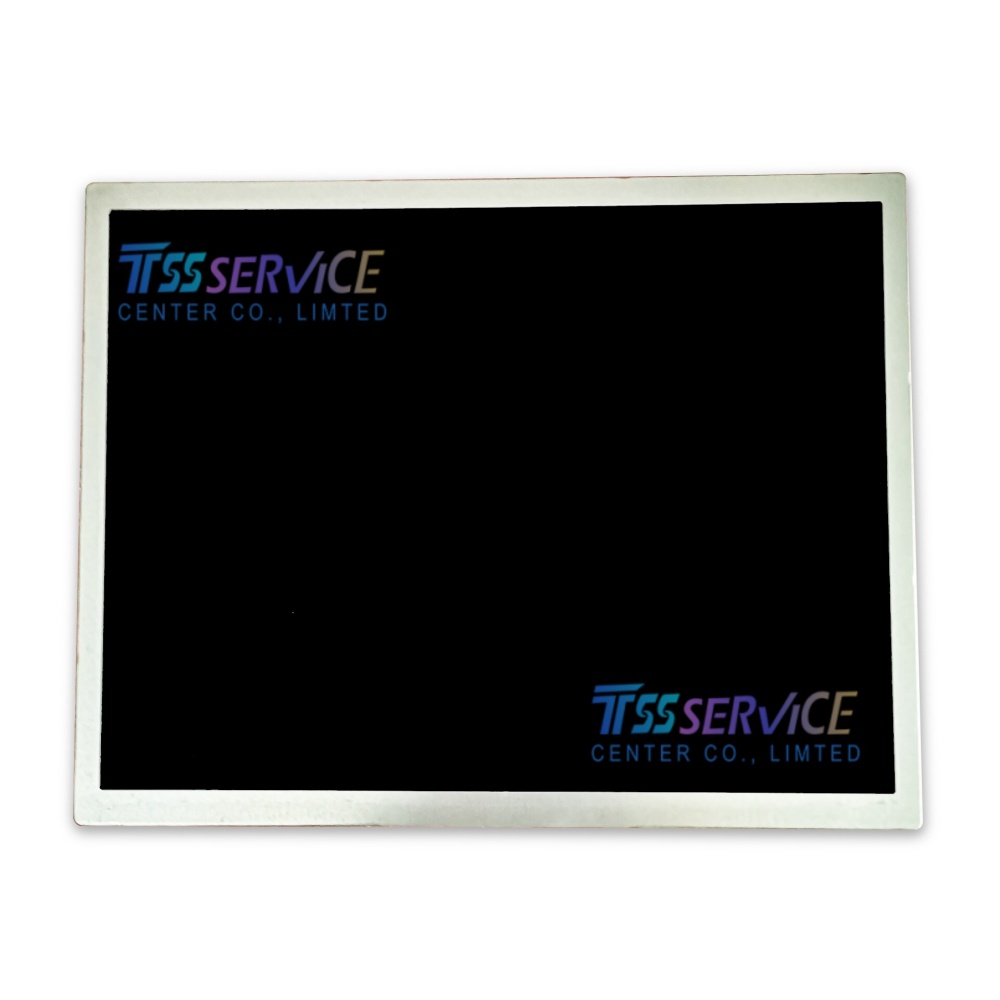

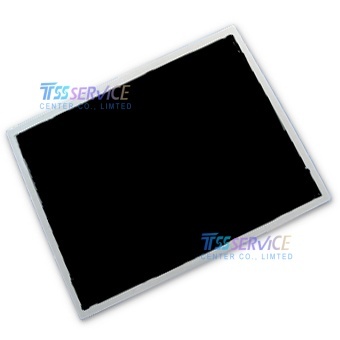

AA104XD11 10.4 inch 1024×768 LCD Panel Screen For Mitsubishi

Name: AA104XD11 10.4 inch 1024×768 LCD Panel Screen For Mitsubishi
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA104XD11
Price: 238 USD
Availability: InStock

SKU: AA104XD11

Model: AA104XD11
Brand: Mitsubishi
Size: 10.4 inch
Resolution: 1024×768 (XGA)
Display Type: a-Si TFT‑LCD, Transmissive

0.0 (0 Reviews)

0 Sold

~~$240.00~~ $238.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AA104XD11 10.4 inch 1024×768 LCD Panel Screen For Mitsubishi

Parameter	Specification
Model	AA104XD11
Brand	Mitsubishi
Size	10.4 inch
Resolution	1024×768 (XGA)
Display Type	a-Si TFT‑LCD, Transmissive
Mode	TN, Normally White
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.)
Viewing Angle	80/80/65/65 (CR≥10)
Colors	262K / 16.7M, 39% NTSC
Backlight	WLED, 4 strings, 100K hrs
Interface	LVDS (1ch, 6/8‑bit), 20 pins
Supply Voltage	3.3V
Operating Temp	-30°C ~ +80°C
Storage Temp	-30°C ~ +80°C
Mechanical	241×180.2×11 mm, 520g
Surface	Matte, Hard coating (3H)
Compliance	RoHS
Status	Discontinued
