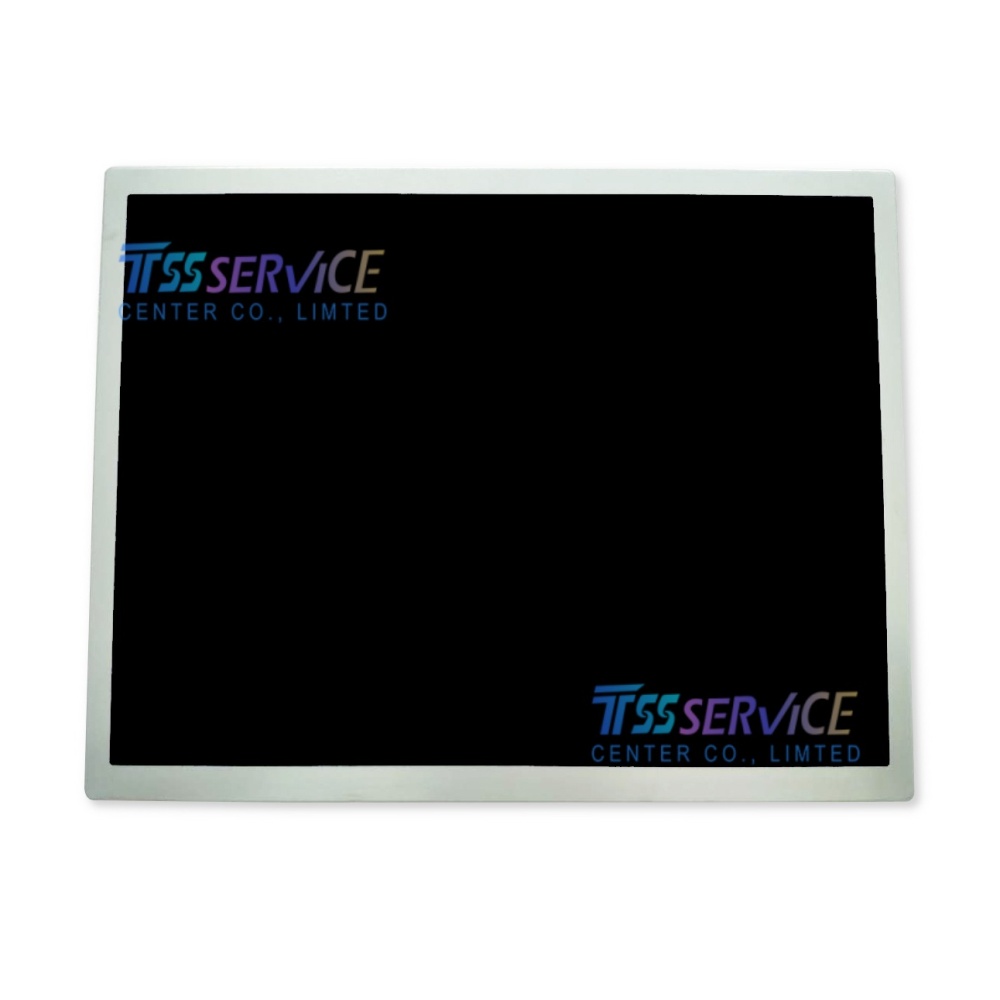

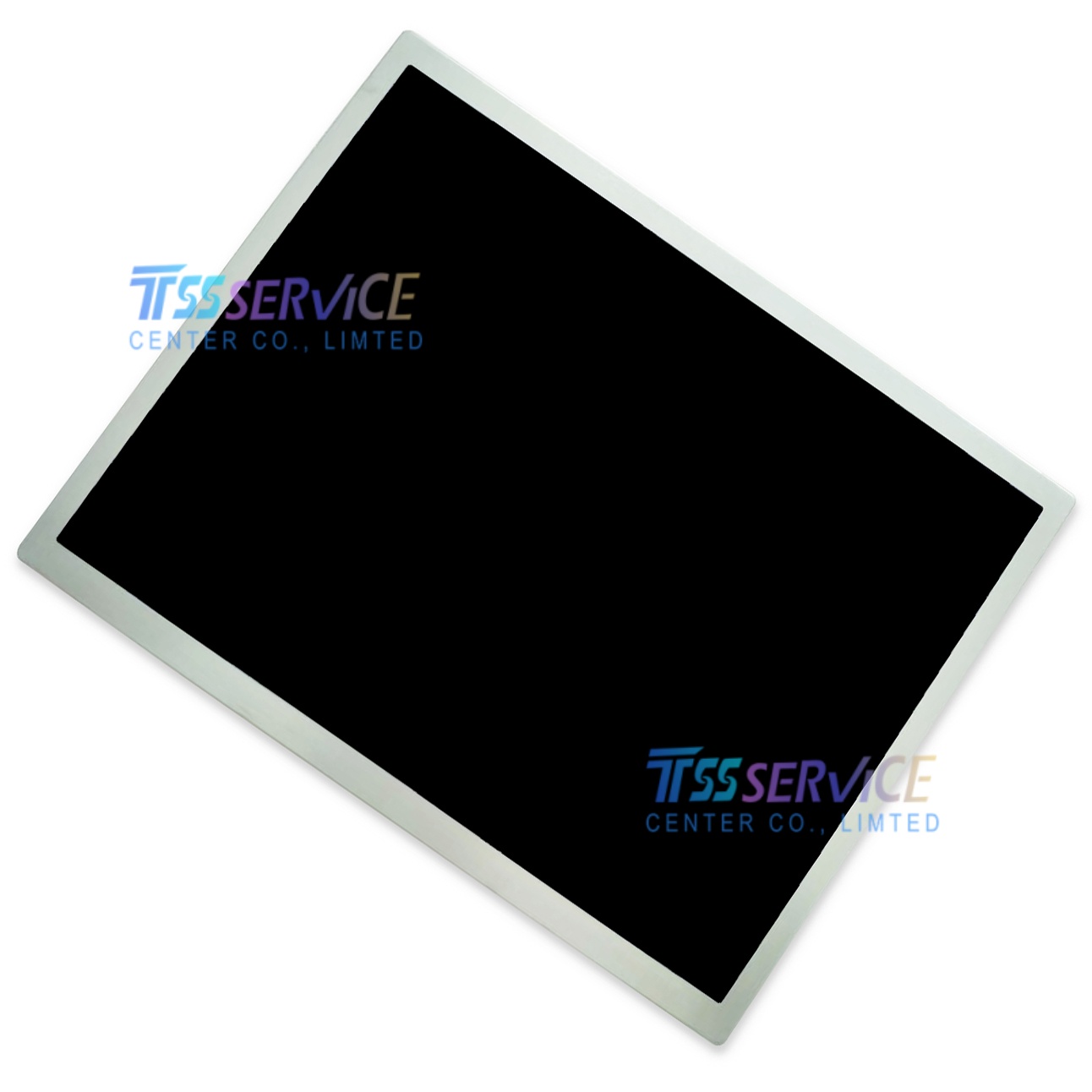

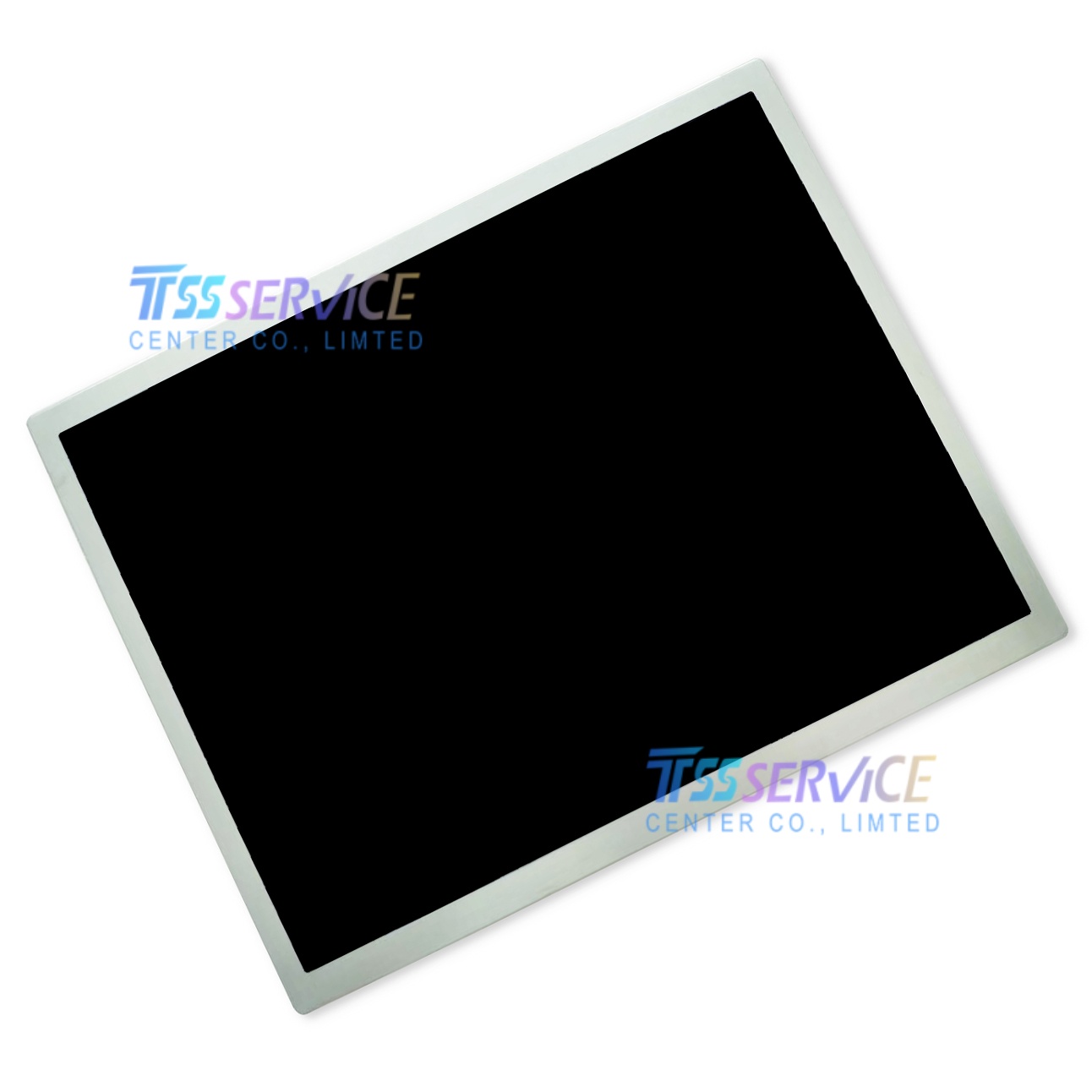

Mitsubishi 10.4 inch AA104XF17 1024×768 Industrial LCD Display Screen
| Parameter |
Specification |
Unit |
| Brand |
Mitsubishi Electric |
– |
| Model |
AA104XF17 |
– |
| Display Size |
10.4 (diagonal) |
inch |
| Panel Type |
a‑Si TFT‑LCD, LCM |
– |
| Resolution |
1024 (RGB) × 768 (XGA) |
pixel |
| Active Area |
210.4 (H) × 157.8 (V) |
mm |
| Outline Dimensions |
230(H)×180.2(V)×10(D) mm |
mm |
| Pixel Configuration |
RGB Vertical Stripe |
– |
| Brightness |
600 (Typ.) |
cd/m² |
| Contrast Ratio |
700:1 (Typ., TM) |
– |
| Viewing Angle (CR≥10) |
80/80/65/65 (L/R/U/D) |
deg |
| View Direction |
6 o’clock |
– |
| Response Time |
4/12 (Typ.)(Tr/Td) mm |
ms |
| Display Mode |
TN, Normally White, Transmissive |
– |
| Surface Treatment |
Antiglare (Matte), Hard coating (3H) |
– |
| Colors |
262K (6‑bit) / 16.7M (8‑bit) |
– |
| Backlight |
WLED, 50,000 hours, w/o driver |
– |
| Interface |
LVDS (1 ch, 6/8‑bit), 20‑pin connector |
– |
| Supply Voltage |
+3.3V (Typ.) |
DC |
| Operating Temperature |
−30 ~ +70 |
°C |
| Storage Temperature |
−30 ~ +80 |
°C |
| Weight |
650 (Typ.) |
g |
Typical applications include:
- Industrial HMI & Control Panels – Factory automation, CNC machinery, PLC terminals, and industrial PCs (IPCs).
- Outdoor & Bright‑Environment Displays – Kiosks, digital signage, and outdoor monitoring stations (600 cd/m² brightness).
- Medical Equipment – Patient monitors, diagnostic devices, and lab analyzers (non‑surgical).
- Rugged Transportation – Railway control panels, in‑vehicle industrial terminals, and heavy‑duty vehicle dashboards.
- Test & Measurement Instruments – Oscilloscopes, spectrum analyzers, and high‑end laboratory equipment.
- Marine & Offshore Displays – Ship navigation, bridge control systems, and vessel monitoring consoles.
