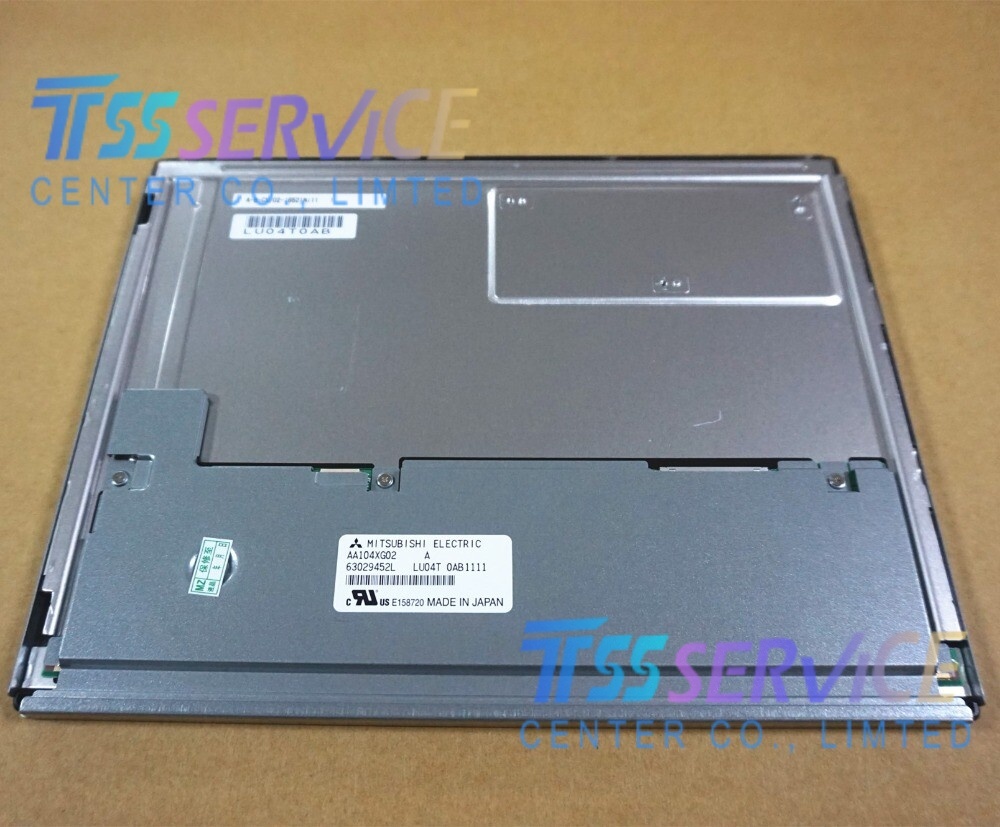

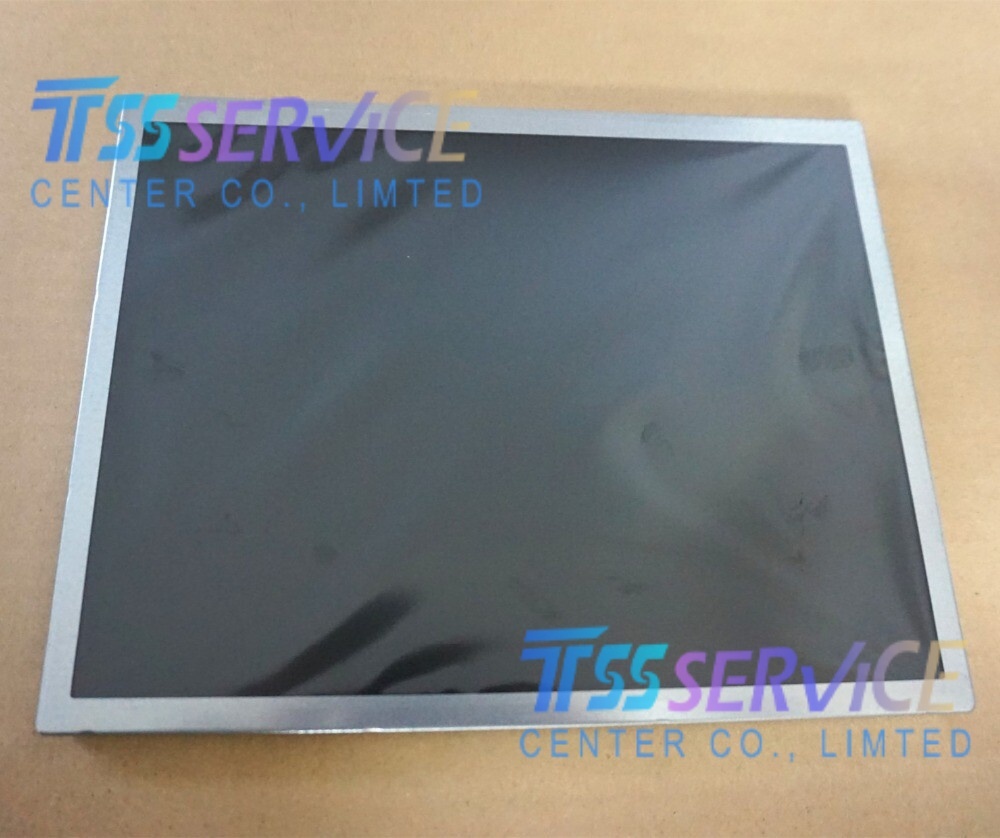

Mitsubishi AA104XG02 10.4" 1024×768 TFT-LCD Industrial Display Panel

Name: Mitsubishi AA104XG02 10.4" 1024×768 TFT-LCD Industrial Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA104XG02
Price: 295 USD
Availability: InStock

SKU: AA104XG02

Model: AA104XG02
Brand: Mitsubishi
Size: 10.4 inches
Panel Type: a-Si TFT-LCD (IPS)
Resolution: 1024 × 768 (XGA), 123PPI

0.0 (0 Reviews)

0 Sold

~~$300.00~~ $295.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi AA104XG02 10.4" 1024×768 TFT-LCD Industrial Display Panel

Parameter	Details
Model	AA104XG02
Brand	Mitsubishi
Size	10.4 inches
Panel Type	a-Si TFT-LCD
Resolution	1024 × 768 (XGA), 123PPI
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85/85/85/85 (CR≥10)
Display Colors	262k/16.7m, 50% NTSC
Display Area	210.4 × 157.8 mm
Outline Size	230 × 180.2 × 10 mm
Backlight	WLED, 100,000 hours, with driver
Interface	LVDS (1 ch 6/8-bit), 20 pins
Operating Temperature	-30°C ~ +80°C
Storage Temperature	-30°C ~ +80°C
Surface Treatment	Antiglare, Hard coating (3H)
Weight	450g (Typ.)

Applications

Industrial HMI & Control Panels: Factory automation, PLC, CNC machinery, robotic terminals.
Outdoor & Kiosk Systems: Information terminals, ticket machines, outdoor monitoring (high brightness & wide temp).
Medical Equipment: Diagnostic devices, patient monitors, medical instrumentation.
Transportation: Railway, marine, heavy-duty vehicle displays (vibration & temperature resistance).
Military & Rugged Systems: Defense terminals, harsh-environment control interfaces.
