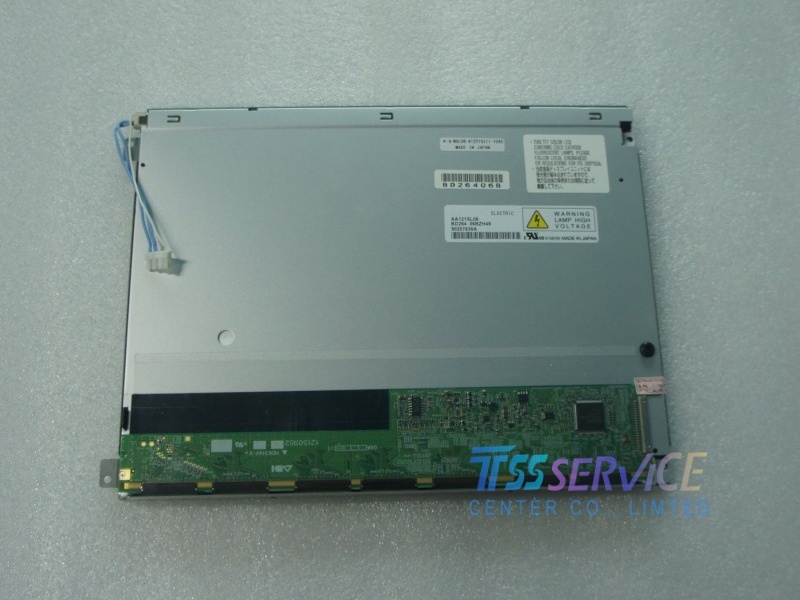

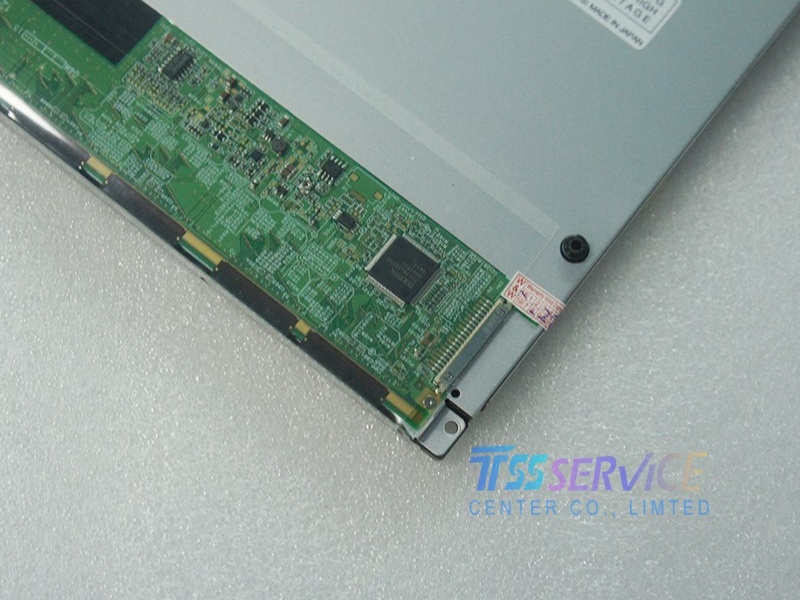

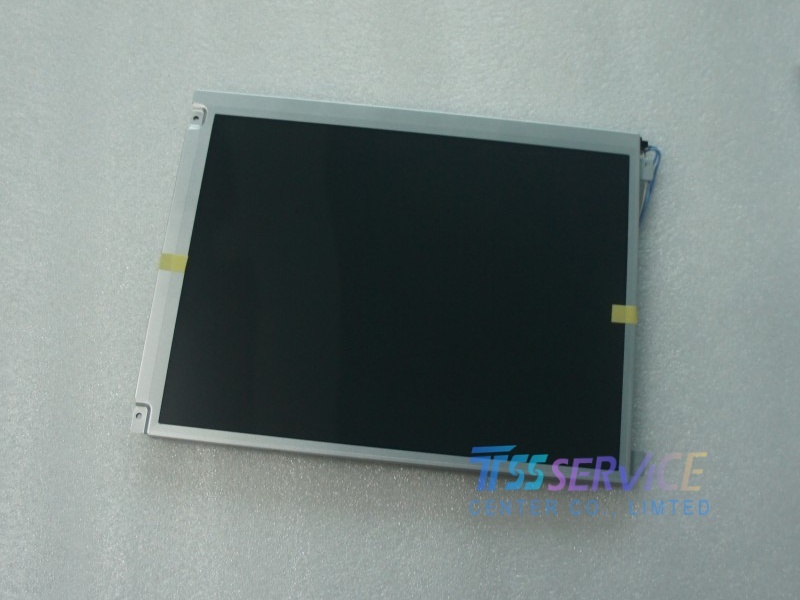

12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08

SKU: AA121SL08

1,Condition: New,Grade A

2,Item: AA121SL08 12.1 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$80.00 $75.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • a-Si TFT-LCD Panel 12.1" 800*600 for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • a-Si TFT-LCD Panel 12.1" 800*600 for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
1/1
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • a-Si TFT-LCD Panel 12.1" 800*600 for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • 12.1" 800*600 a-Si TFT-LCD for Mitsubishi AA121SL08
  • Description
The AA121SL08 is a 12.1-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module manufactured by Mitsubishi Electric. This industrial-grade display module integrates an LCD panel, driver ICs, control circuit, and backlight unit, designed specifically for demanding industrial environments
Brand Mitsubishi
Model P/N AA121SL08
Compatibility 1 Compatible
Diagonal Size 12.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA, 82 PPI
Pixel Format RGB Vertical Stripe
Active Area 246(W) × 184.5(H) mm
Bezel Opening 249.0(W) × 187.5(H) mm
Outline (mm) 280 × 210 × 12.5 (H×V×D)
Surface Treatment Hard coating (2H), Antireflection
Luminance 400 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (TM)
Viewing Angle 60/60/45/75 (Typ.)(CR≥10)
Response Time 6/19 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Display Mode TN, Normally White, Transmissive
Color Depth 262K/16.7M, 40% NTSC
Backlight 2 pcs CCFL, 50K hours, No Driver
Weight 720g (Typ.)
Refresh Rate 60Hz
Touch Screen Without
Signal Type LVDS (1 ch, 6/8-bit), 20-pin Connector
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 80°C, Operating Temp.: -20 ~ 70°C

Applications

The AA121SL08 is designed for Standard Usage applications including:

  • Factory automation equipment

  • Industrial control systems

  • Test and measurement equipment

  • Communications equipment

  • Transportation equipment (automobiles, ships, trains) where operation is not directly influenced by the display

  • ATM terminals and self-service kiosks

  • Outdoor information terminals and advertising displays
