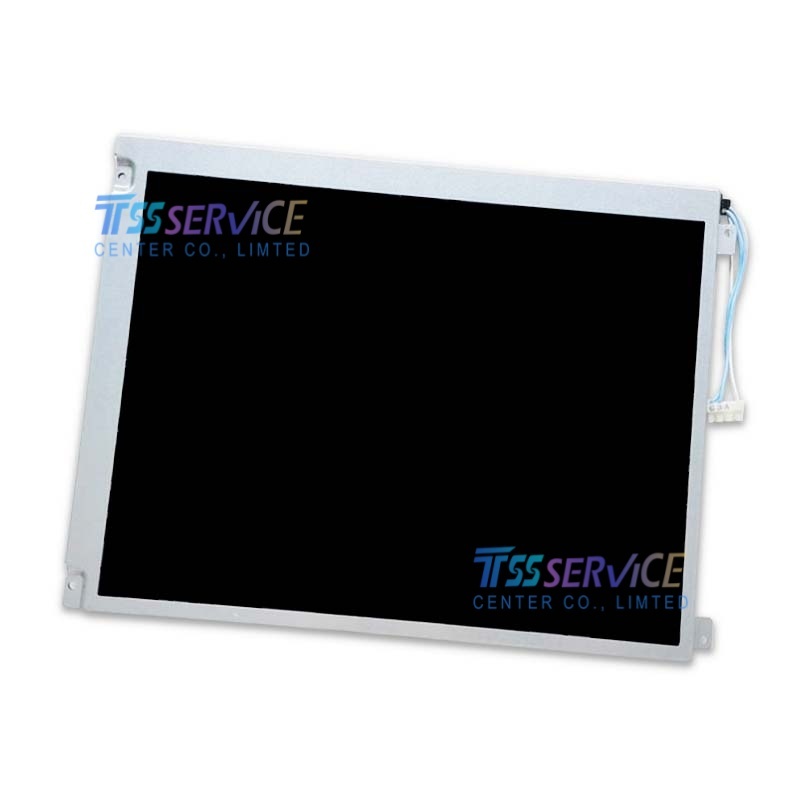

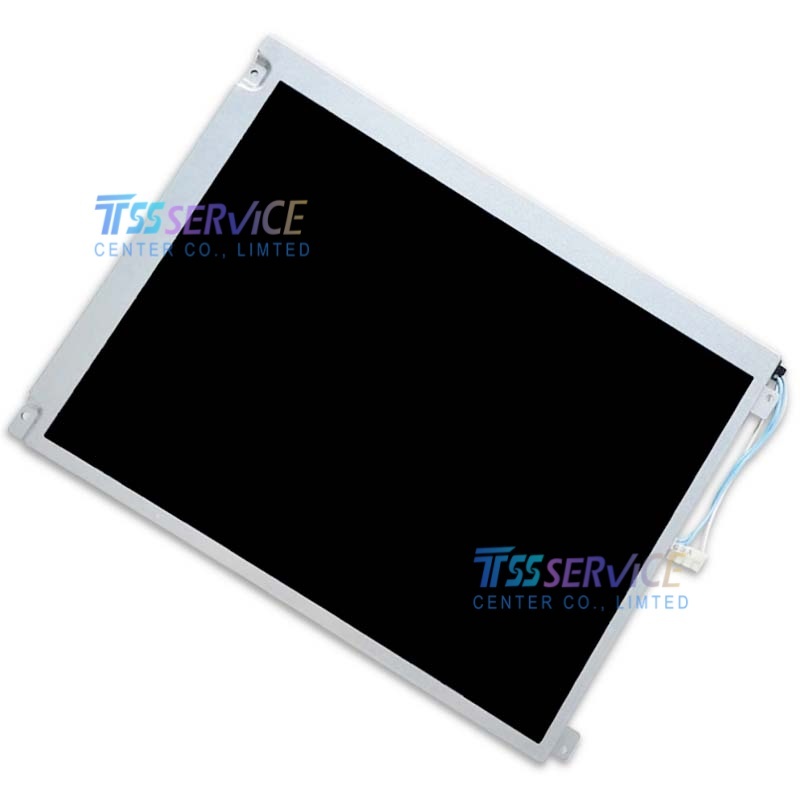

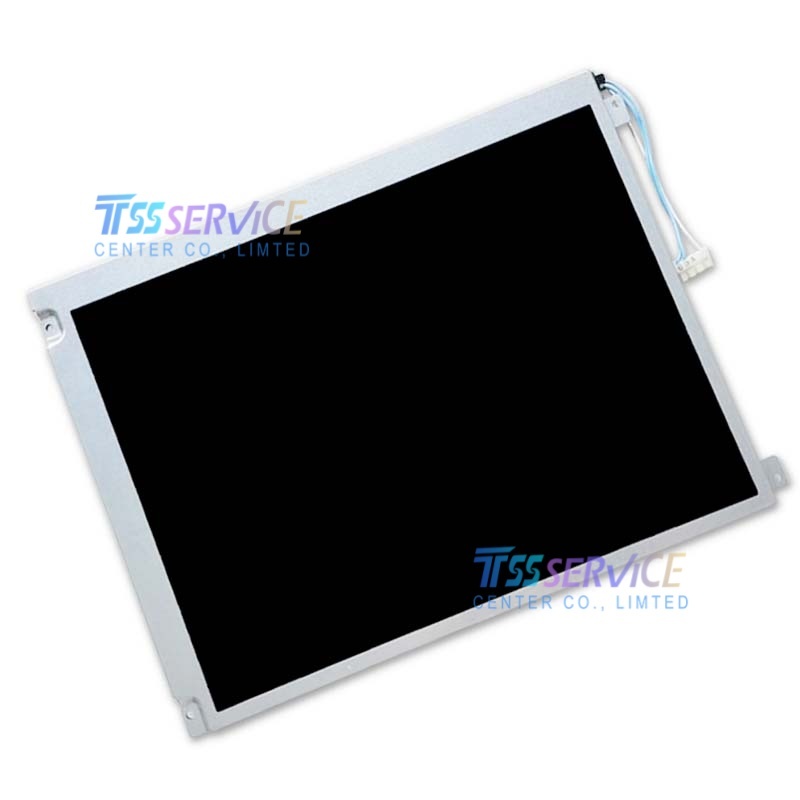

Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial

SKU: AA121SL22
Model: AA121SL22
Manufacturer: Mitsubishi Electric
Size: 12.1 inch
Resolution: 800×600 (SVGA), 82 PPI
Display Type:  a-Si TFT-LCD, Transmissive, Normally White
0.0 (0 Reviews)
0 Sold
$88.00 $85.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
1/1
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
  • Description
Mitsubishi 12.1 INCH 800×600 LCD Panel Display AA121SL22 For Industrial
Parameter Details
Model AA121SL22
Manufacturer Mitsubishi Electric
Size 12.1 inch
Resolution 800×600 (SVGA), 82 PPI
Display Type a-Si TFT-LCD, Transmissive, Normally White
Brightness 400 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.)
Viewing Angle 65°/65°/45°/75° (L/R/U/D, CR≥10)
Color Depth 262K Colors (6-bit RGB)
Backlight 2×CCFL, edge-lit, lifespan ≥50,000 hrs
Interface TTL (1ch 6-bit), 41 pins, 3.3V
Power Consumption 14.4 W (Typ.)
Operating Temp -20°C ~ +60°C
Storage Temp -20°C ~ +70°C
Outline Dimension 280 × 210 × 12.5 mm (W×H×D, Typ./Max.)
Active Area 246 × 184.5 mm
Pixel Pitch 0.3075 × 0.3075 mm
Surface Antiglare (Haze 10%), hard coating (3H)
Weight Approx. 720 g
Features Wide temperature, high brightness, replaceable lamp, RoHS compliant

Applications

  • Industrial Control HMI: Factory automation, CNC machines, PLC panels, and industrial workstations needing 12.1-inch SVGA displays.
  • Medical Equipment: Diagnostic devices, patient monitors, and lab instruments requiring stable color and wide-temperature operation.
  • Test & Measurement: Oscilloscopes, spectrum analyzers, and industrial meters for clear data visualization.
  • Rugged & Outdoor Displays: Industrial vehicles, marine consoles, and outdoor monitoring terminals (antiglare surface reduces reflections).
  • Retail & Kiosks: Self-service kiosks, POS systems, and information displays in harsh environments.
