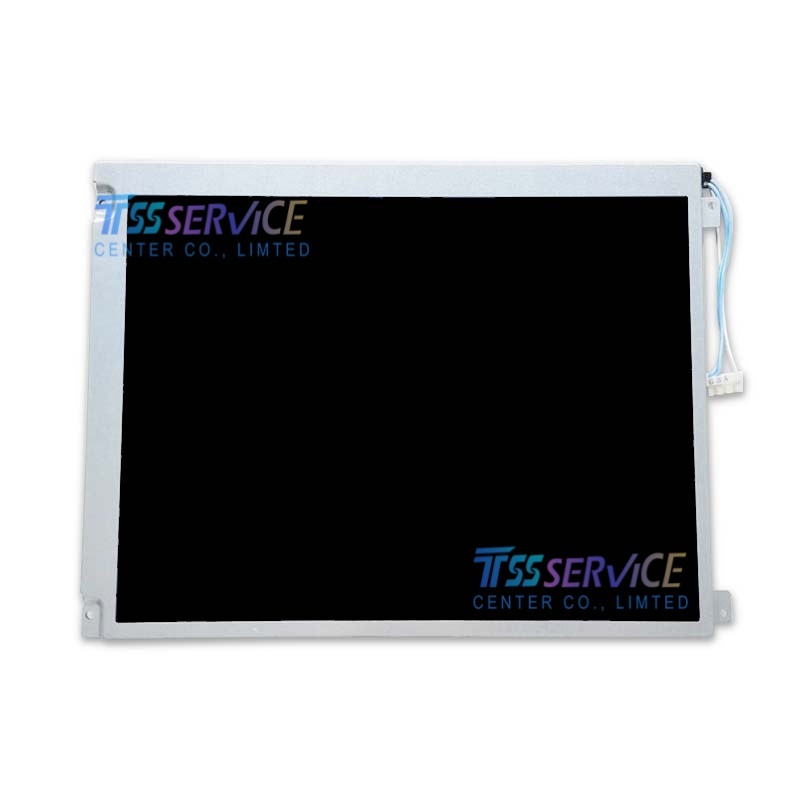

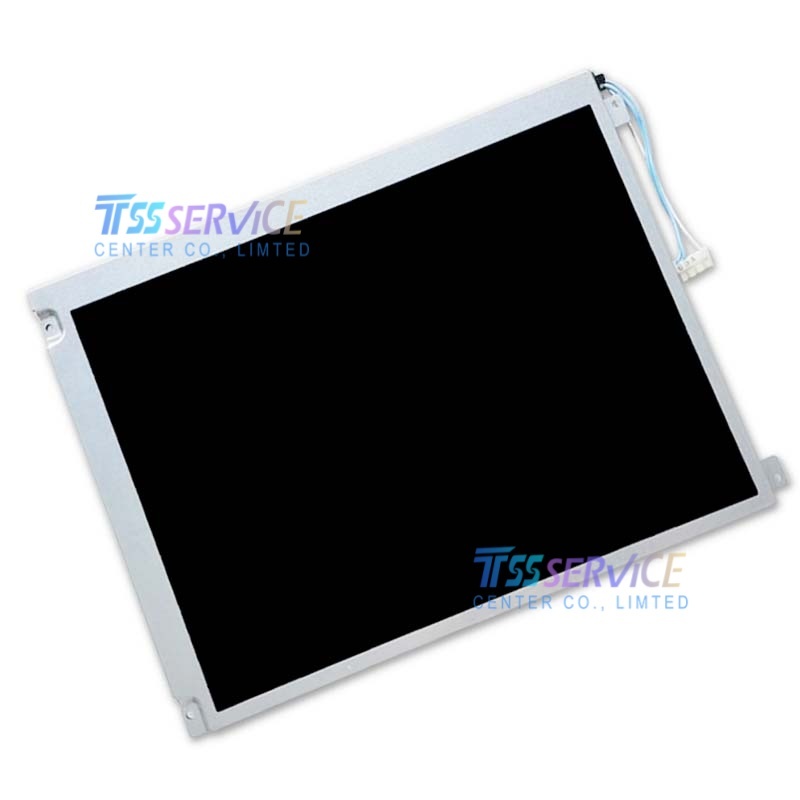

Mitsubishi AA121ST01 12.1" SVGA IPS TFT-LCD Industrial Display Panel

Name: Mitsubishi AA121ST01 12.1" SVGA IPS TFT-LCD Industrial Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA121ST01
Price: 184 USD
Availability: InStock

SKU: AA121ST01

Model: AA121ST01
Brand: Mitsubishi
Size: 12.1 inches
Panel Type: a-Si TFT-LCD (IPS)
Resolution: 800 × 600 (SVGA), 82PPI

0.0 (0 Reviews)

0 Sold

~~$186.00~~ $184.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi AA121ST01 12.1" SVGA IPS TFT-LCD Industrial Display Panel

Parameter	Details
Model	AA121ST01
Brand	Mitsubishi
Size	12.1 inches
Panel Type	a-Si TFT-LCD (IPS)
Resolution	800 × 600 (SVGA), 82PPI
Brightness	600 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Viewing Angle	85/85/85/85 (CR≥10)
Display Colors	262K/16.7M, 72% NTSC
Display Area	246 × 184.5 mm
Outline Size	260.5 × 203 × 10.2 mm
Backlight	WLED, 100,000 hours, with driver
Interface	LVDS (1 ch 6/8-bit), 20 pins
Operating Temperature	-30°C ~ +80°C
Storage Temperature	-30°C ~ +80°C
Display Mode	IPS, Normally Black, Transmissive
Surface Treatment	Antiglare, Hard coating (3H)
Weight	600g (Typ.)

Applications

Industrial HMI & Control Panels: Factory automation, PLC, CNC machinery, robotic terminals.
Outdoor & Kiosk Systems: Information terminals, ticket machines, outdoor monitoring (high brightness & wide temp).
Medical Equipment: Diagnostic devices, patient monitors, medical instrumentation.
Transportation: Railway, marine, heavy-duty vehicle displays (vibration & temperature resistance).
Military & Rugged Systems: Defense terminals, harsh-environment control interfaces.
