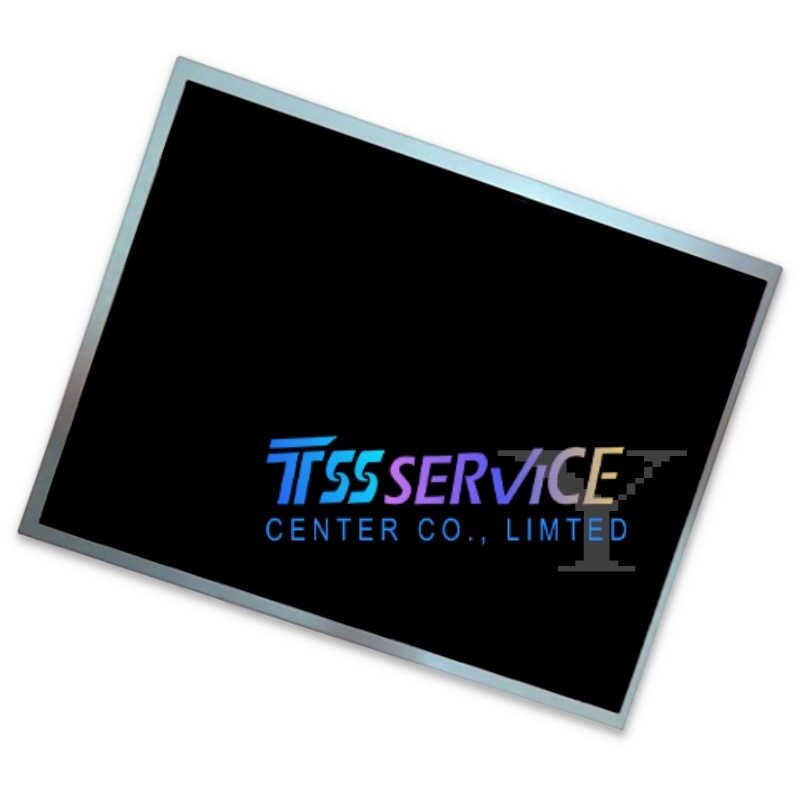

Mitsubishi AA121TG01 12.1 inch 1280×800 LCD Display Panel Module for Industrial

Name: Mitsubishi AA121TG01 12.1 inch 1280×800 LCD Display Panel Module for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA121TG01
Price: 171 USD
Availability: InStock

SKU: AA121TG01

Model: AA121TG01
Panel Size: 12.1 Inch
Panel Type: a-Si TFT-LCD, LCM, TN Normally White Transmissive
Resolution:1280(RGB)×800 (WXGA), 16:10

0.0 (0 Reviews)

0 Sold

~~$173.00~~ $171.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi AA121TG01 12.1 inch 1280×800 LCD Display Panel Module for Industrial

Parameter	Specification
Brand	Mitsubishi
Model	AA121TG01
Panel Size	12.1 Inch
Panel Type	a-Si TFT-LCD, LCM, TN Normally White Transmissive
Resolution	1280(RGB)×800 (WXGA), 16:10
Active Display Area	261.12 × 163.2 mm
Outline Dimensions	283(W) × 185.1(H) mm
Pixel Pitch	0.204 × 0.204 mm
Brightness	450 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.)
Viewing Angle	80/80/60/80 (L/R/U/D, CR≥10)
Color Depth	262K / 16.7M Colors, 72% NTSC
Backlight	WLED, Built-in Driver, 100,000 Hours Lifespan
Interface	LVDS 1ch 6/8-bit
Input Voltage	3.3V Typical
Net Weight	620g Typical
Operating Temperature	-40°C ~ +85°C (Ultra Wide Temp)
Storage Temperature	-40°C ~ +85°C
Touch Function	No Touch
Surface Treatment	Anti-glare Hard Coating
