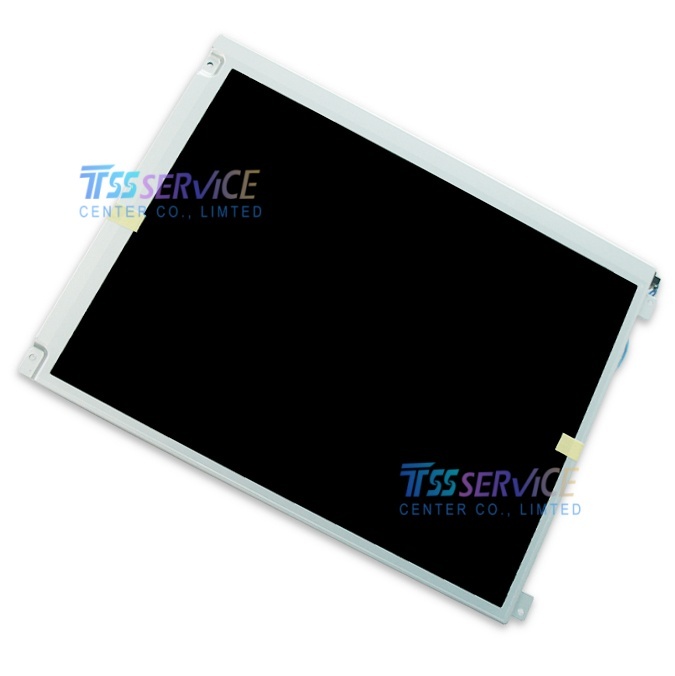

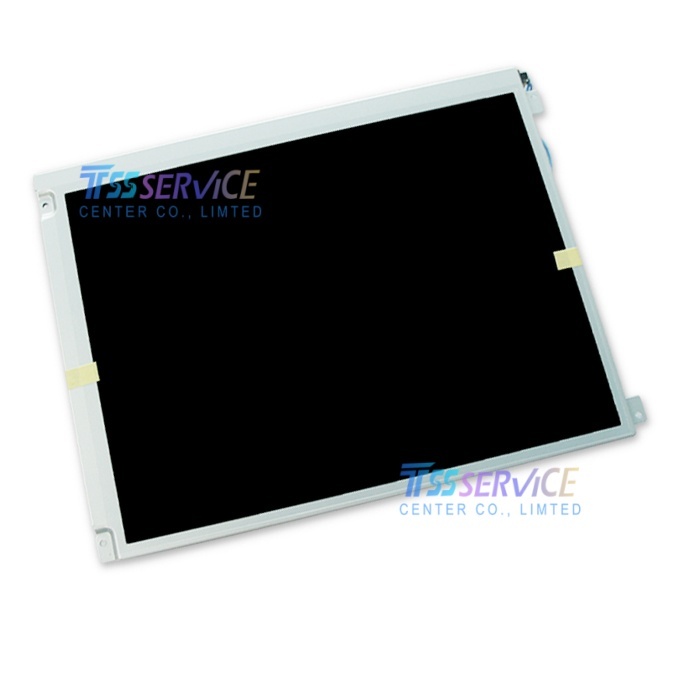

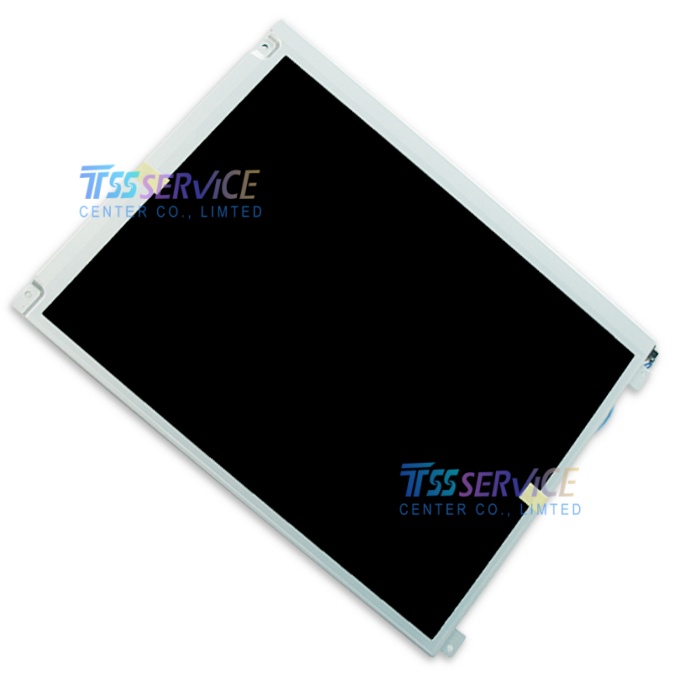

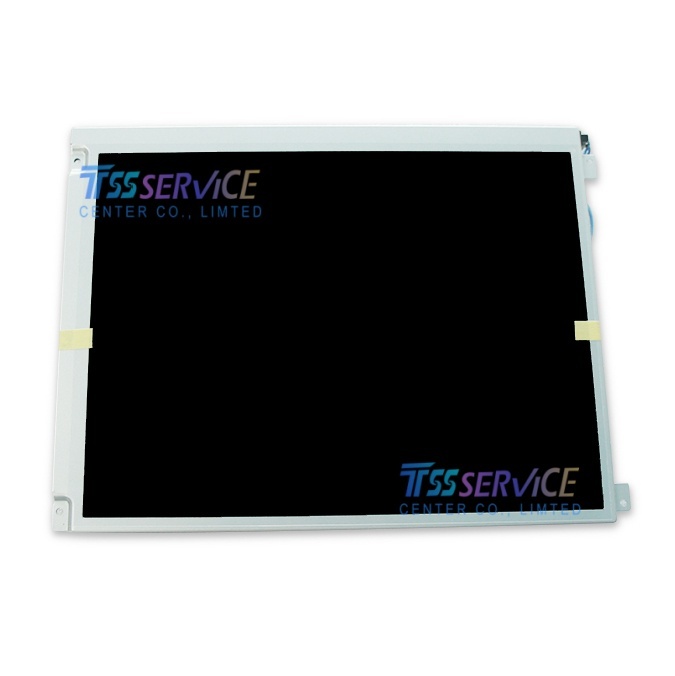

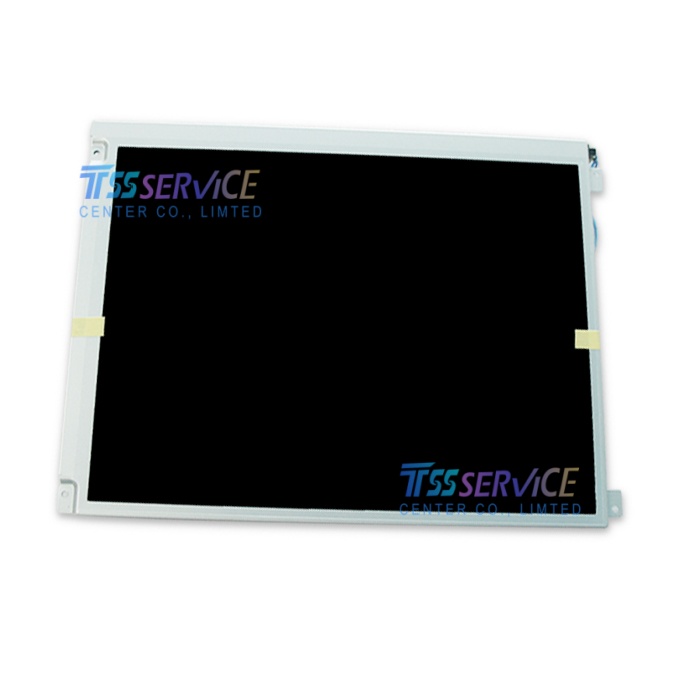

Mitsubishi AA121XH04 12.1 inch 1024×768 LCD panel Display For Industrial

Name: Mitsubishi AA121XH04 12.1 inch 1024×768 LCD panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA121XH04
Price: 87 USD
Availability: InStock

SKU: AA121XH04

Model P/N: AA121XH04
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 1024(RGB)×768, XGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $87.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi AA121XH04 12.1 inch 1024×768 LCD panel Display For Industrial

Item	Specification	Unit
Manufacturer	Mitsubishi Electric	–
Model	AA121XH04	–
Size	12.1 (Diagonal)	inch
Resolution	1024 × 768 (XGA, RGB Vertical Stripe)	dots
Aspect Ratio	4:3 (Landscape)	–
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive	–
Active Area	245.76 × 184.32	mm
Outline Dimensions	280.0 × 210.0 × 12.5	mm
Pixel Pitch	0.24 × 0.24	mm
Brightness	320 (Typ.)	cd/m²
Contrast Ratio	600:1 (Typ.)	–
Viewing Angle (L/R/U/D)	60/60/45/75 (CR≥10)	deg
Response Time (Tr/Td)	6 / 19 (Typ.)	ms
Backlight	2 × CCFL (Edge-lit, no driver)	–
Backlight Life	≥50,000	hrs
Interface	LVDS (1 ch, 6/8-bit selectable), 20-pin	–
Surface	Anti-Reflective, Hard coating (2H)	–
Weight	~720	g
Operating Temp.	-20 ~ +70	°C
Storage Temp.	-20 ~ +80	°C
Color Depth	262K / 16.7M (6-bit + Hi-FRC)	colors
NTSC Gamut	40%	–
RoHS	Compliant	–
