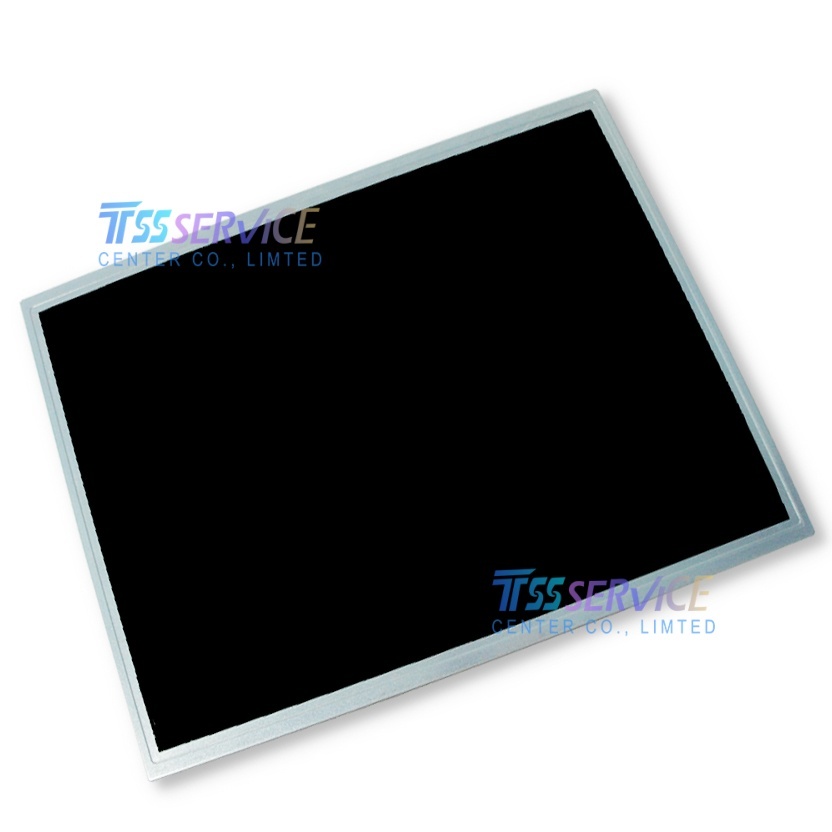

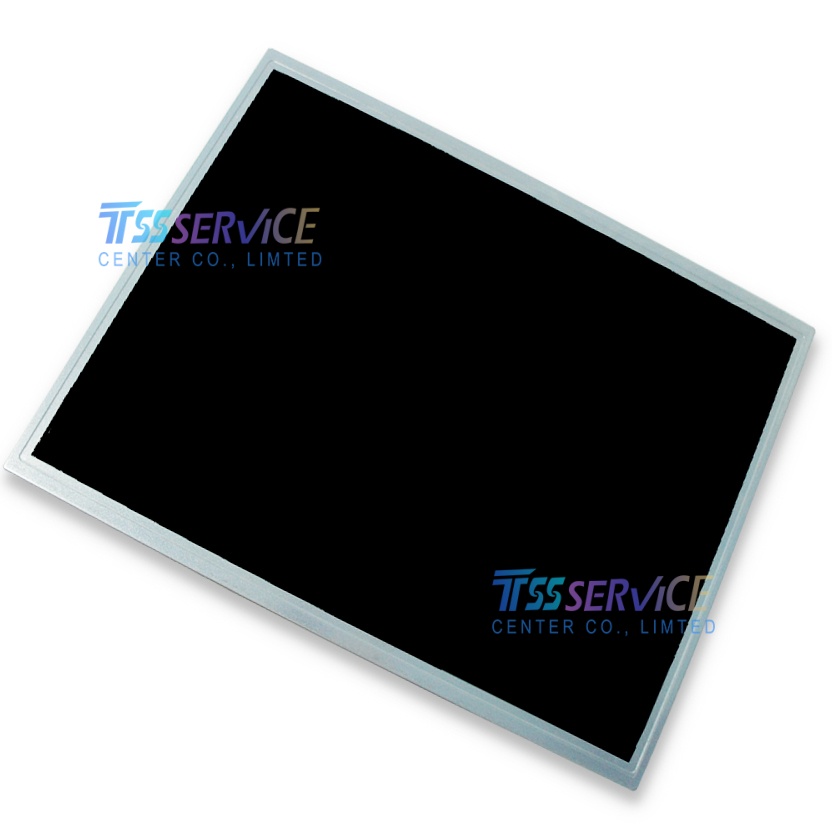

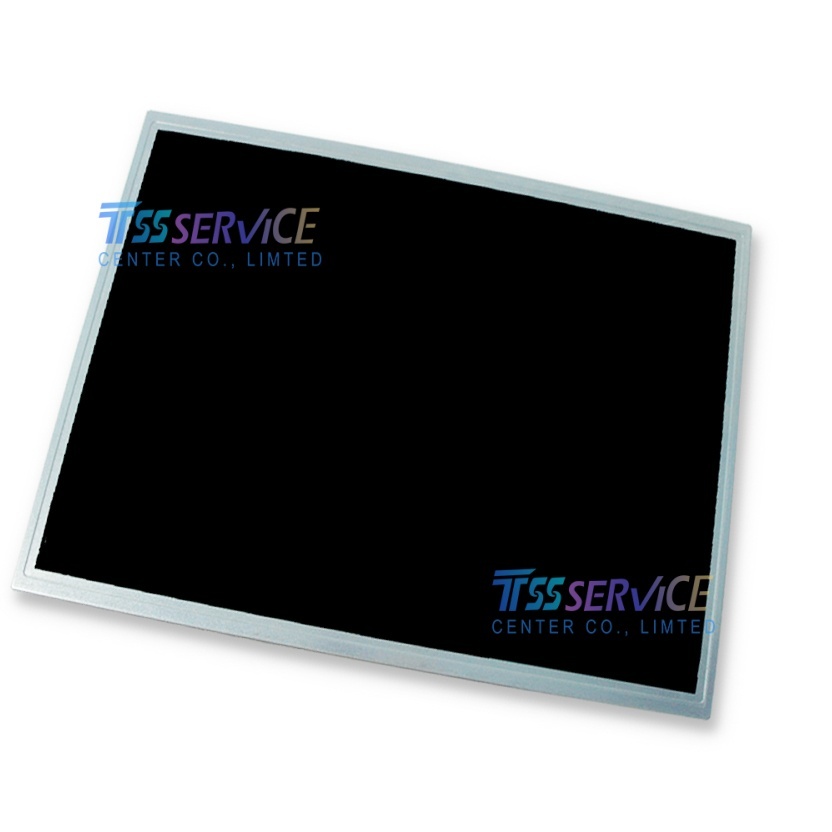

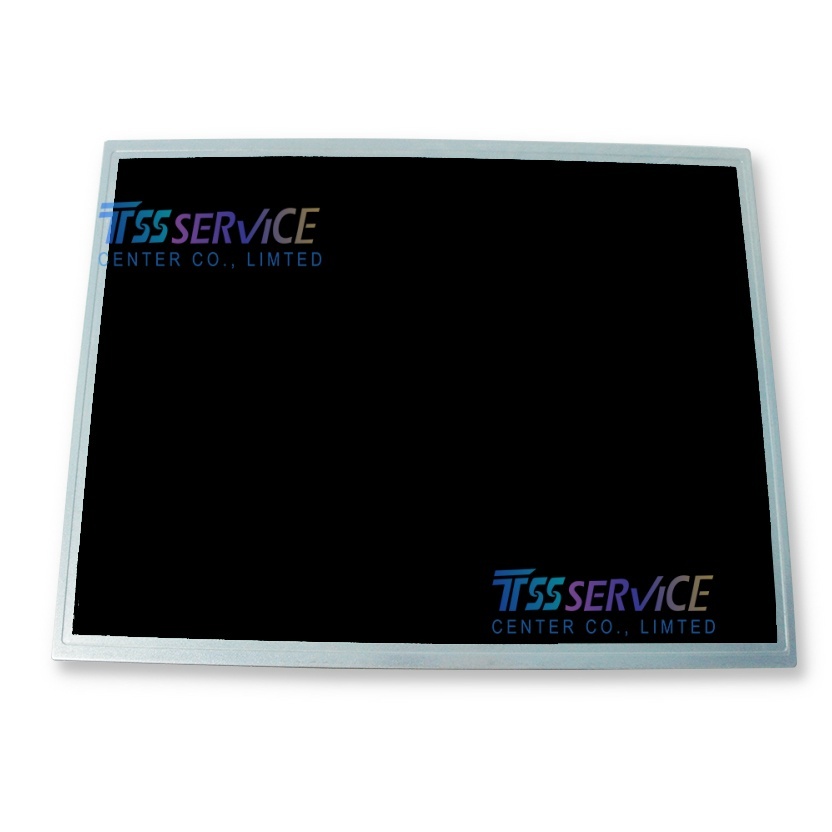

Mitsubishi AA150XN21 15 inch 1024×768 LCD panel Display For Industrial

Name: Mitsubishi AA150XN21 15 inch 1024×768 LCD panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AA150XN21
Price: 87 USD
Availability: InStock

SKU: AA150XN21

Model P/N: AA150XN21
Diagonal Size: 15"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 1024(RGB)×768, 4:3, XGA
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $87.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Mitsubishi AA150XN21 15 inch 1024×768 LCD panel Display For Industrial

Item	Specification	Unit
Manufacturer	Mitsubishi Electric	–
Model	AA150XN21	–
Diagonal Size	15.0	inch
Resolution	1024 × 768 (XGA)	pixels
Aspect Ratio	4:3	–
Display Type	a‑Si TFT‑LCD, TN, Normally White, Transmissive	–
Active Area	304.13 × 228.10	mm
Pixel Pitch	0.297 × 0.297	mm
Brightness	350 (Typ.)	cd/m²
Contrast Ratio	800:1 (Typ.)	–
Viewing Angle (L/R/U/D)	70/70/50/70 (CR≥10)	deg
Response Time (Tr+Td)	10 (Typ.)	ms
Backlight	CCFL, Edge‑type	–
Backlight Lifetime	50,000 (Min.)	hrs
Interface	LVDS (1 channel, 6/8‑bit selectable)	–
Color Depth	262K / 16.7M (6‑bit + Hi‑FRC)	colors
Surface Treatment	Antiglare, Hard Coating	–
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
RoHS	Compliant	–

Typical Applications

Industrial HMIs, factory automation systems, CNC machinery, and industrial control panels
Medical diagnostic equipment, patient monitors, and clinical testing devices
POS terminals, ATMs, self‑service kiosks, and information display systems
Transportation displays for railway, marine, and heavy‑duty vehicles
Test and measurement instruments, industrial workstations, and embedded systems
