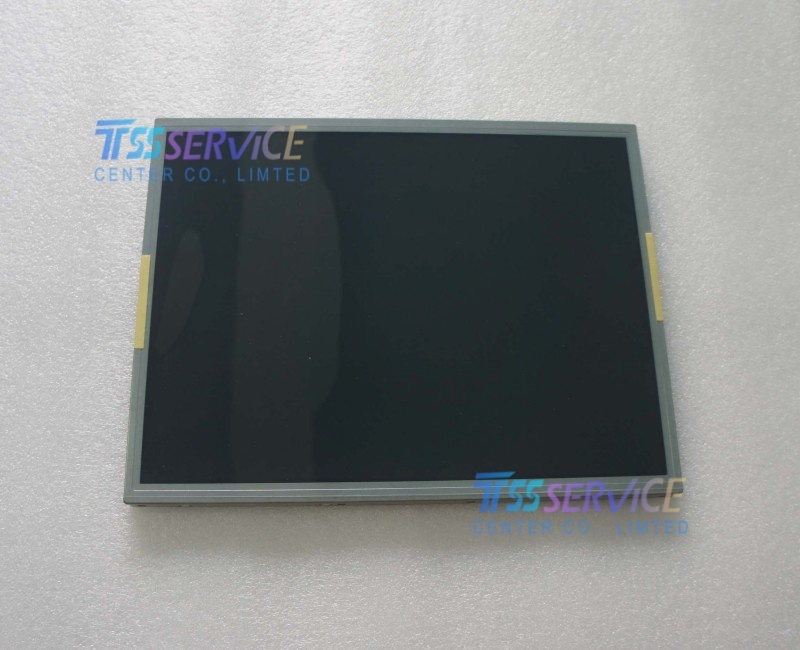

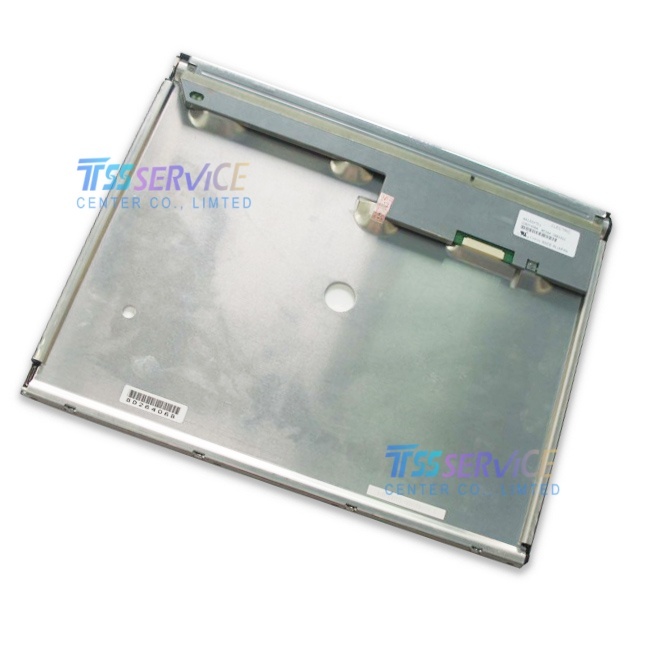

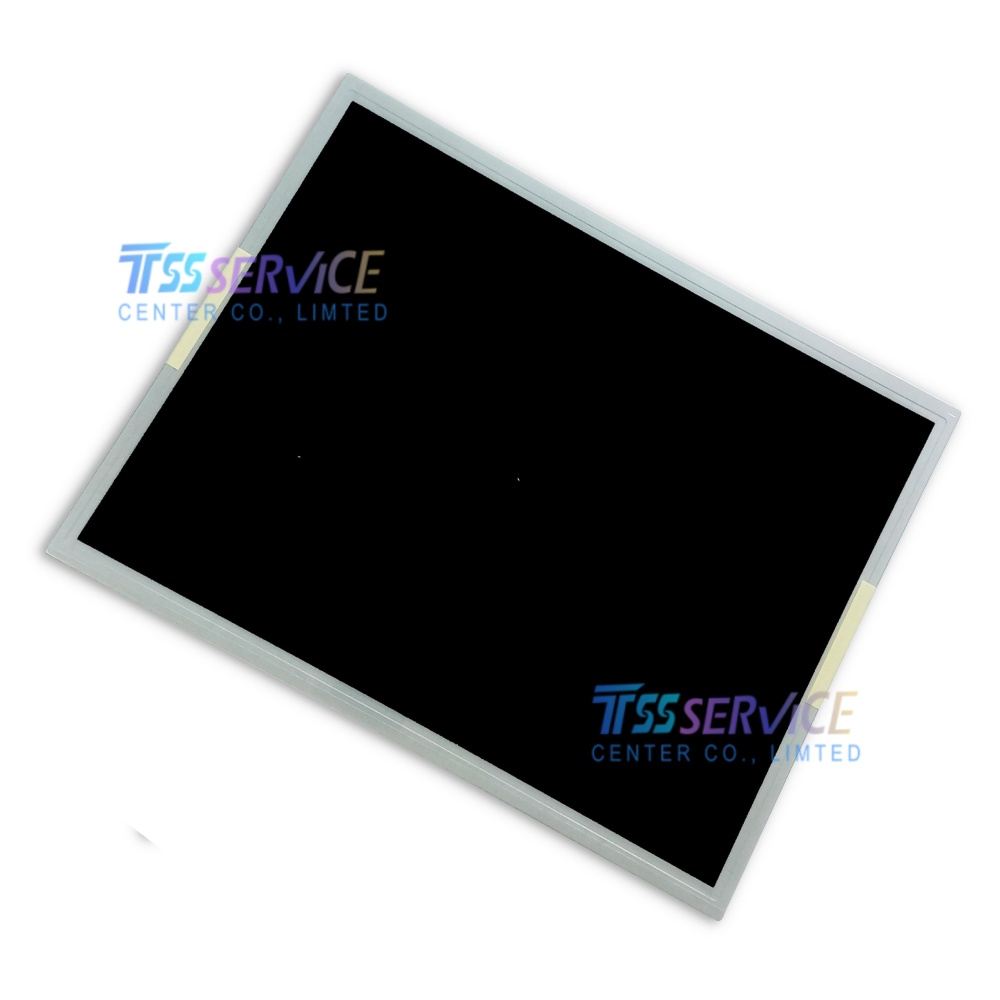

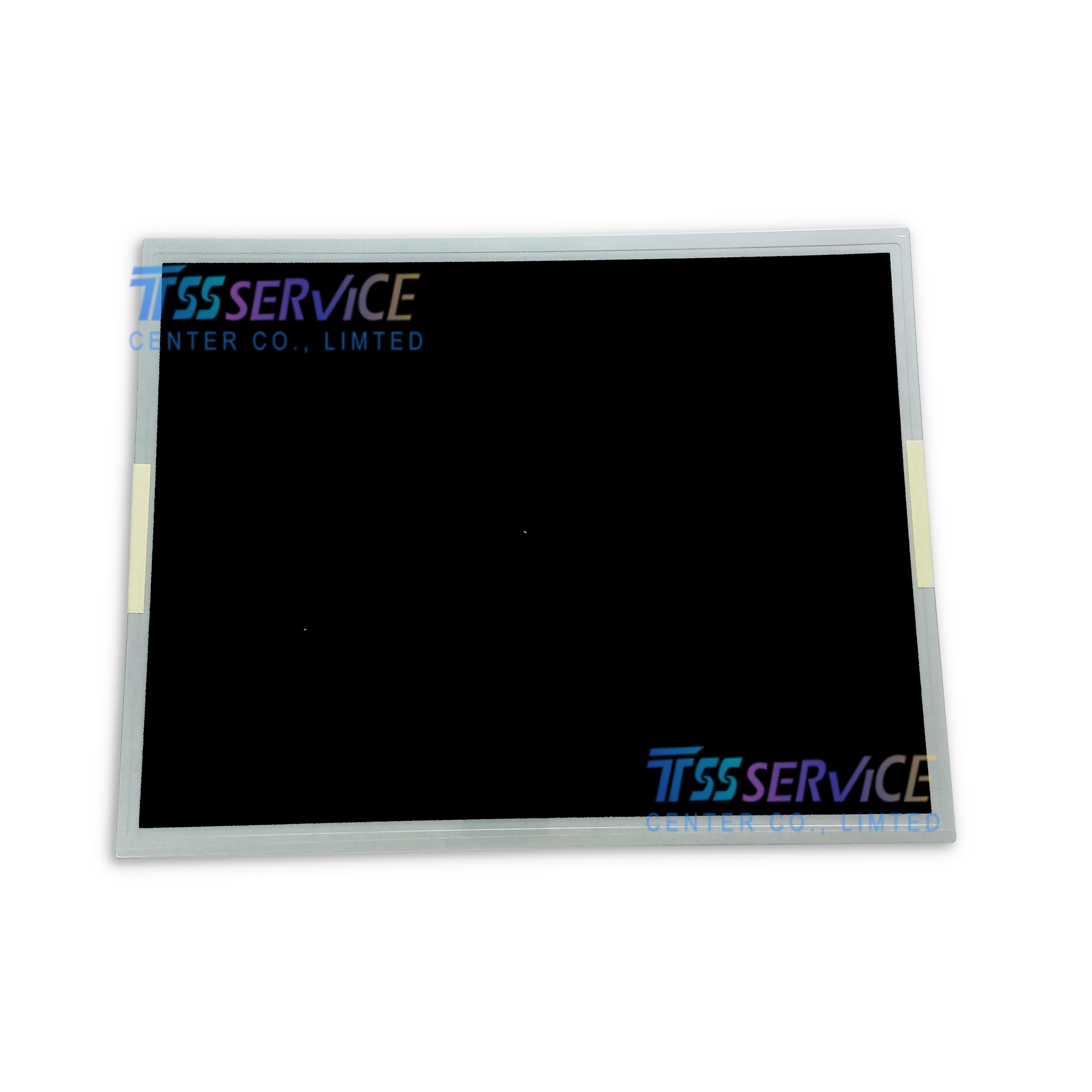

Part no : AA150XT01-T1
Brand : Mitsubishi
INCH : 15INCH
Resolution 1024×768
LCD Panel for Industrial Machine
| Parameter | Specification |
|---|---|
| Model Number | AA150XT01-T1 |
| Manufacturer | Mitsubishi Electric |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Screen Size | 15.0 inches (Diagonal) |
| Resolution | 1024 (RGB) × 768 pixels (XGA) |
| Pixel Pitch | 0.297 mm (H) × 0.297 mm (V) |
| Active Area | 304.128 mm (W) × 228.096 mm (H) |
| Module Dimensions | 326.0 mm (W) × 255.0 mm (H) × 16.6 mm (D) (Typical) |
| Display Colors | 262K / 16.7M (6-bit / 8-bit depending on driver) |
| Brightness | 800 cd/m² (Typical) |
| Contrast Ratio | 700:1 (Typical) |
| Backlight Type | White LED (7S4P configuration) |
| Backlight Life | ~100,000 hours |
| Interface | LVDS (Low Voltage Differential Signaling) |
| Touch Panel | None (Non-touch) |
| Operating Temperature | -20°C to +70°C (Wide Temperature Range) |
| Storage Temperature | -30°C to +80°C |
| RoHS Compliance | Yes |
