| Parameter | Specification |
|---|---|
| Model Number | AGP3501-T1-24V |
| Display Type | TFT Color LCD with LED Backlight |
| Screen Size | 10.4 inches |
| Resolution | 640 × 480 pixels (VGA) |

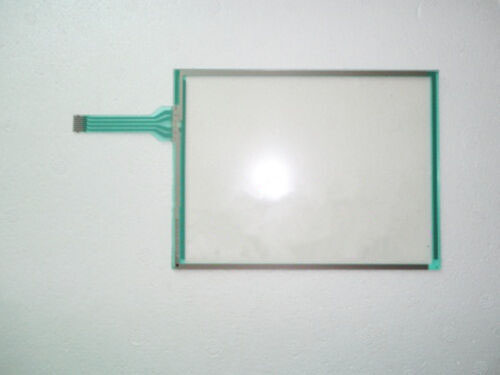

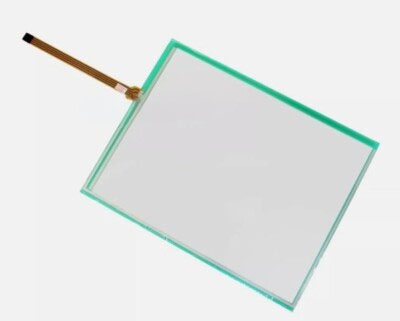

| Touch Panel | Resistive touch screen (analog) |
| Display Colors | 65,536 colors (16-bit) |
| Communication Interfaces | - Ethernet (10/100 Mbps) - RS-232C - RS-422/485 |
| Supported Protocols | MELSEC (Q/L/FX/A), Modbus TCP/RTU, CC-Link IE Field Basic, Siemens S7, Omron FINS, Allen-Bradley DF1/CIP, MQTT (via GT SoftGOT or advanced setup) |
| Programming Software | GT Works3 (version 1.220J or later recommended) |
| Memory | Built-in flash memory (～16 MB for screen data); supports SD card (up to 32 GB) |
| USB Port | USB Type-A (for keyboard, mouse, USB storage, firmware update) |
| SD Card Slot | Yes (hot-swappable; used for backup, logging, screen transfer) |
| Real-Time Clock | Built-in (with supercapacitor backup; no battery required) |
| Power Supply | DC 24 V ±10% (as indicated by “-24V” suffix) |
| Power Consumption | Approx. 25 W |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Front Panel Protection | IP65 / NEMA 4X (dust-tight and protected against water jets) |
| Dimensions (W × H × D) | 272 mm × 218 mm × 59 mm |
| Panel Cutout Required | 258 mm × 204 mm |
| Weight | Approx. 2.0 kg |
| Compliance | CE, UL/cUL, KC, RoHS, EAC |
| Mounting | Panel mount (uses optional bracket AST3501, sold separately or included) |
