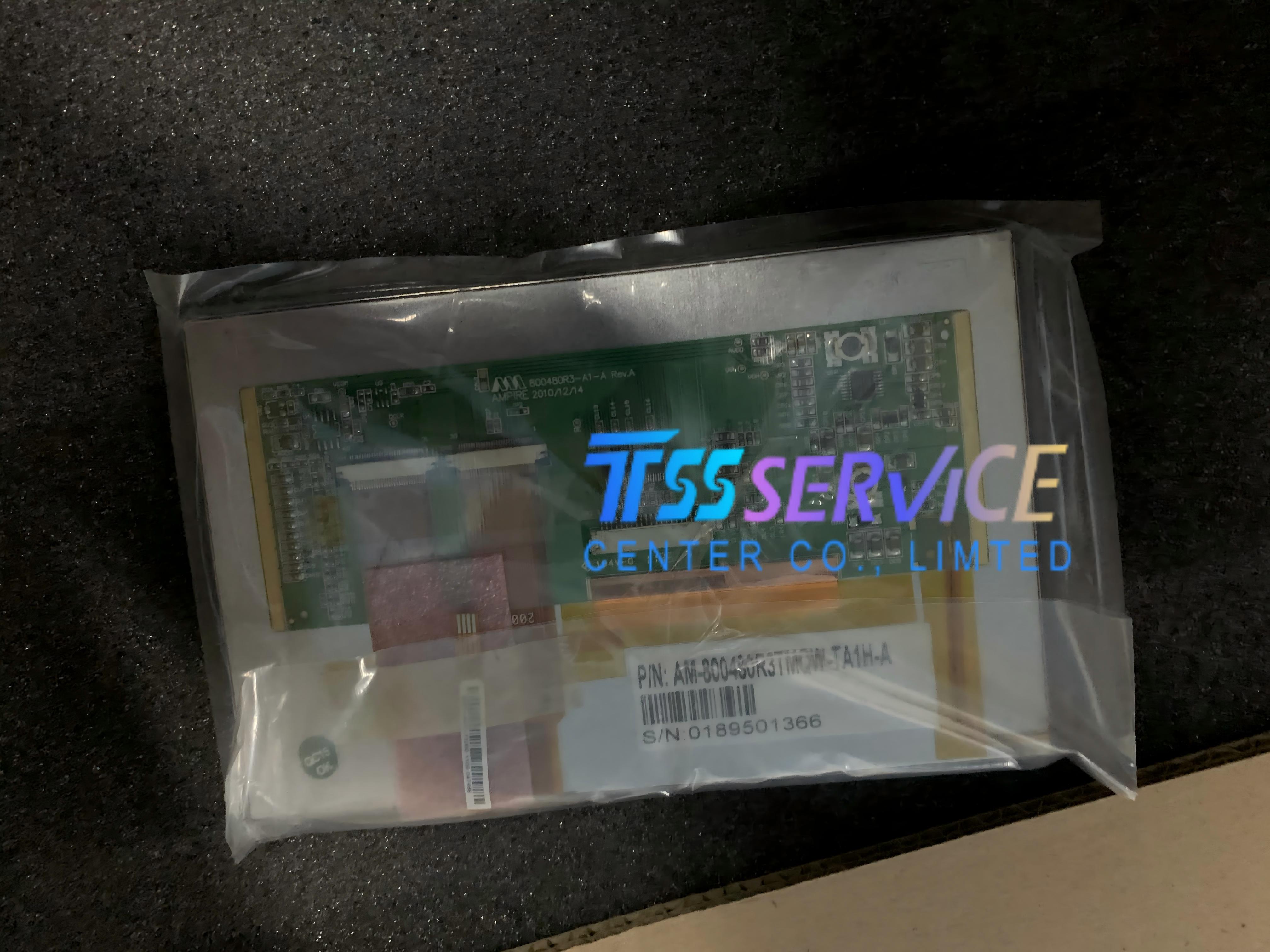

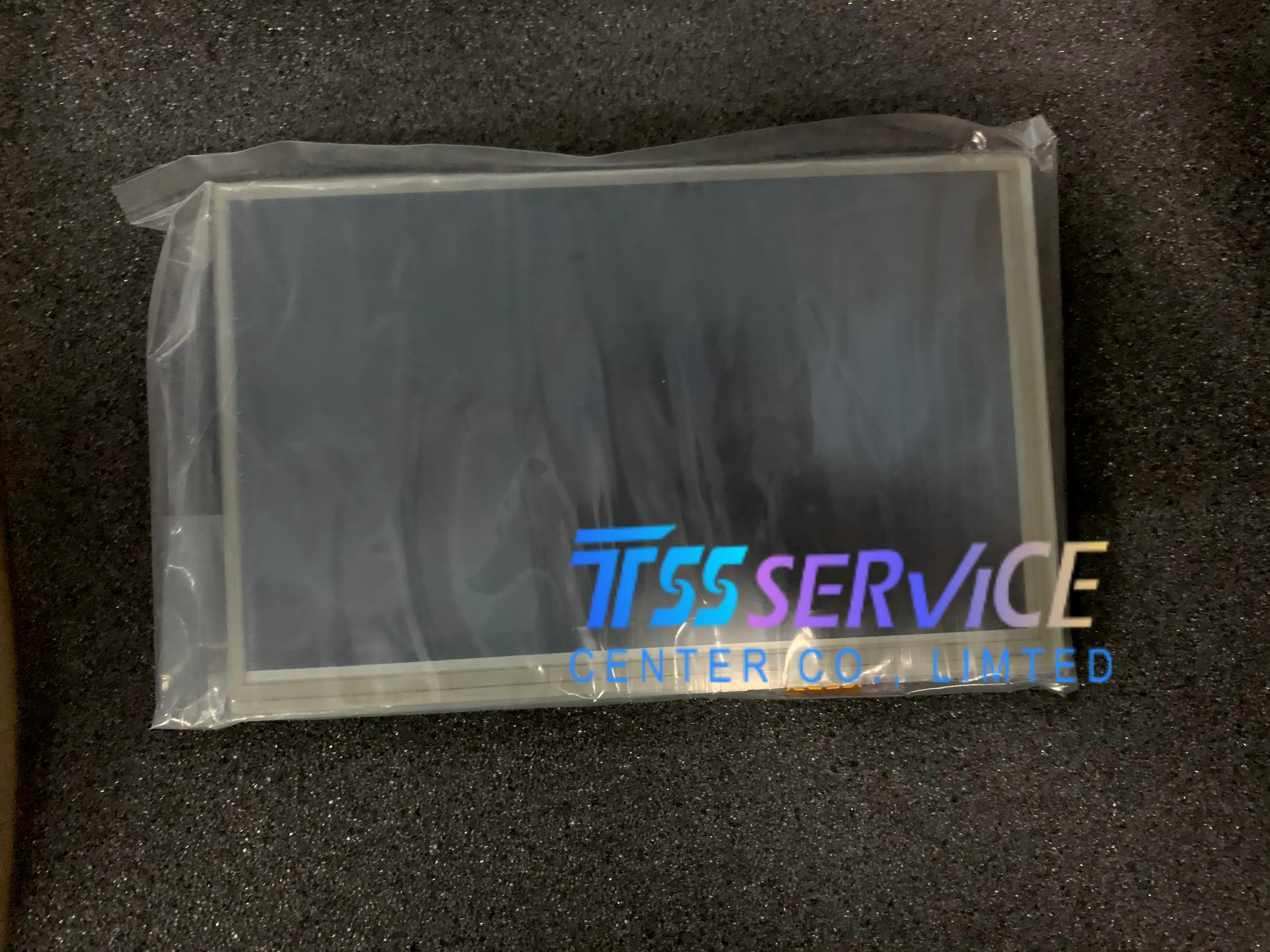

The AM-800480R3TMQW-TA1H-A is a 7.0-inch WVGA TFT-LCD display module manufactured by AMPIRE (Ampire Co., Ltd.), a Taiwan-based company established in 1998 that specializes in small to medium-sized LCD modules for industrial applications . This model is specifically engineered for industrial equipment, human-machine interfaces (HMIs), and embedded systems requiring a reliable display solution with integrated touch functionality .
| Parameter |
Specification |
| Brand |
AMPIRE |
| Model |
AM-800480R3TMQW-TA1H-A |
| Diagonal Size |
7.0 inch |
| Type |
a-Si TFT-LCD, LCM |
| Pixel Number |
800(RGB) × 480, WVGA, 15:9 |
| Dot Layout |
RGB Vertical Stripe |
| Active Area |
152.4(H) × 91.44(V) mm |
| Physical Size |
165.4(H) × 105.72(V) × 8.15(D) mm |
| Luminance |
400 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| View Direction |
12 o'clock |
| Response Time |
5 / 11 (Typ.) (Tr / Td) ms |
| Viewing Angle |
70 / 70 / 70 / 60 (Typ.) (CR ≥ 10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K |
| Touch Panel |
4-wire Resistive Touch |
| Power Usage |
2.6W (Max.) |
| Light Source |
3S10P WLED, 50K hrs, With LED Driver |
| Frame Rate |
60Hz |
| Interface Type |
LVDS (1 ch, 6-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Applications
The AM-800480R3TMQW-TA1H-A is optimized for industrial and embedded applications requiring reliable performance and integrated touch functionality:
