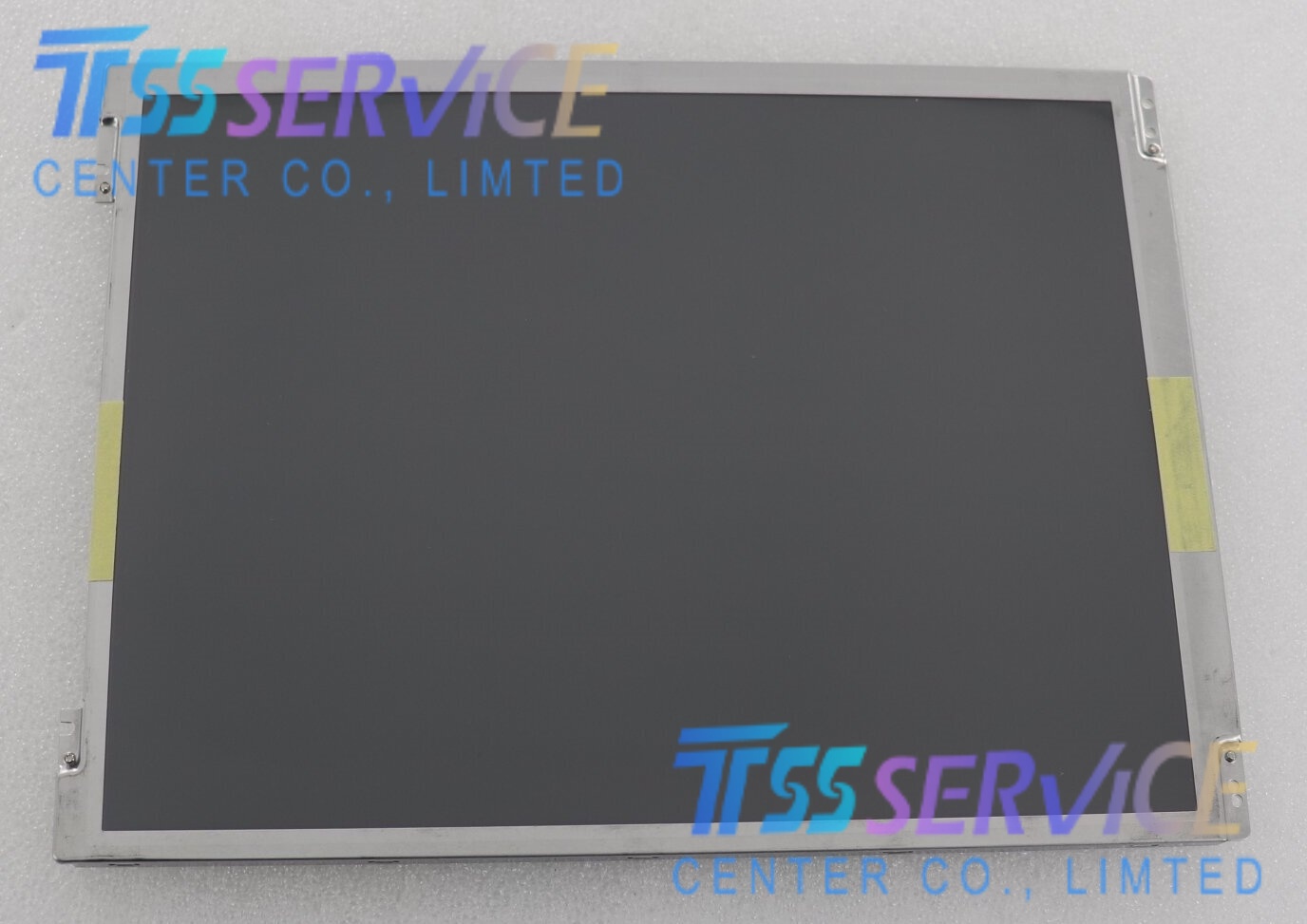

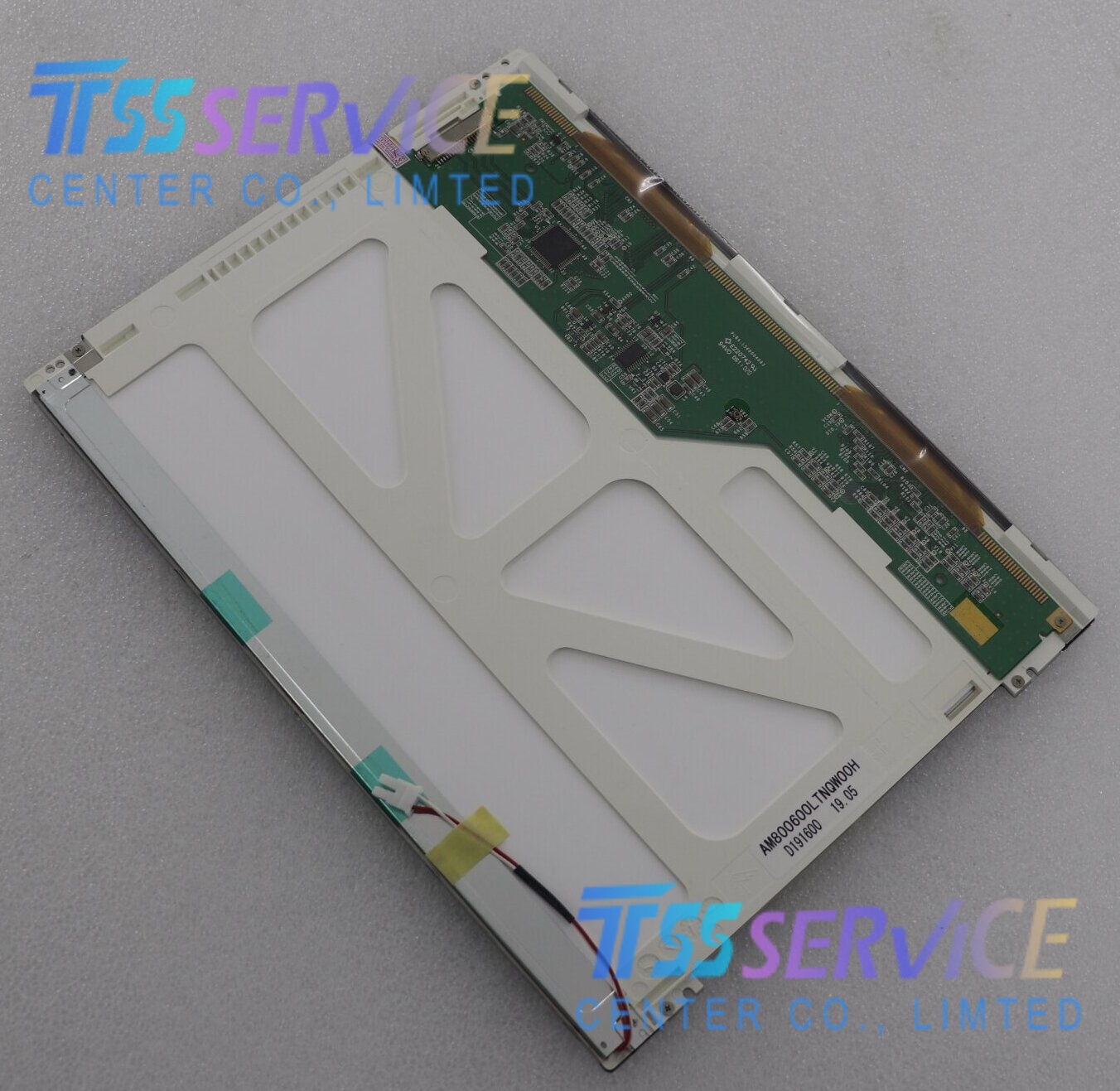

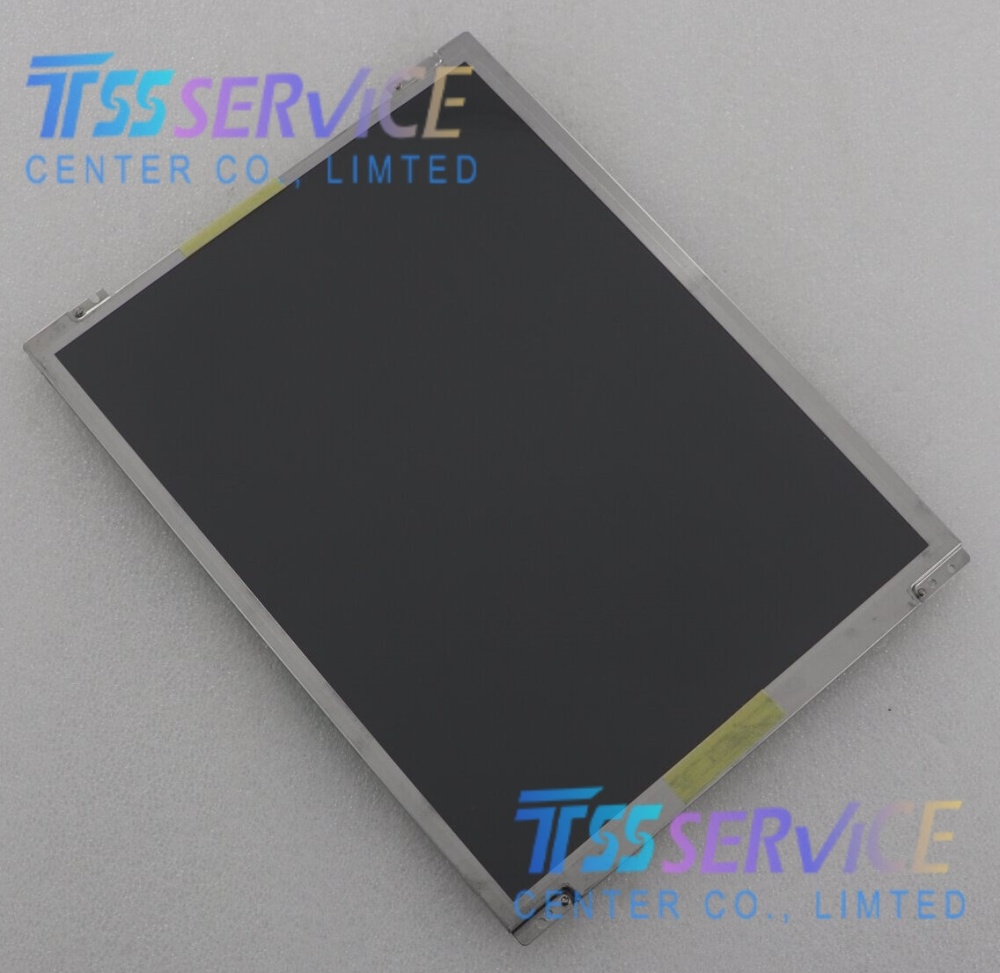

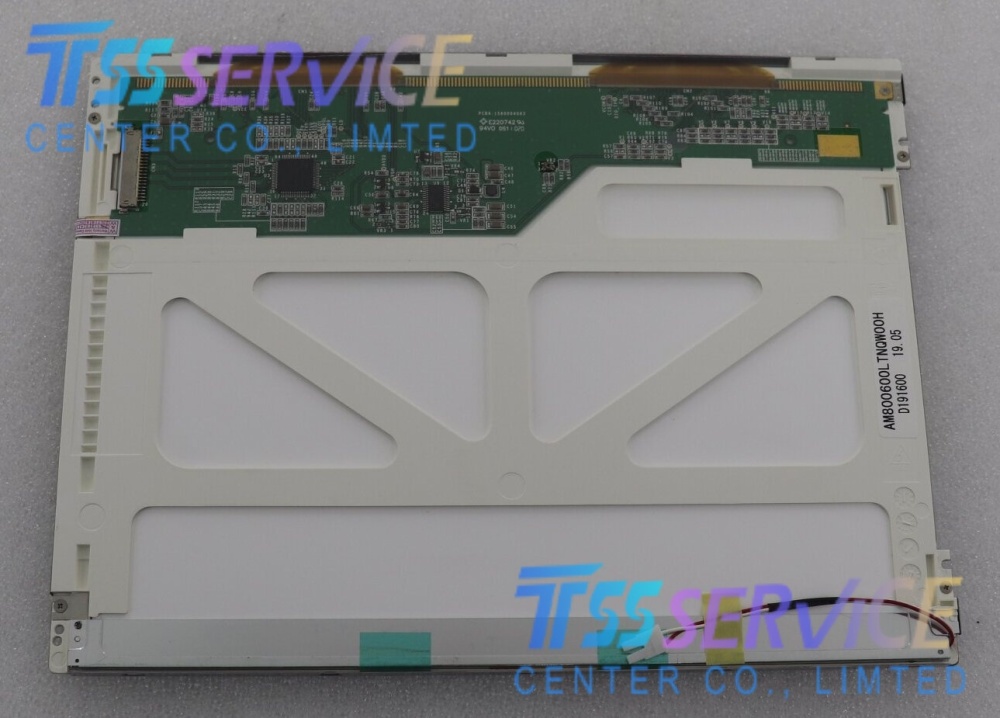

AM800600LTNQW00H AM-800600LTNQW-00H Ampire 10.4 inch LCD Panel Display For Industrial

Name: AM800600LTNQW00H AM-800600LTNQW-00H Ampire 10.4 inch LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AM800600LTNQW00H
Price: 70 USD
Availability: InStock

SKU: AM800600LTNQW00H

Model P/N: AM800600LTNQW00H /AM-800600LTNQW-00H
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 800(RGB)×600, SVGA, 4:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$72.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AM800600LTNQW00H AM-800600LTNQW-00H Ampire 10.4 inch LCD Panel Display For Industrial

Parameter	Specification
Manufacturer	AMPIRE
Part Number	AM-800600LTNQW-00H
Display Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600 (SVGA, 4:3)
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W) × 158.4(H) mm
Outline Dimensions	236(W) × 176.9(H) × 5.9(D) mm
Panel Weight	288 g
Brightness	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ., TM)
Viewing Angle	65/65/45/65° (Typ., CR≥10)
View Direction	6 o'clock
Display Mode	TN, Normally White, Transmissive
Response Time	20 ms (Typ., Tr+Td)
Display Colors	262K, 52% NTSC
Refresh Frequency	60 Hz
Light Source	6S6P WLED, without driver

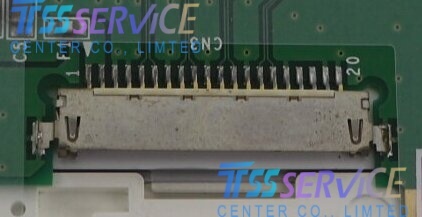

Interface	LVDS (1 ch, 6-bit), 20-pin connector
Input Voltage	3.3V (Typ.)
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80 °C
Touch Screen	Without Touch
