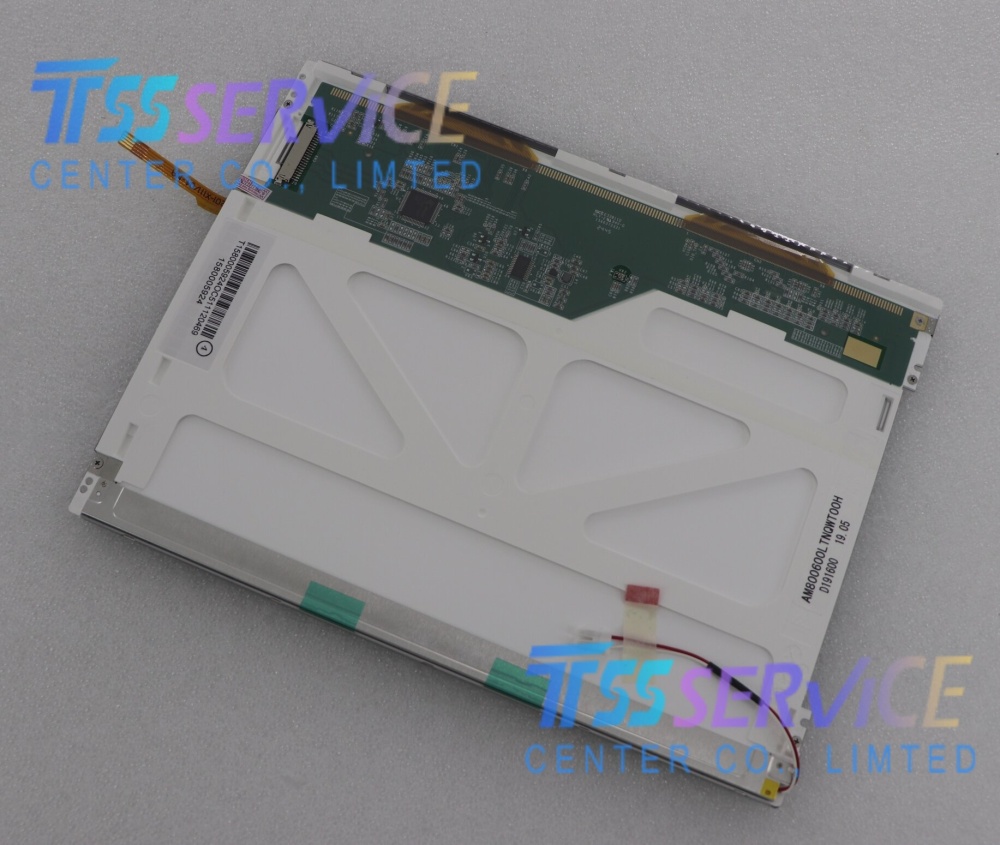

Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial

SKU: AM800600LTNQWT00H
Model P/N: AM800600LTNQWT00H
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 800(RGB)×600, SVGA, 4:3
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$100.00 $97.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
1/1
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
  • Description
Ampire AM800600LTNQWT00H AM-800600LTNQW-T00H 10.4 inch 800×600 LCD Display Panel Screen For Industrial
Parameter Detail
Model AM800600LTNQWT00H
Diagonal Size 10.4 inches
Resolution 800 × 600 (SVGA)
Display Type a-Si TFT-LCD, Transmissive
Panel Feature IPS / Wide Viewing Angle
Active Area 211.2 (W) × 158.4 (H) mm
Pixel Pitch 0.264 × 0.264 mm
Brightness 320 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.)
Display Colors 262K, 51% NTSC

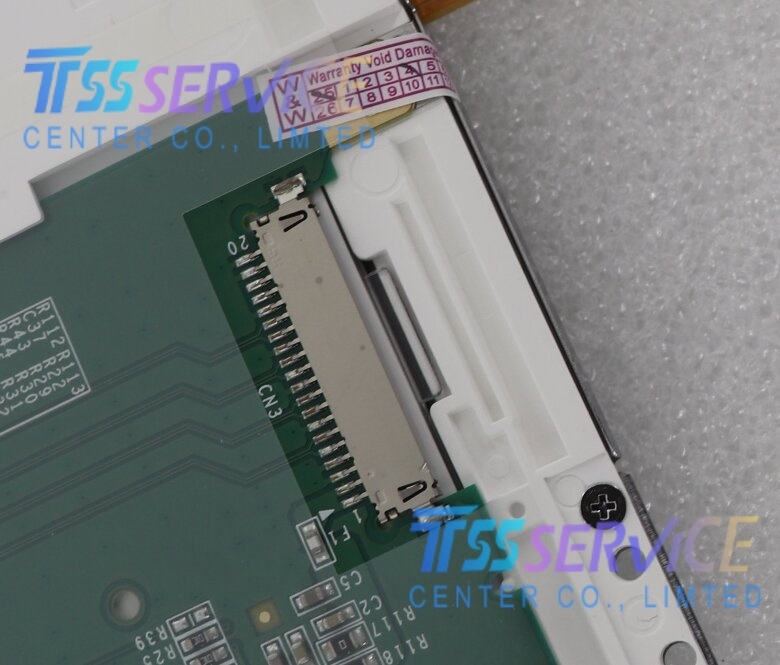

Interface LVDS
Backlight WLED,
Operating Temperature -20°C ~ +70°C

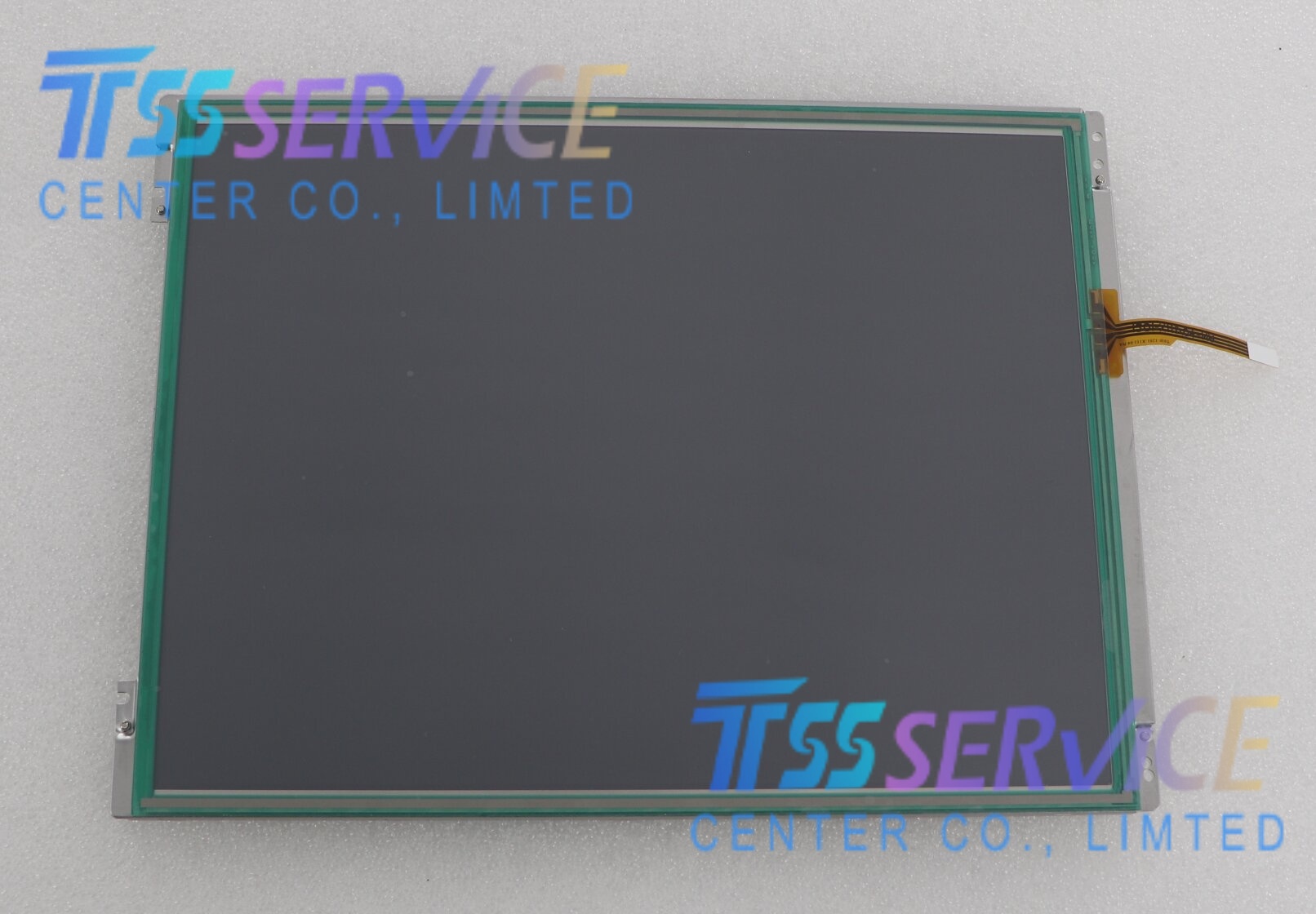

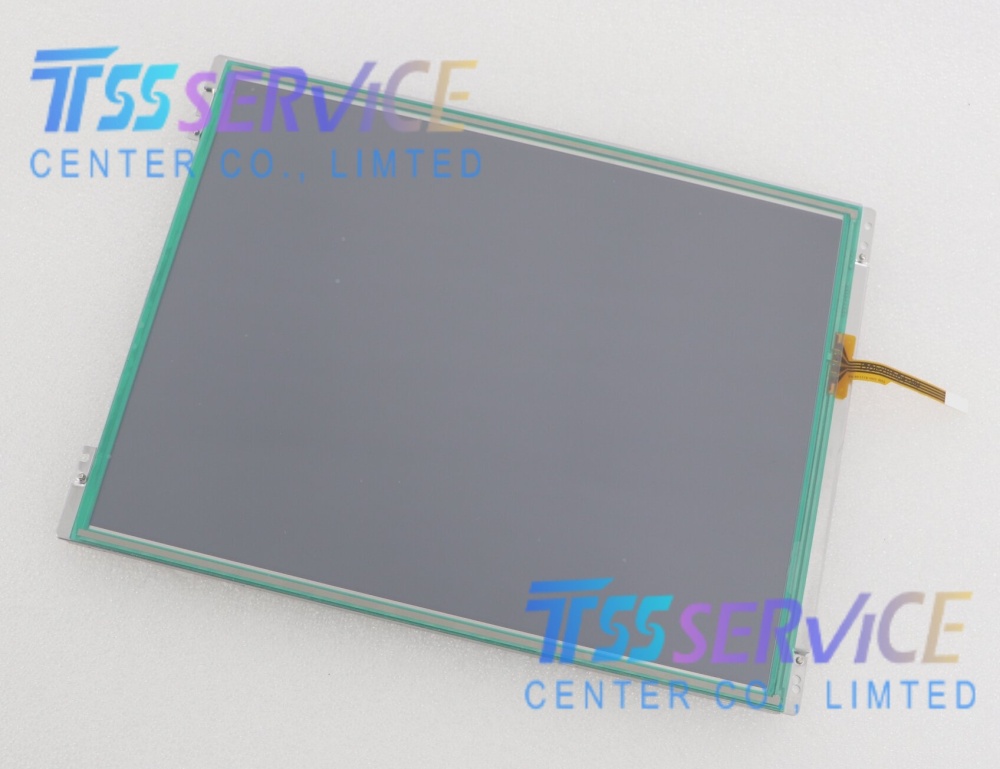

Touch Capacitive Touch Panel


Applications

  • Handheld industrial terminals & portable test instruments
  • Medical handheld devices & small diagnostic equipment
  • Smart home control panels & compact human-machine interfaces
  • Wearable & mobile embedded display systems
  • Vehicle-mounted small dashboards & industrial monitoring screens
