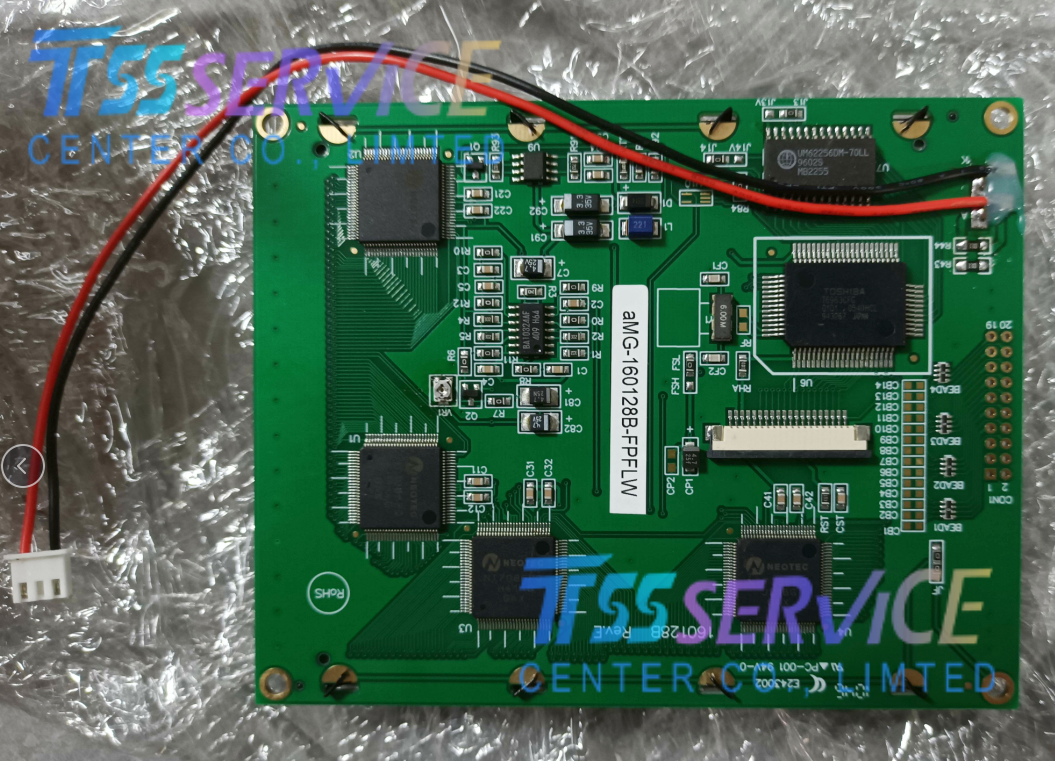

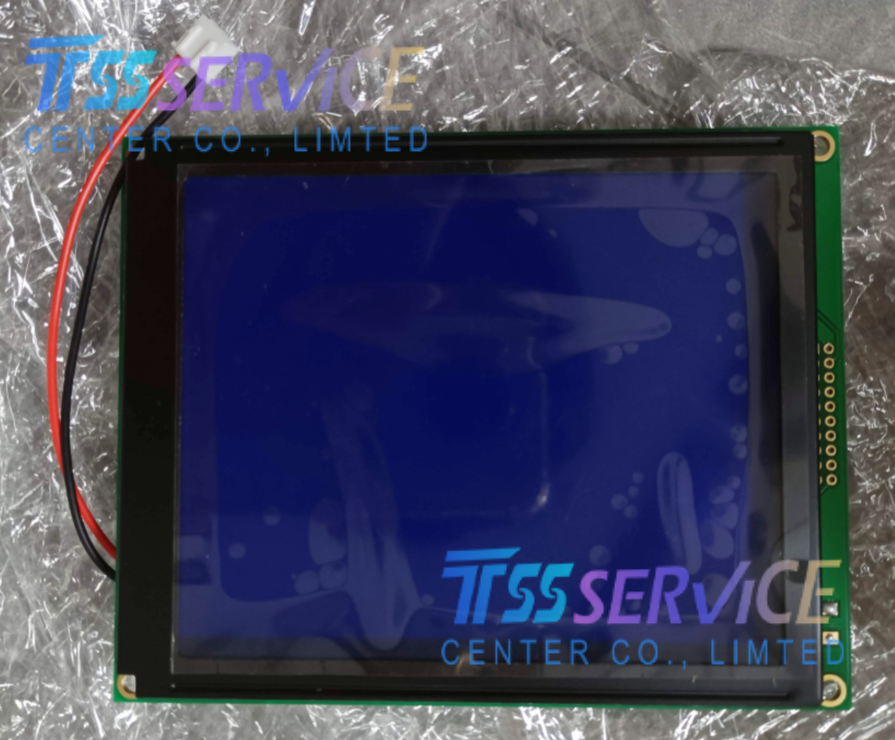

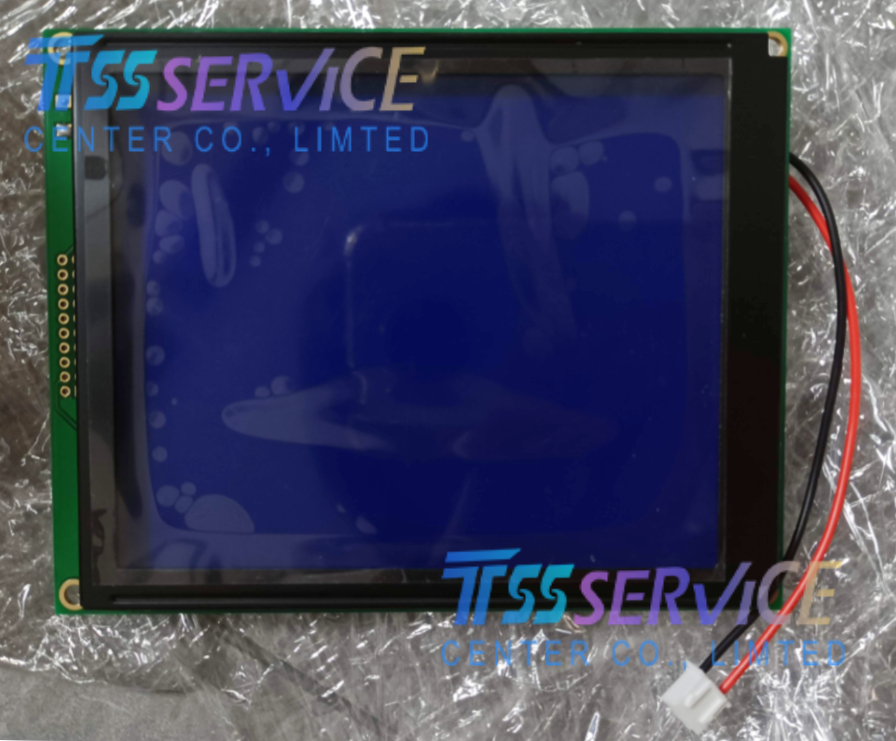

AMG-160128B-FPFLW Compatible 160 × 128 LCD Panel Screen For Industrial

Name: AMG-160128B-FPFLW Compatible 160 × 128 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AMG-160128B-FPFLW
Price: 80 USD
Availability: InStock

SKU: AMG-160128B-FPFLW

Model: AMG-160128B-FPFLW (Rev.E)
Display Size: 4.8 inches (diagonal)
Panel Type: FSTN, Positive, Transflective, Monochrome
Resolution: 160 × 128 pixels

0.0 (0 Reviews)

0 Sold

~~$82.00~~ $80.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AMG-160128B-FPFLW Compatible 160 × 128 LCD Panel Screen For Industrial

Parameter	Specification
Model	AMG-160128B-FPFLW (Rev.E)
Display Size	4.8 inches (diagonal)
Panel Type	FSTN, Positive, Transflective, Monochrome
Resolution	160 × 128 pixels
Aspect Ratio	4:3
Active Area (AA)	92.76 (W) × 74.20 (H) mm
Outline Dimensions	129.0 × 102.0 × 8.6 mm
Dot Pitch / Size	0.58 × 0.54 mm / 0.54 × 0.50 mm
Viewing Direction	6 o’clock
Contrast Ratio	200:1 (Typ.)
Backlight	White LED, side-mounted
Controller IC	RA6963 (compatible with T6963C)
Interface	8-bit parallel (8080 MCU), 22-pin
Power Supply (VDD)	5.0V ±10% (logic)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Net Weight	Approx. 350g
Features	COB, transflective (sunlight readable), built-in voltage

Typical Applications

Industrial Control & HMI
- PLC panels, factory automation, machinery HMIs.
- Injection molding machines, CNC equipment, and process monitors.
Medical Devices
- Patient monitors, diagnostic analyzers, portable medical instruments.
- Clear, stable display for clinical and mobile environments.
Test & Measurement Instruments
- Oscilloscopes, spectrum analyzers, power meters, data loggers.
- Monochrome graphics for waveforms, parameters, and menus.
Embedded & IoT Systems
- Industrial gateways, smart controllers, edge computing devices.
- Low power, wide voltage, easy MCU integration.
Outdoor & Handheld Devices
- Transflective design for direct sunlight readability.
- Field terminals, agricultural/construction equipment displays.
