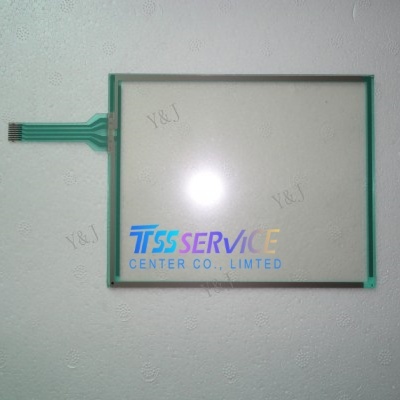

Analog 4-wire resistive touch overlay AGP3301-S1-D24
Specifications
.1. Resistive Touch Overlay Core Specs
- Touch Structure: Analog resistive film touch panel
- Touch Resolution: 1024 × 1024 coordinate precision
- Operation Force: 20g ~ 150g, supports bare finger, latex/cotton gloves, plastic stylus
- Service Life: ≥1,000,000 single-point taps
- Light Transmittance: ≥82%
- FFC Connector: Standard flat cable matching AGP3301 internal touch circuit
- Spare Touch Part No.: 3280007-12 (original replacement overlay)
- Surface: Hard PET protective layer, anti-solvent for workshop chemical wiping
-
2. Optical Specifications
- Light transmittance: ≥82%
- Surface hardness: 3H anti-scratch PET coating
- Anti-Newton ring treatment to avoid moiré pattern with LCD
- Anti-gloss matte surface, reduce workshop light reflection
- UV stabilized coating, no yellowing under long-time operation
3. Electrical & Touch Performance
- Coordinate resolution: 1024 × 1024
- Operating trigger force: 20g ~ 150g
- Service life: Over 1,000,000 single-point touch taps
- FFC cable: Dedicated flat ribbon cable with original pin definition for AGP3301 series
- ESD resistance: ±2kV HBM on front touch surface
- Response speed: ≤15ms touch signal feedback
- Support input tools: Bare finger, cotton/latex gloves, plastic stylus
4. Mechanical Dimensions
- Touch active window size: 115.2 mm (W) × 86.4 mm (H)
- Overall overlay outer size matches AGP3301 front frame window
- Thin film structure, total thickness less than 0.3mm
- Rear double-sided industrial adhesive for direct lamination on front bezel
5. Environmental Reliability
- Operating temperature range: 0℃ ~ +50℃
- Storage temperature range: -20℃ ~ +60℃
- Resistant to industrial coolant, alcohol and weak acid cleaning
- Anti-vibration design compliant with factory machinery standards
Typical Applications
- Repair replacement for aged Pro-face AGP3301-S1-D24 industrial HMI
- Replace cracked, scratched, insensitive or broken original touch overlay
- Touch upgrade maintenance for plastic injection molding machine control panels
- Spare touch part for packaging, filling and carton automation equipment HMIs
- Replacement component for textile loom, printing machine operation terminals
- Maintenance spare for food processing conveyor, hydraulic small equipment control screens
- Aftermarket repair accessory for discontinued legacy AGP3000 series operator panels
