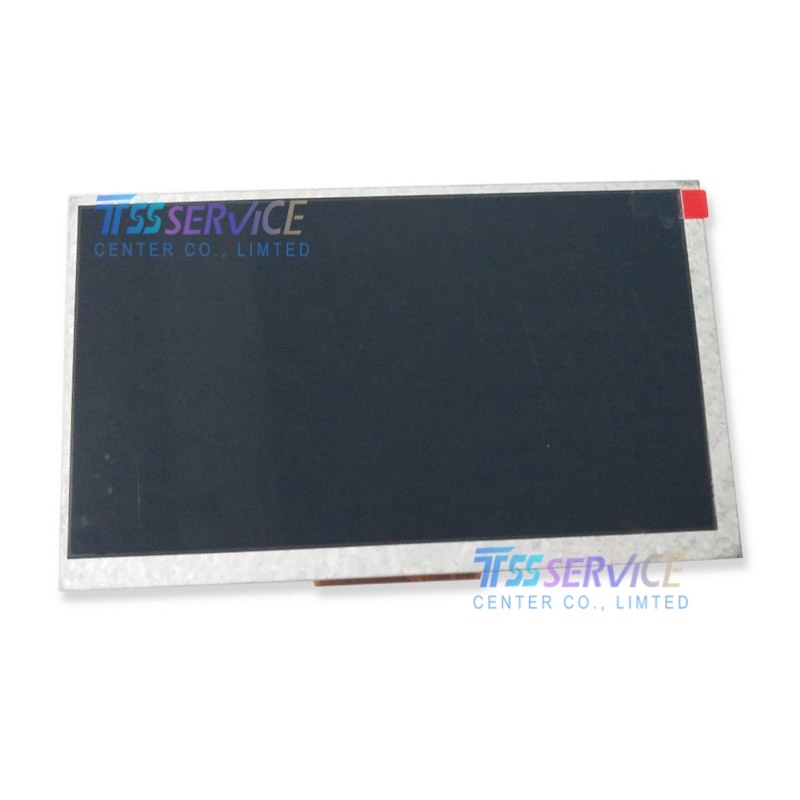

AT070TN06 Innolux 7 inch 480×234 LCD Panel Display For Industrial

Name: AT070TN06 Innolux 7 inch 480×234 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AT070TN06
Price: 35 USD
Availability: InStock

SKU: AT070TN06

Model P/N: AT070TN06
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 480(RGB)×234, 16:9
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$36.00~~ $35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AT070TN06 Innolux 7 inch 480×234 LCD Panel Display For Industrial

Parameter	Details
Manufacturer	Innolux (Chimei Innolux)
Model Number	AT070TN06
Panel Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Diagonal Size	7.0" (inch)
Resolution	480(RGB) × 234, 16:9 Aspect Ratio
Pixel Format	RGB Vertical Stripe
Brightness	300 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Viewing Angle	60/60/40/60° (L/R/U/D, CR≥10)
Color Depth	16.7M (8-bit)
Response Time	15/20 (Typ.)(Tr/Td) ms
Active Area	154.08 (W) × 86.58 (H) mm
Outline Dimensions	164.9 (W) × 100.0 (H) × 6.0 (T) mm
Surface	Anti-glare (Matte)
Backlight	CCFL (1 lamp), Side-entry, No driver IC
Interface	Analog RGB (26-pin FPC)
Supply Voltage	5.0/5.0/15.0/-10.0V (VCC/AVDD/VGH/VGL)
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +80°C
RoHS	Yes

Applications

Automotive GPS & Car Navigation: Mainstream 7-inch display for aftermarket and OEM head units.
Industrial HMI & Controls: Factory automation panels, test instruments.
Medical Portable Devices: Small diagnostic monitors.
Consumer Electronics: Portable DVD players, digital photo frames.
Telecom & Networking: Routers, industrial modems.
Marine Electronics: Small boat navigation displays.
