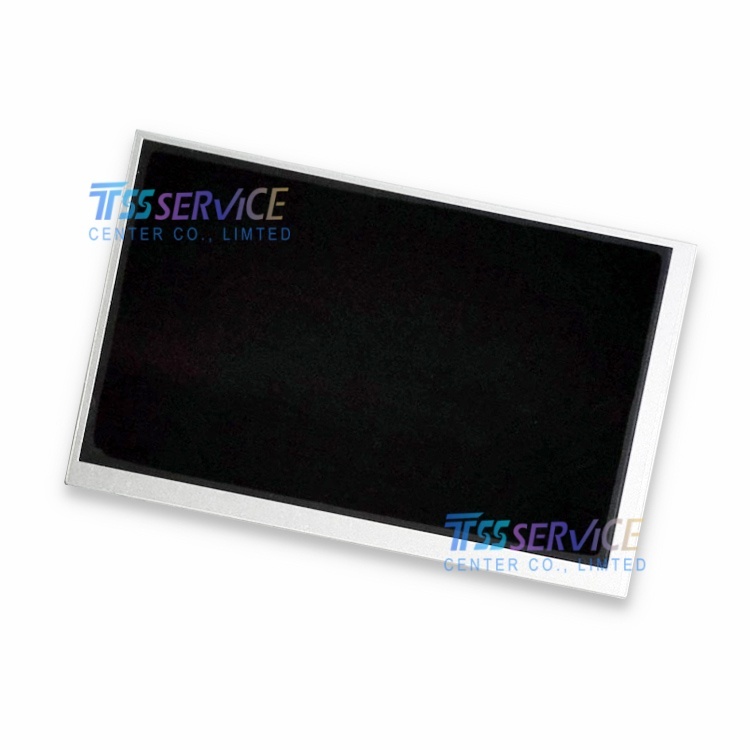

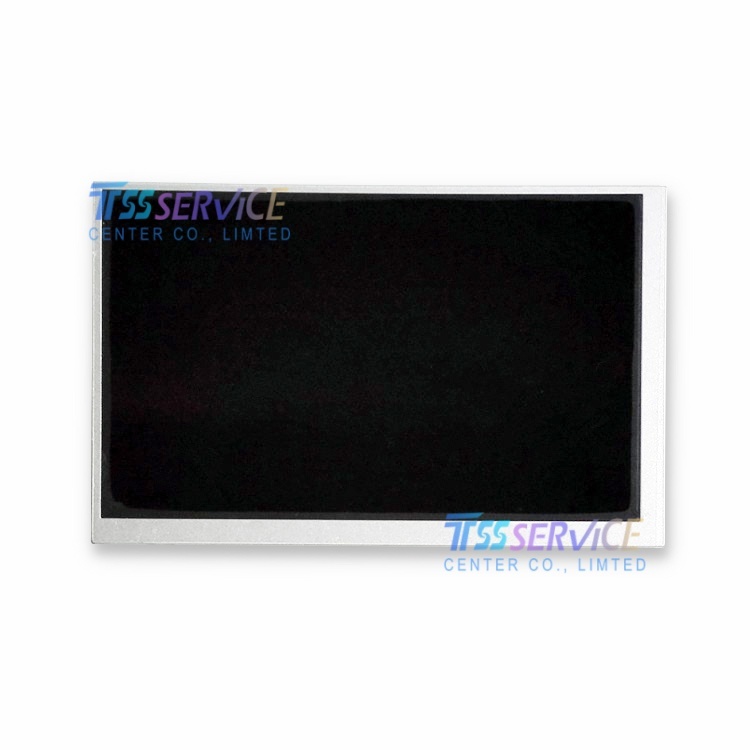

AT070TN83 V.1 Innolux 7" 800×480 LCD Dispaly Panel for industrial
| Parameter |
Details |
| Brand |
Innolux (Chimei Innolux) |
| Model Number |
AT070TN83 V.1 |
| Panel Type |
a-Si TFT-LCD, LCM (LCD Module) |
| Diagonal Size |
7.0 inches |
| Resolution |
800 (RGB) × 480 (WVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Active Area |
152.4 (W) × 91.44 (H) mm |
| Outline Dimensions |
165 (W) × 104 (H) × 5.8 (T) mm |
| Surface Treatment |
Matte (Anti-glare, 25% haze) |
| Display Mode |
TN (Twisted Nematic), Normally White, Transmissive |
| Best View Direction |
6 o'clock |
| Luminance (Brightness) |
400 cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical, Transmissive) |
| Color Depth |
262K Colors (6-bit) |
| Response Time |
25 (Typ.)(Tr+Td) |
| Viewing Angle (CR≥10) |
70° (U), 70° (D), 50° (L), 70° (R) |
| Backlight |
WLED (White LED), 20,000 hours lifespan, with built-in LED Driver |
| Signal Interface |
TTL (1 channel, 6-bit), 40 pins |

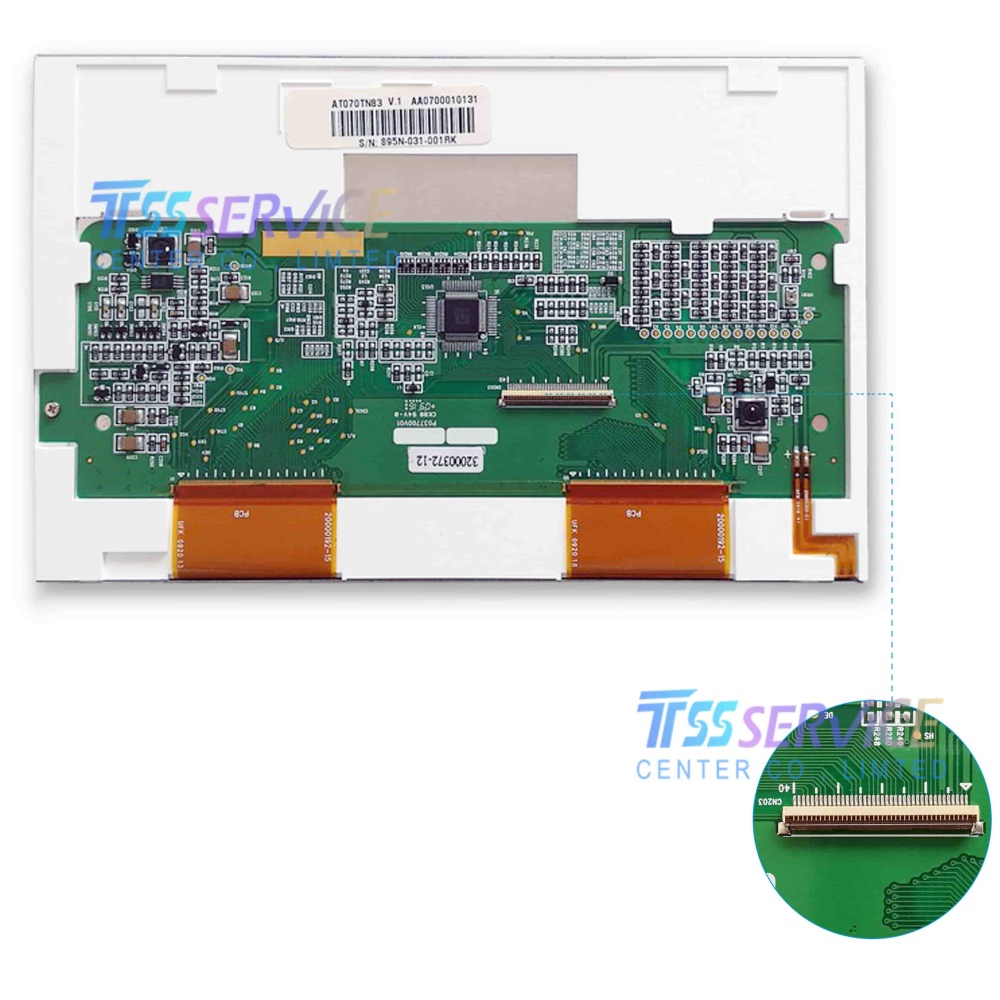

| Connector |
HRS FH19SC-40S-0.5SH, 0.5mm pitch |
| Input Voltage |
3.3V |
| Input Current |
250 mA (Typical), 300 mA (Max.) |
| Weight |
130 g |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Production Status |
Mass Production (In Production) |
AT070TN83 V.1 is a 7-inch WVGA TFT LCD module primarily designed for
consumer electronics and
industrial applications requiring a cost-effective, reliable display with a wide temperature range.
