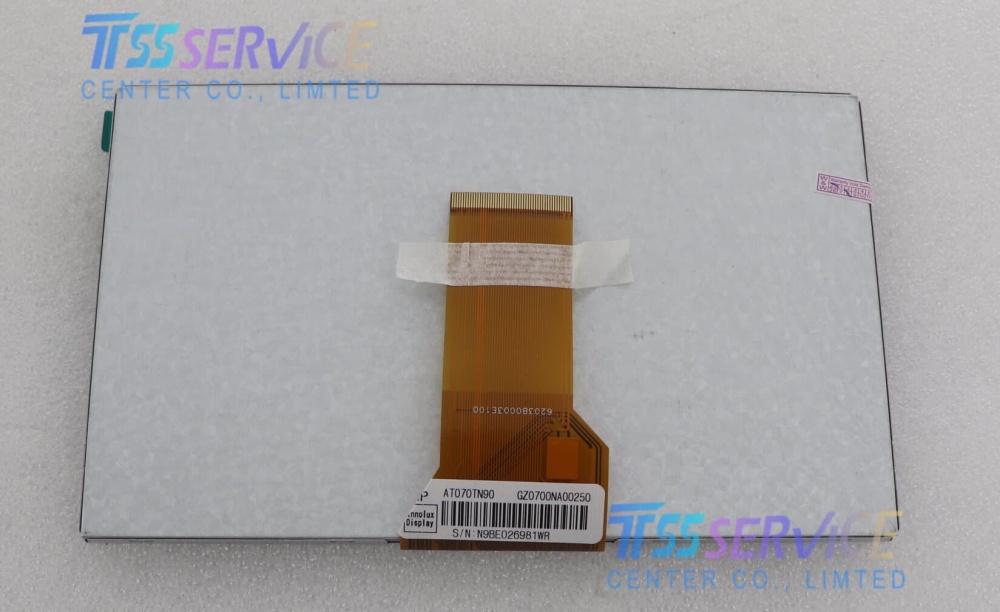

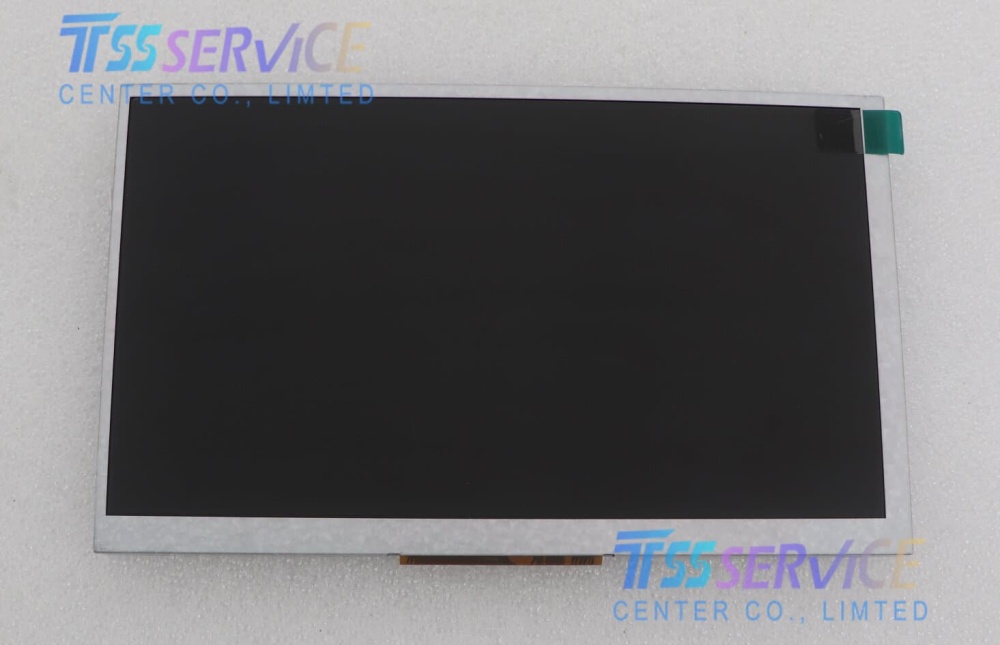

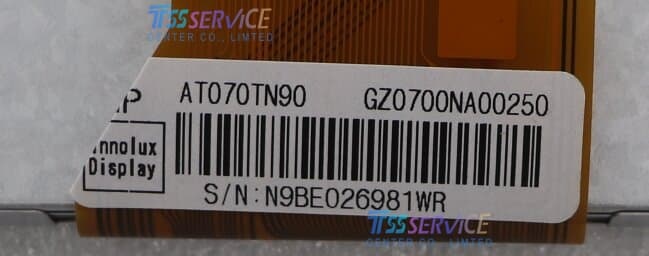

The AT070TN90 is a 7.0-inch amorphous silicon (a-Si) Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) cell (also referred to as LCD glass) originally manufactured by Chimei Innolux Corporation . This product is a key component for display manufacturers and integrators, as it is a LCD glass panel without a backlight, designed to be combined with external backlight units and drivers for various applications
| Parameter |
Specification |
| Brand |
Chimei Innolux |
| Model P/N |
AT070TN90 |
| Diagonal Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, CELL, FOG |
| Resolution |
800(RGB)×480, WVGA 134PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
154.08(W)×85.92(H) mm |
| Bezel Opening |
— |
| Outline Dim. |
162.53(H)×96.62(V)×1.43(D) mm |
| Treatment |
Antiglare |
| Luminance |
0 cd/m² |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
10/15 (Typ.)(Tr/Td) ms |
| Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Plate Thickness |
0.50±0.50 mm |
| Transmittance |
5.11% (Typ.)(with Polarizer) |
| Support Color |
16.7M |
| Light Source |
No B/L |
| Weight |
45.0g (Typ.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| D-IC Detail |
COG Built-in 1 source + 1 gate chips |
| Interface Type |
Parallel RGB (1 ch, 8-bit), 50 pins FPC |
| Power Supply |
3.3/10.4/16.0/-7.0V (Typ.)(DVD/VGH/VGL) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Applications
The AT070TN90 is ideally suited for a wide variety of applications where manufacturers integrate their own backlight solutions, including:
-
Digital Photo Frames
-
Portable DVD Players and mobile multimedia devices
-
Industrial Control Systems and human-machine interfaces (HMI)
-
Medical devices and patient monitors
-
Automotive displays and in-car entertainment systems
-
Banking terminals and kiosks .
