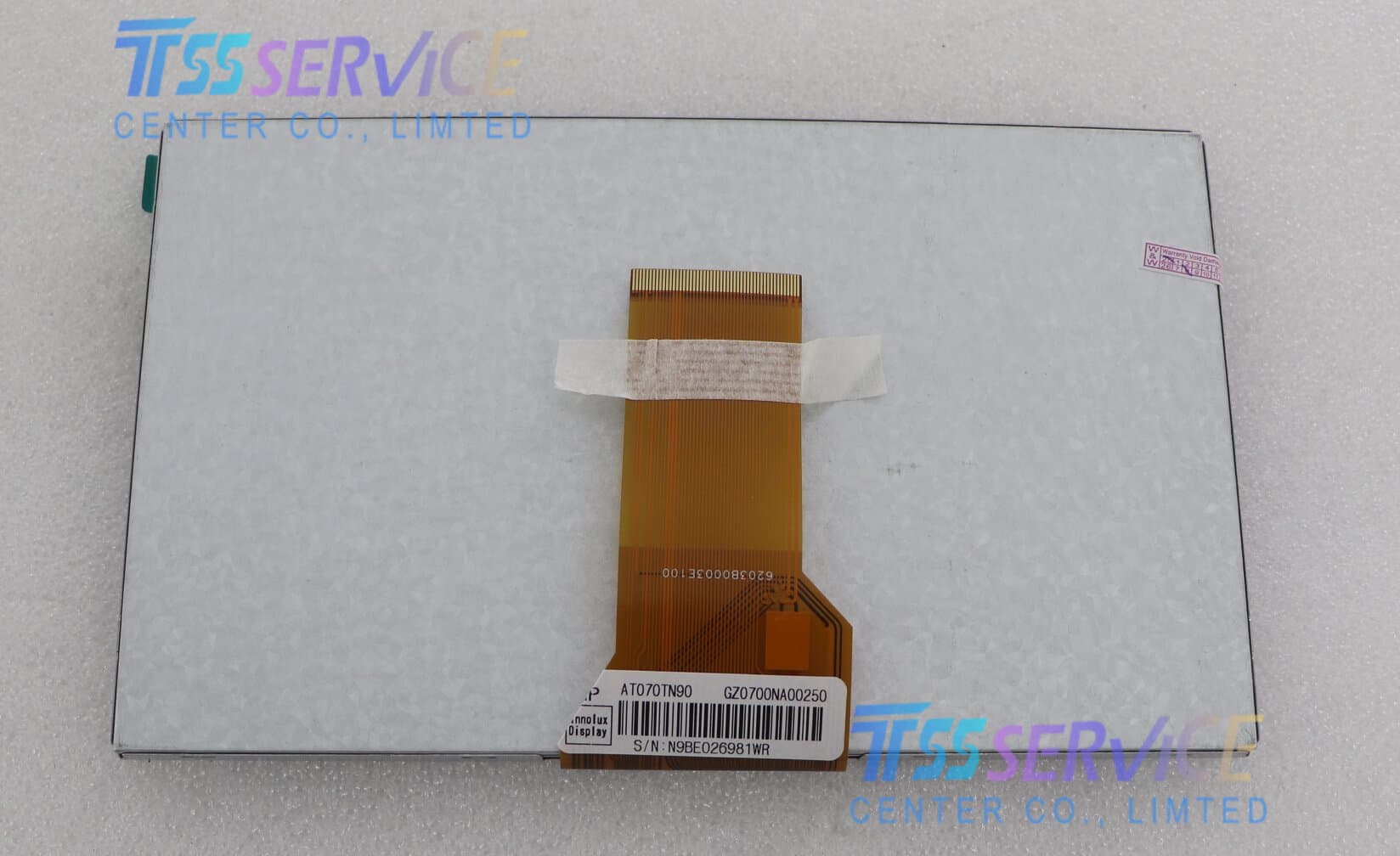

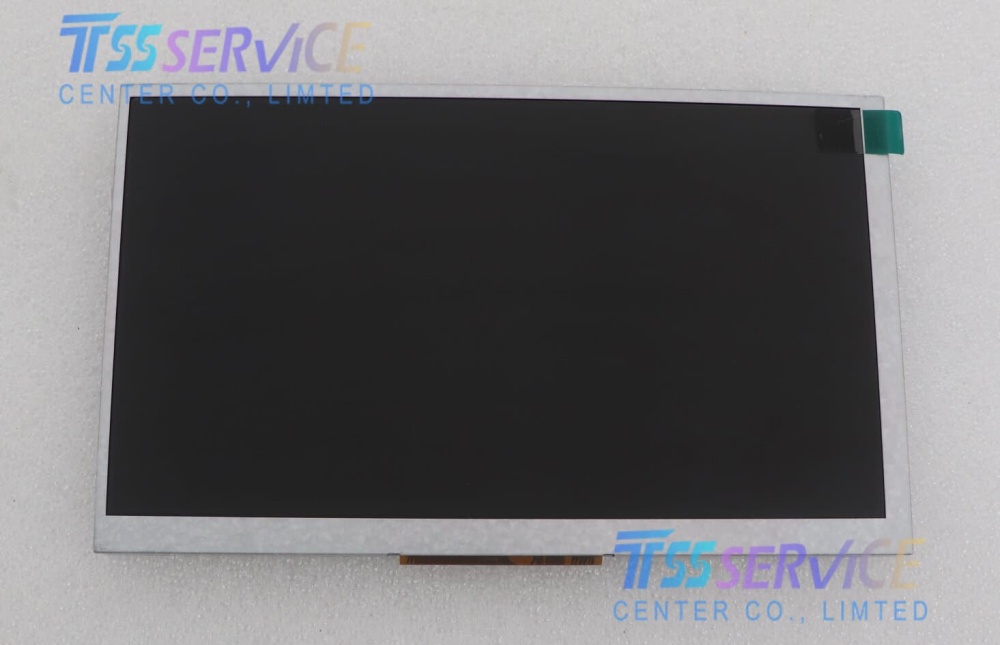

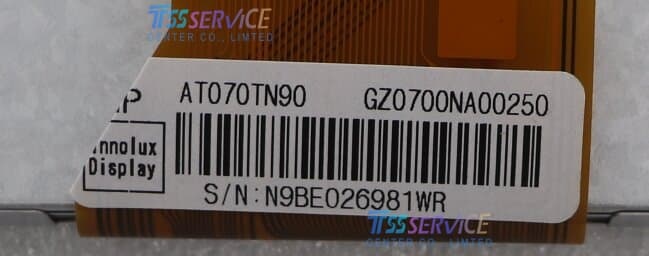

AT070TN90 V.1 7.0inch 800×480 Lcd Panel for Chimei Innolux

Name: AT070TN90 V.1 7.0inch 800×480 Lcd Panel for Chimei Innolux
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AT070TN90V.1
Price: 30 USD
Availability: InStock

SKU: AT070TN90V.1

Model P/N： AT070TN90 V.1
Diagonal Size： 7.0"
Panel Typea：a-Si TFT-LCD, CELL , FOG
Resolution: 800(RGB)×480, WVGA 134PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$32.00~~ $30.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Chimei Innolux AT070TN90 V.1 is a 7.0-inch a-Si TFT-LCD panel known for its balance of performance and practicality, making it a popular choice for a variety of multimedia and industrial applications. It delivers sharp and clear images with a resolution of 800 x 480 pixels (WVGA) , adhering to the 16:9 widescreen format.

Brand	Chimei Innolux	Model P/N	AT070TN90 V.1
Diagonal Size	7.0"	Panel Type	a-Si TFT-LCD, CELL, FOG
Resolution	800(RGB)×480, WVGA 134PPI	Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×85.92(H) mm	Bezel Opening	-
Outline Size	162.5(W)×96.62(H)×1.43(D) mm	Surface	Antiglare
Brightness	0 cd/m²	Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock	Response Time	25 (Typ.)(Tr+Td)
Glass Depth	0.50+0.50 mm	Transmissivity	5.11% (Typ.)(with Polarizer)
Display Colors	262K/16.7M	Lamp Type	No B/L
Frequency	60Hz	Touch Screen	Without
Driver IC	COG Built-in EK9713BCGB + EK73002ACGB, NT39419BH-D/4ID + NT52001H-D/4IC	Application	Portable DVD Players, Digital Photo Frames
Signal Interface	Parallel RGB (1 ch, 6/8-bit), 50 pins FPC
Input Voltage	3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C
