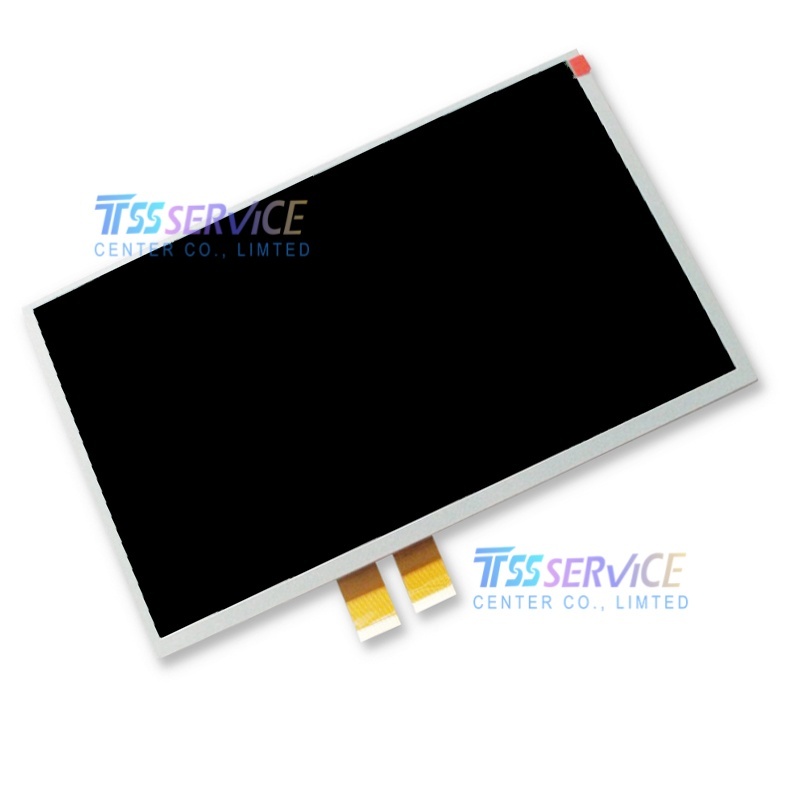

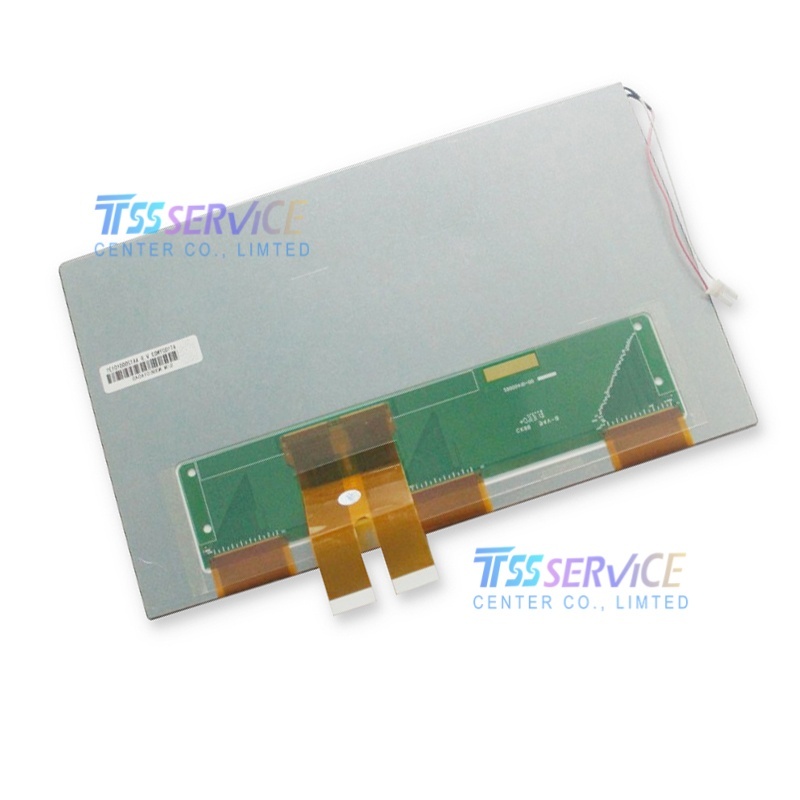

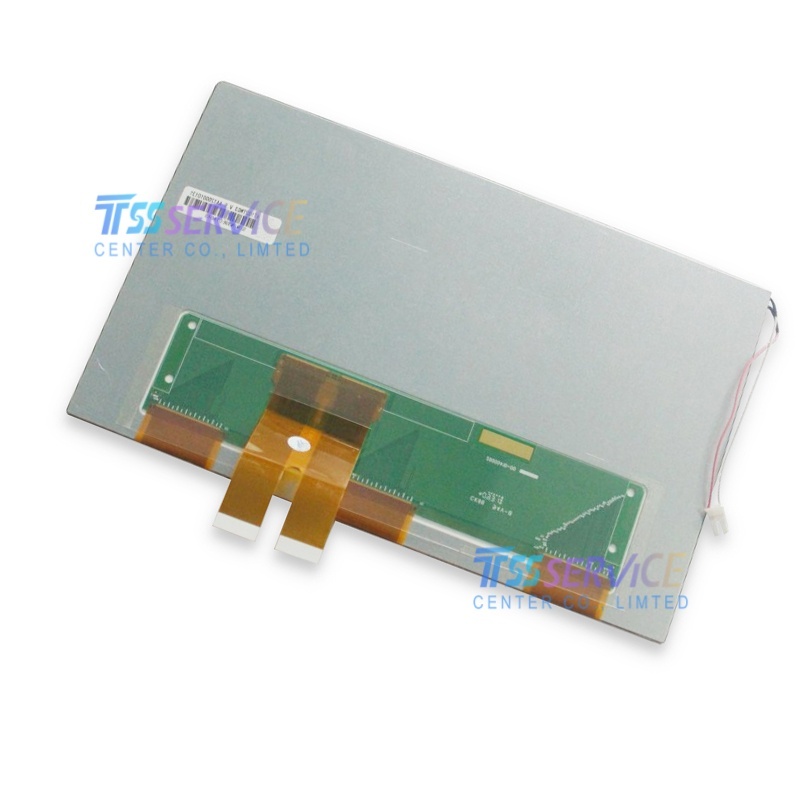

The AT102TN03 V.8 is a high-quality 10.2-inch amorphous silicon (a-Si) Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) module manufactured by Innolux Corporation (formerly Chimei Innolux) . Engineered for reliable performance in industrial and automotive applications, this ruggedized module delivers clear image quality, wide operating temperature range, and versatile integration options for human-machine interfaces and multimedia displays.
| Parameter |
Specification |
| Brand |
Innolux |
| Model P/N |
AT102TN03 V.8 |
| Diagonal Size |
10.2" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×480, WVGA 91PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
222(W)×132.48(H) mm |
| Bezel Opening |
225.3(W)×135.7(H) mm |
| Outline Dim. |
235(W)×145.8(H)×6.4(D) mm |
| Treatment |
Antiglare |
| Luminance |
350 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
15/20 (Typ.)(Tr/Td) ms |
| Viewing Angle |
65/65/45/65 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K 50% NTSC |
| Light Source |
WLED [3S10P], 20K hours, W/O Driver |
| Weight |
309g (Typ.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
TTL (1 ch, 6-bit), 60 pins FPC |
| Power Supply |
3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Operating Temperature |
-30 ~ 85 °C |
| Storage Temperature |
-30 ~ 85 °C |
Applications
The AT102TN03 V.8 is ideally suited for a wide variety of industrial and commercial applications where wide temperature operation and reliability are critical, including:
-
Industrial Control Systems and human-machine interfaces (HMI)
-
Automotive displays and in-car entertainment systems
-
Digital photo frames and multimedia devices
-
Portable DVD players and mobile multimedia
-
Medical equipment and portable diagnostic devices -
-
Industrial instrumentation and test equipment .
