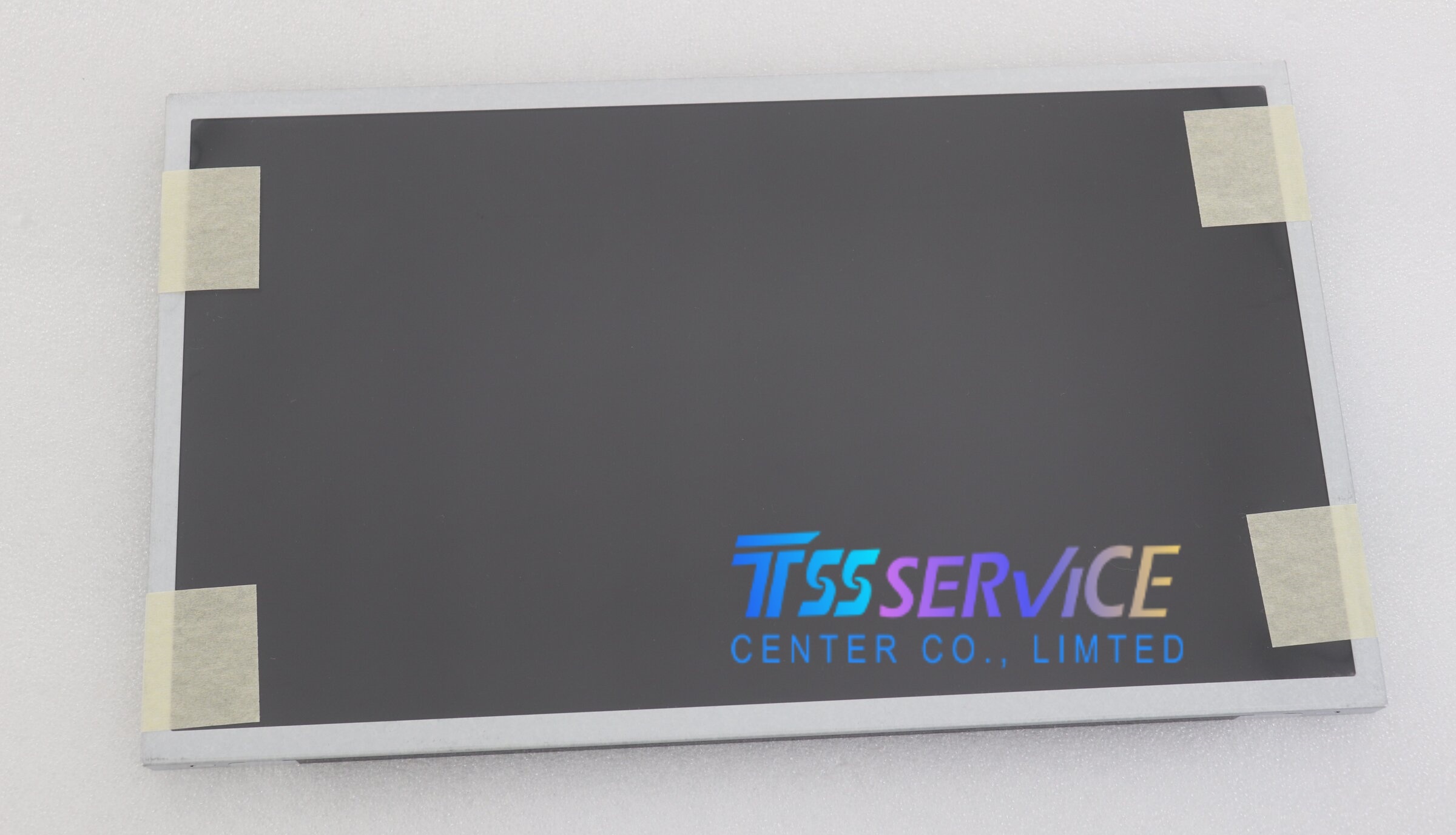

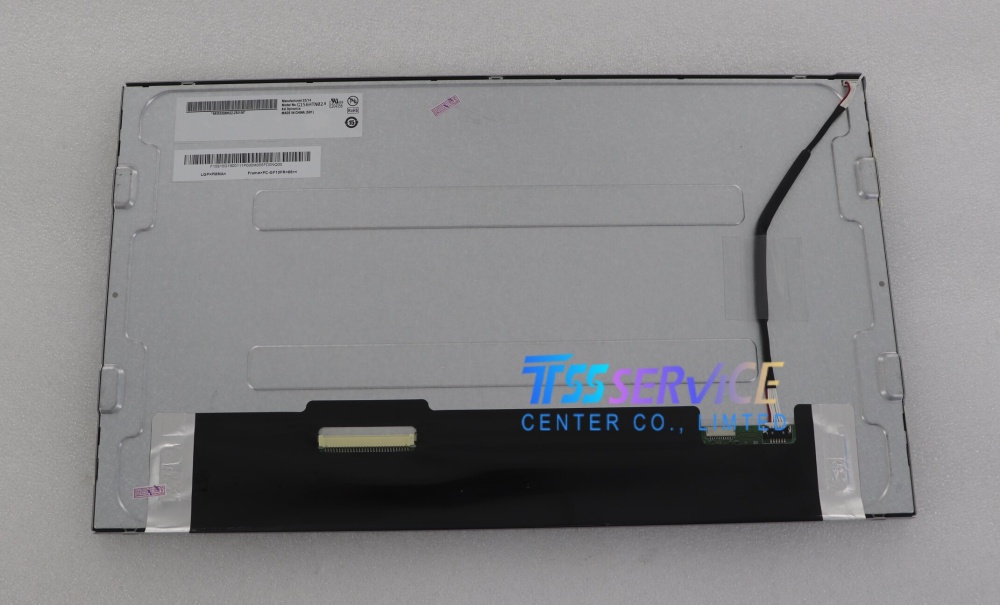

AUO 15.6 Inch LCD PANEL DISPLAY G156HTN02.0 use for Industrial
Specifications
| Brand |
AUO |
Model |
G156HTN02.0 |
| Size |
15.6 Inch |
Pixel Format |
RGB Vertical Stripe |
| Active Area |
344.16(W)×193.59(H) mm |
Outline Size |
363.8(W)×215.9(H)×9.8(D) mm |
| Brightness |
400cd/m² |
Contrast Ratio |
700:1 |
| Resolution |
1920(RGB)×1080 |
Lamp |
WLED |
| Surface |
Antiglare, Hard coating |
Frequency |
60HZ |
| Panel Type |
a-Si TFT-LCD, LCM |
Touch screen |
Without |
| Signal Interface |
- LVDS (2 ch, 8-bit), 30 pins Connector
|
Environment |
- Operating Temp. -10 ~ 70 °C ;Storage Temp. -20 ~ 70 °C
|
Typical Applications
1. Industrial Automation HMI & Equipment
Embedded display for CNC machine controllers, injection molding equipment, PLC control cabinets and industrial all-in-one panel PCs; built-in screen for rack-mounted industrial workstations and precision production testing devices.
2. Medical Diagnostic Devices
Main control display for biochemical analyzers, multi-parameter patient monitors, ultrasonic auxiliary equipment and clinical laboratory inspection instruments.
3. Commercial Self-service Terminals
FHD display for industrial POS cash terminals, self-service inquiry kiosks, automatic weighing equipment and factory automation checkout machines.
4. Special Vehicle & On-board Monitor
Dashboard display for engineering machinery, forklift control terminals and mobile industrial detection onboard equipment.
5. Aftermarket Replacement & Custom Open-frame Monitor
Spare replacement panel for obsolete 15.6-inch FHD industrial screens; customized open-frame monitor for special non-standard automated testing equipment renovation.
- FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 5-7days to your hand by DHL/FEDEX EXPRESS
Q:Can you give me a discount if I need bulk quantity?
A:Of course!If you make a large order, we will give you discount.
Q:If goods have problem when test, How we get warranty ?
A:Please kindly contact me .we will offer technical support to resolve. or change replacment goods for you.
