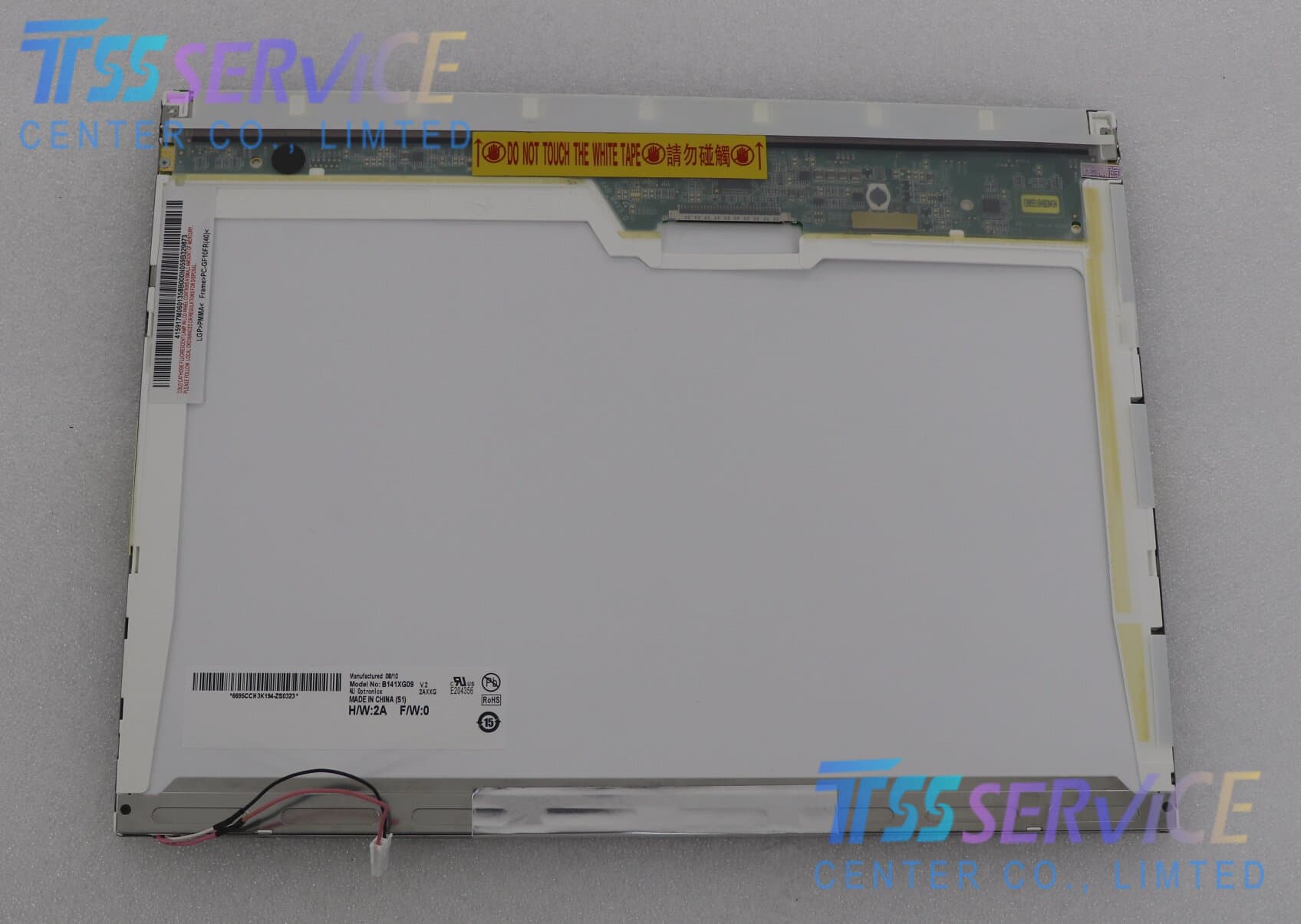

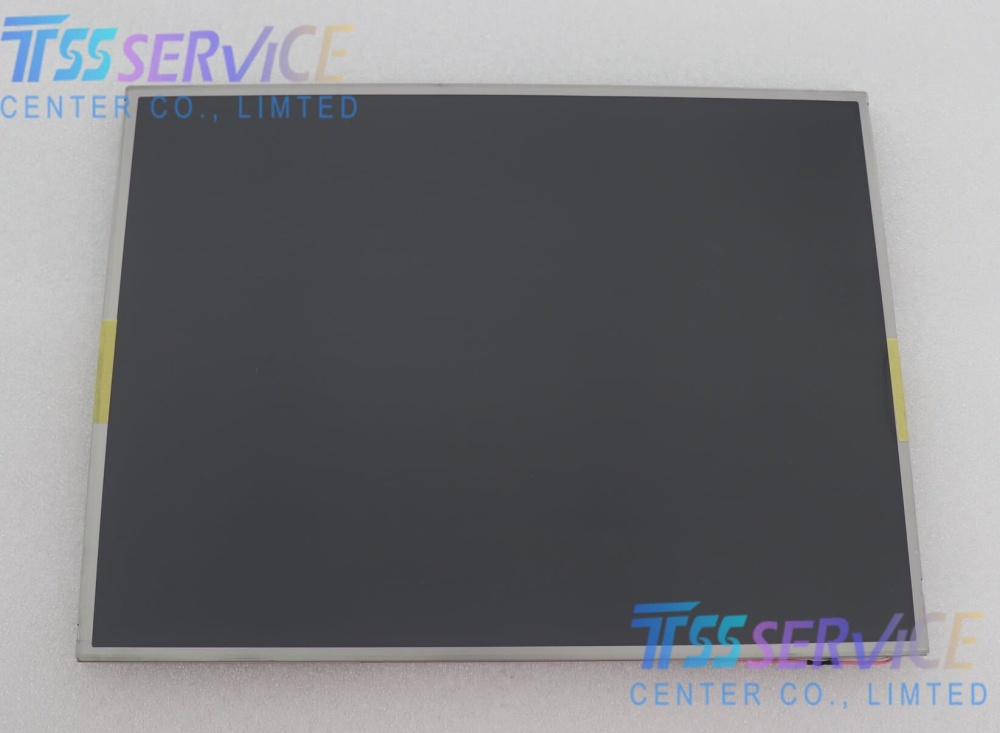

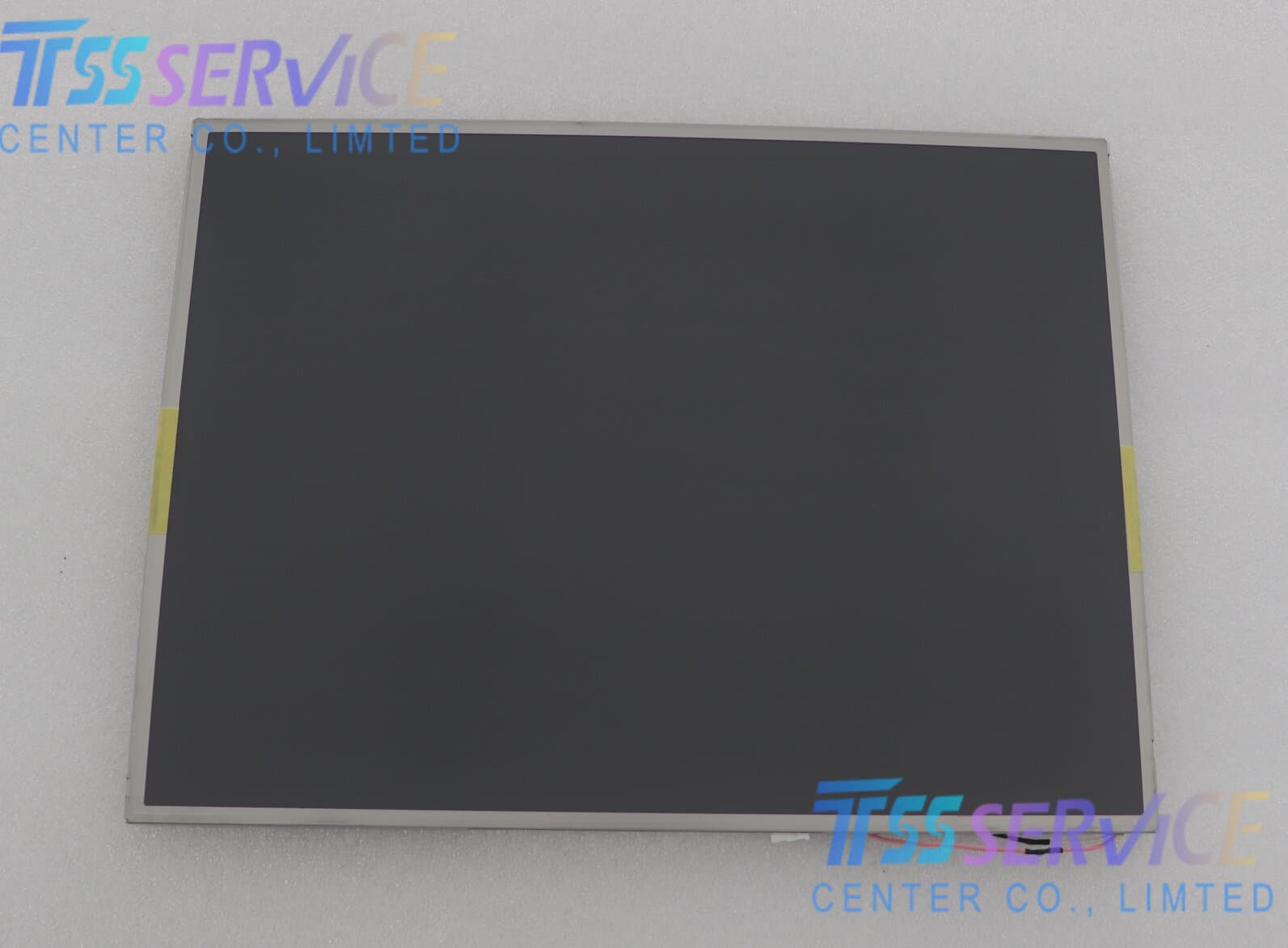

B141XG09 V.3 | AUO 14.1" XGA TN CCFL TFT-LCD Module
B141XG09 V.3 is a 14.1-inch XGA transmissive TN LCD module manufactured by AU Optronics, originally designed for classic 14-inch laptops. It integrates built-in CCFL backlight inverter, single-channel 6-bit LVDS 30-pin interface, matte anti-glare 3H hard coating and stable 0~50°C operating temperature. With standard XGA 1024×768 resolution, low power consumption and mature signal compatibility, it is widely used for legacy notebook screen replacement, industrial portable control terminals, laboratory test monitors, medical auxiliary displays and embedded automation equipment.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Full Part Number |
B141XG09 V.3 |
| Manufacturer |
AU Optronics (友达光电) |
| Diagonal Size |
14.1 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
1024(H) × 768(V) pixels (XGA, 91 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.279 mm × 0.279 mm |
| Active Area (AA) |
285.696 mm (W) × 214.272 mm (H) |
| Overall Outline Dimension |
299.0 × 240.6 × 5.5 mm |
| Typical Brightness |
200 cd/m² |
| Typical Contrast Ratio |
300:1 (Minimum) |
| Viewing Angle (L/R/U/D, CR≥10) |
40° / 40° / 10° / 30°, optimal viewing: 6 o'clock |
| Response Time (Tr / Td) |
10 ms / 15 ms typical |
| Display Color Depth |
262K colors (6-bit RGB), 42% NTSC gamut |
| Backlight System |
Single CCFL lamp, onboard integrated inverter, service life ≥ 30,000 hours |
| Signal Interface |
Single-channel LVDS, 6-bit, 30-pin FPC connector with EDID EEPROM |
| Logic Supply Voltage |
3.3 VDC (3.0 ~ 3.6V allowable) |
| Total Power Consumption |
Max 5.1W (logic + CCFL backlight) |
| Refresh Rate |
60 Hz standard |
| Touch Function |
Without integrated touch panel (external resistive/capacitive touch customizable) |
| Surface Treatment |
Matte anti-glare polarizer (Haze 25%), 3H scratch-resistant hard coating |
| Vibration Resistance |
1.5G industrial anti-vibration standard |
| Operating Temperature |
0°C ~ +50°C |
| Storage & Transport Temp |
-20°C ~ +60°C |
| Net Weight |
Approx. 420 g |
| Compliance Standard |
RoHS compliant |
| Version Difference |
V.2 optimizes backlight uniformity & ESD performance vs V.1; fully pin-to-pin interchangeable |
| Production Status |
Discontinued notebook original panel, sufficient stock for replacement & embedded industrial projects |
