B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial

SKU: B156HAN02.4
Model P/N: B156HAN02.4
Diagonal Size: 15.6"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD  141PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$107.00 $104.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
1/1
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
  • Description
B156HAN02.4 AUO 15.6 Inch 1920×1080 LCD Panel For Industrial
Parameter Value
Manufacturer AUO (AU Optronics)
Panel Model B156HAN02.4
Panel Type a-Si TFT-LCD, AHVA (IPS), Normally Black, Transmissive
Diagonal Size 15.6-inch (15.55")
Resolution 1920 × 1080 (FHD, 16:9)
Active Area 344.16 × 193.59 mm
Outline Dimensions 350.66 × 216.15 × 3.2 mm
Pixel Format RGB Vertical Stripe
Pixel Pitch 0.17925 × 0.17925 mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.)
Color Depth 262K colors (6-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 25 ms (Typ.) (Tr+Td)
Viewing Angle 85/85/85/85° (L/R/U/D, CR≥10)
Surface Anti-glare (Matte)
Backlight WLED, Edge type, with driver, 15,000 hours lifetime
Refresh Rate 60 Hz

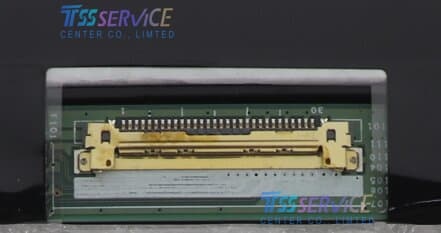

Signal Interface eDP 1.2, 2 lanes, 30 pins
Supply Voltage 3.3V (Typ.)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Status Mass Production (In Production)

Applications

  • Notebook PCs / Laptops (mainstream consumer & business laptops)
  • All-in-One (AiO) Desktop PCs
  • Portable monitors & secondary displays
  • Industrial HMI & control panels (indoor)
  • Medical monitoring devices (non-critical, indoor)
  • Gaming laptops & entry-level gaming displays
  • Thin & light computing devices
  • Industrial testing & measurement equipment
  • Vehicle infotainment & dashboard displays (indoor/non-automotive grade)
  • Embedded display systems for factory automation
