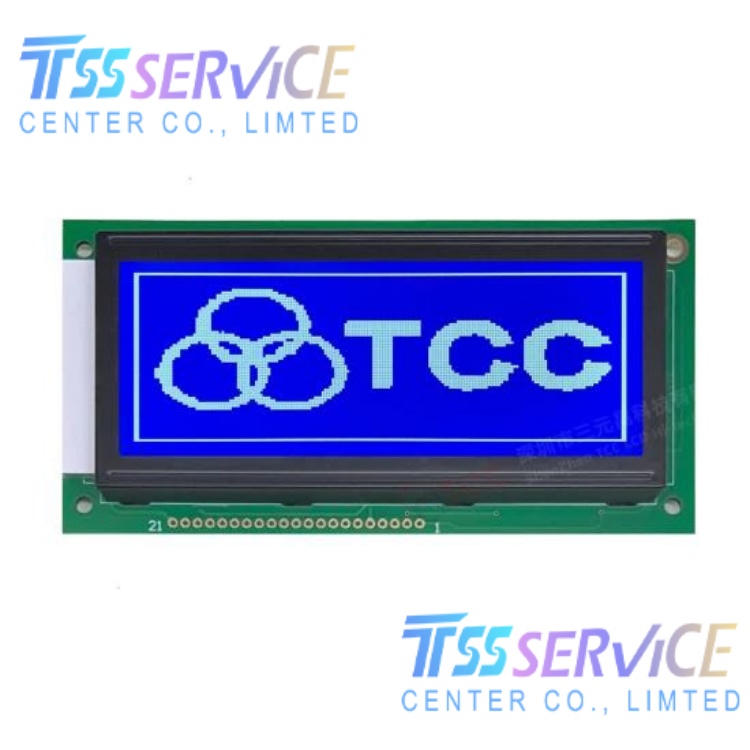

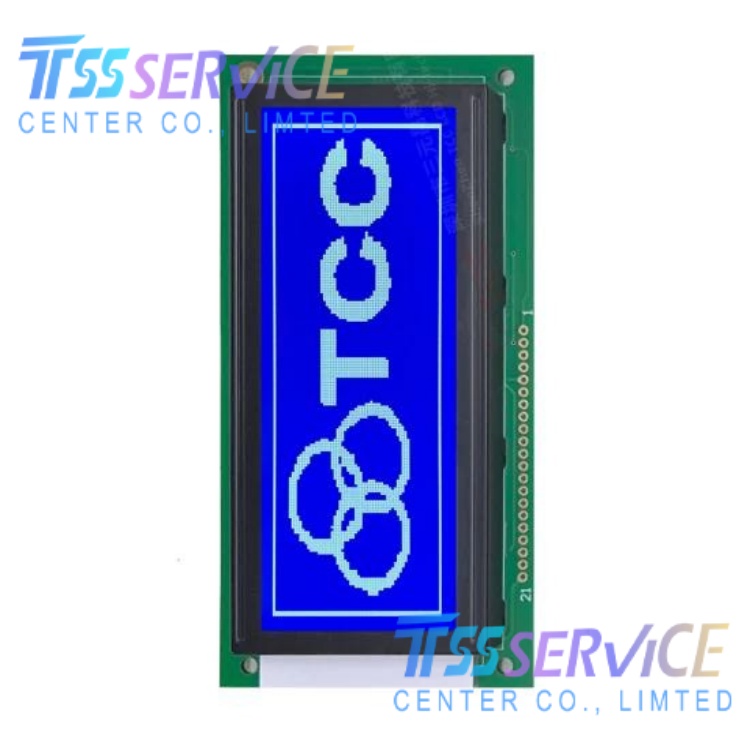

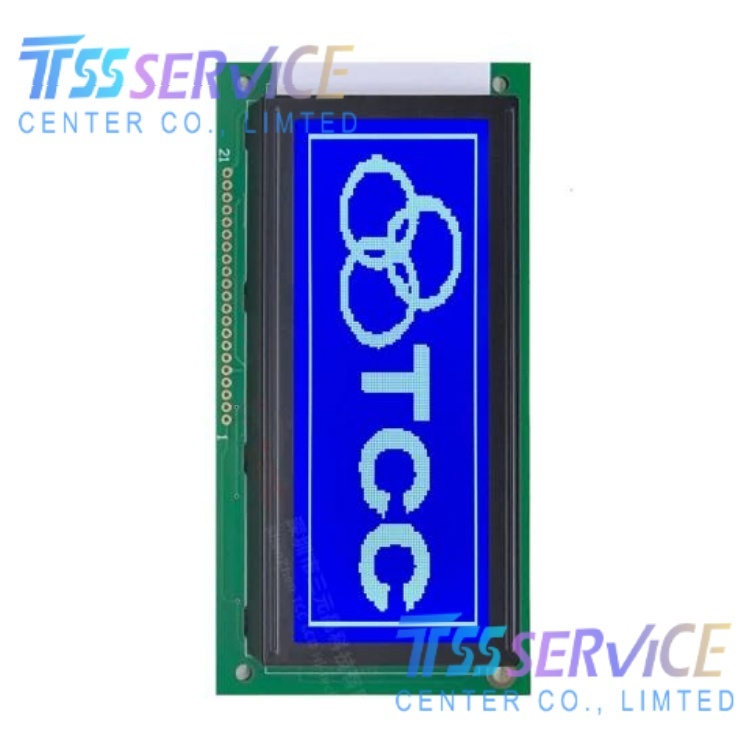

BG19264ABHHS 192×64 LCD Panel Display For Industrial

Name: BG19264ABHHS 192×64 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: BG19264ABHHS
Price: 82 USD
Availability: InStock

SKU: BG19264ABHHS

Model Number: BG19264ABHHS
Display Type: FSTN, Positive, Transflective
Dot Matrix: 192 (W) × 64 (H) Dots

0.0 (0 Reviews)

0 Sold

~~$85.00~~ $82.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

BG19264ABHHS 192×64 LCD Panel Display For Industrial

Parameter	Details
Manufacturer	Bolymin Inc. (UJ Light)
Model Number	BG19264ABHHS
Display Type	FSTN, Positive, Transflective
Dot Matrix	192 (W) × 64 (H) Dots
Module Size	130.0 (W) × 65.0 (H) × 12.5 (T) mm
View Area	104.0 (W) × 39.0 (H) mm
Active Area	97.486 (W) × 32.462 (H) mm
Dot Pitch	0.508 (W) × 0.508 (H) mm
Dot Size	0.458 (W) × 0.458 (H) mm
Driver IC	SBN0064G or equivalent
Interface	8-bit Parallel (MPU)
Backlight	LED, White (WLED)
Operating Voltage	5.0V (VDD)
Operating Temp.	-20°C ~ +70°C
Storage Temp.	-30°C ~ +80°C
Viewing Direction	6 o'clock
Duty / Bias	1/64 Duty, 1/9 Bias
RoHS Compliant	Yes

Typical Applications

Industrial Control Panels: Used in factory automation equipment, PLCs, and instrumentation.
Medical Devices: Portable monitors, diagnostic equipment, and healthcare devices.
Consumer Electronics: Audio players, instrumentation, and handheld gadgets.
Telecom Equipment: Routers, modems, and network interface panels.
Automotive & Aftermarket: Car audio, GPS, and dashboard displays.
Smart Home Devices: Control panels, thermostats, and security systems.
Test & Measurement: Digital multimeters, oscilloscopes, and signal generators.
