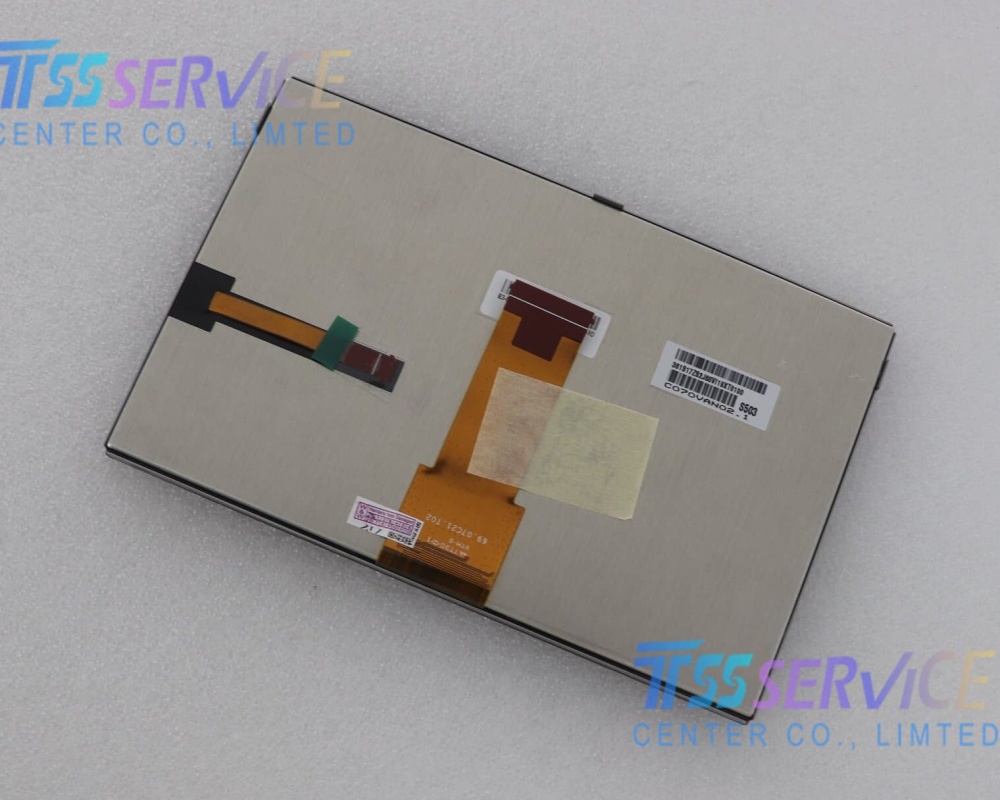

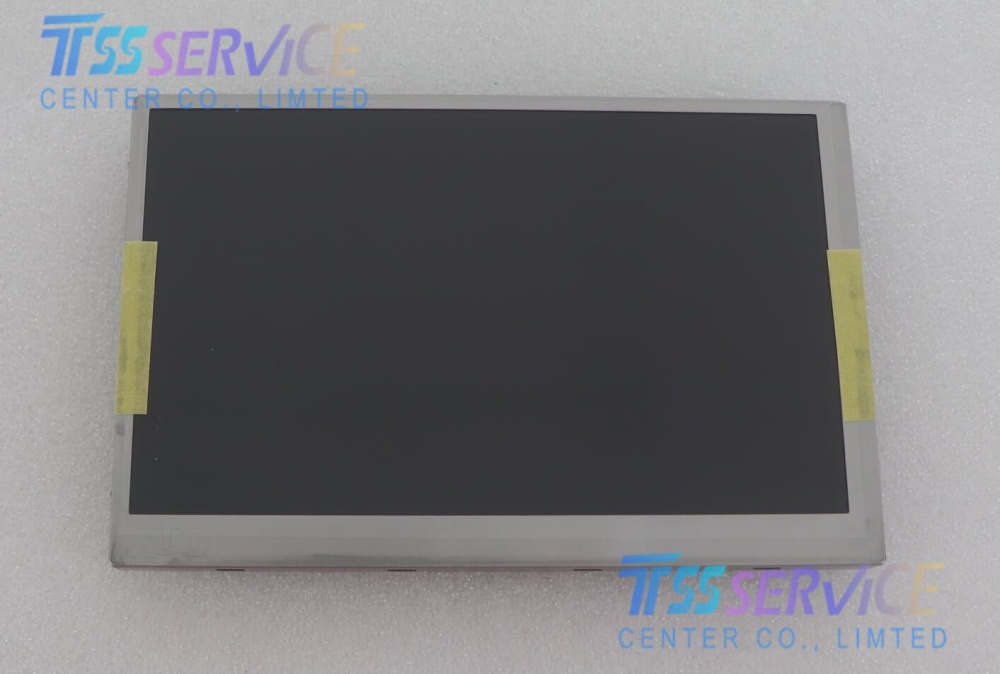

AUO C070VAN02.0 7 inch 800×480 LCD Dispaly Panel for industrial

Name: AUO C070VAN02.0 7 inch 800×480 LCD Dispaly Panel for industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: C070VAN02.0
Price: 50 USD
Availability: InStock

SKU: C070VAN02.0

Model P/N: C070VAN02.0
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800×480(RGB), WVGA 133PPI
Pixel Format: RGB Horizontal Stripe

0.0 (0 Reviews)

0 Sold

~~$52.00~~ $50.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AUO C070VAN02.0 7 inch 800×480 LCD Dispaly Panel for industrial

Parameter	Details
Diagonal Size	7.0 inches
Resolution	800 (RGB) × 480 (WVGA)
Pixel Configuration	RGB Horizontal Stripe
Display Mode	AHVA (IPS-type), Normally Black, Transmissive
Active Area (AA)	152.4 (W) × 91.44 (H) mm
Outline Dimensions	160.8 (W) × 101.1 (H) × 6.8 (T) mm
Surface Treatment	Anti-glare (Matte), Hard coating (3H)
Brightness (Typ.)	1000 cd/m² (Typ.)
Contrast Ratio (Typ.)	1000:1 (Transmissive)
Color Depth	16.7M Colors (6/8-bit)
Color Gamut	72% (CIE1931)
Response Time (Typ.)	9 ms (Tr) / 11 ms (Td)
Viewing Angle (CR≥100)	80° (U), 80° (D), 80° (L), 80° (R)
Backlight	WLED (White LED), Edge-type, 20,000 hours lifespan
Signal Interface	LVDS (1 channel, 8-bit), 50 pins
Input Voltage	3.3V
Operating Temperature	-30°C ~ +85°C
Storage Temperature	-40°C ~ +95°C
Vibration Resistance	2.9g (28.4 m/s²)
Weight	174 g (Typ.)
RoHS Compliance	Yes
Production Status	Mass Production (Discontinued )

C070VAN02.0 is a 7-inch high-performance automotive & industrial-grade AHVA (IPS) TFT-LCD module designed for extreme temperature, high brightness, and rugged environments. It is primarily targeted at automotive infotainment and industrial control applications.
