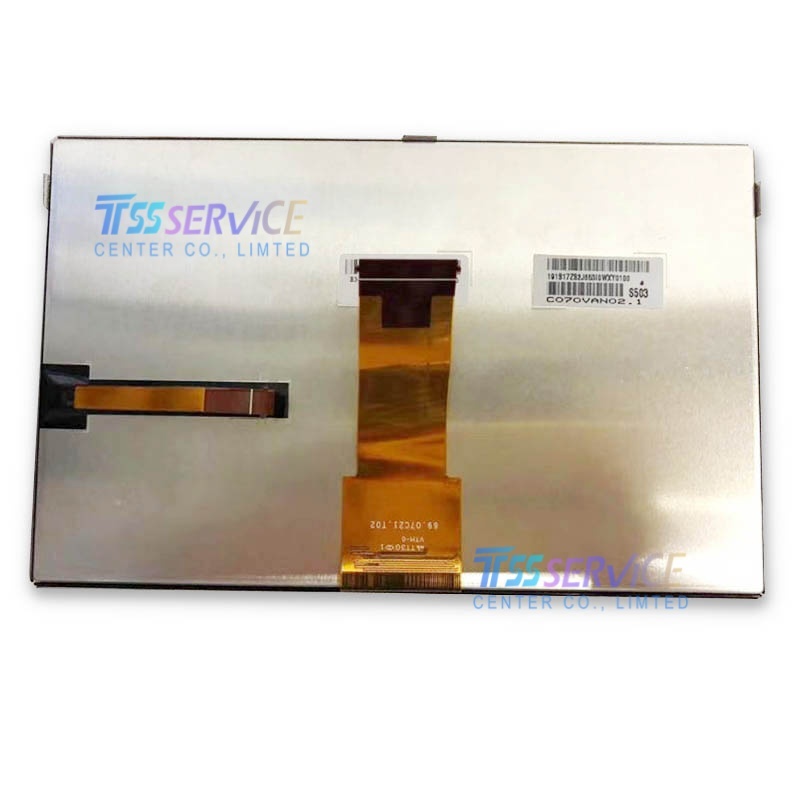

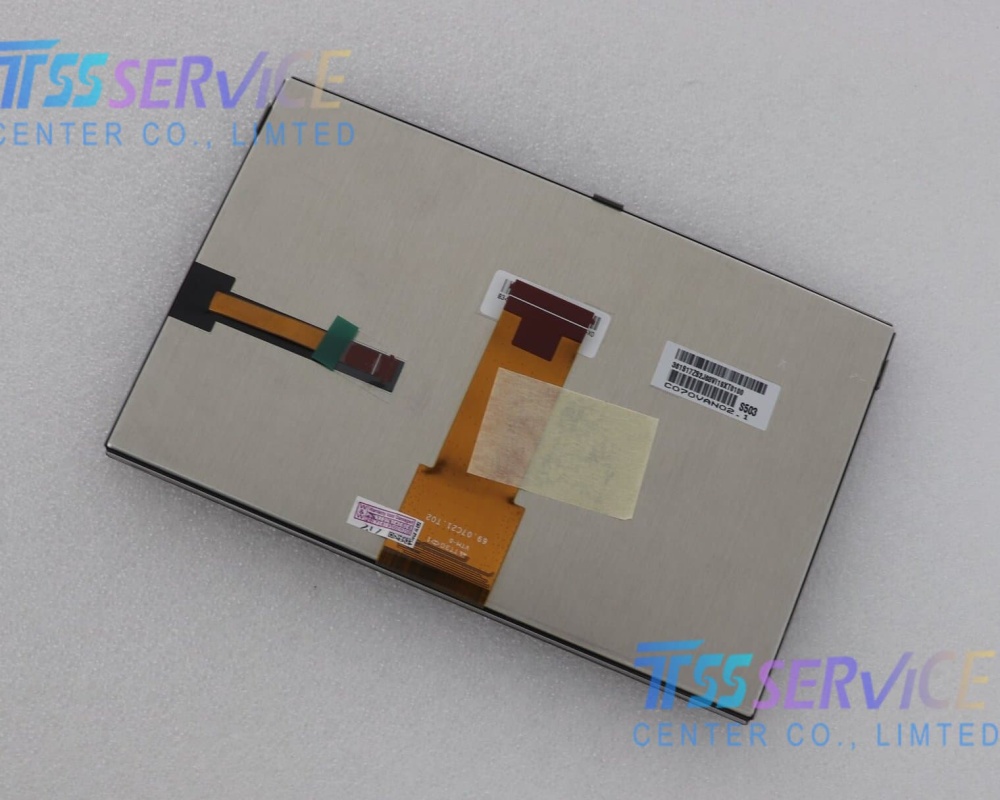

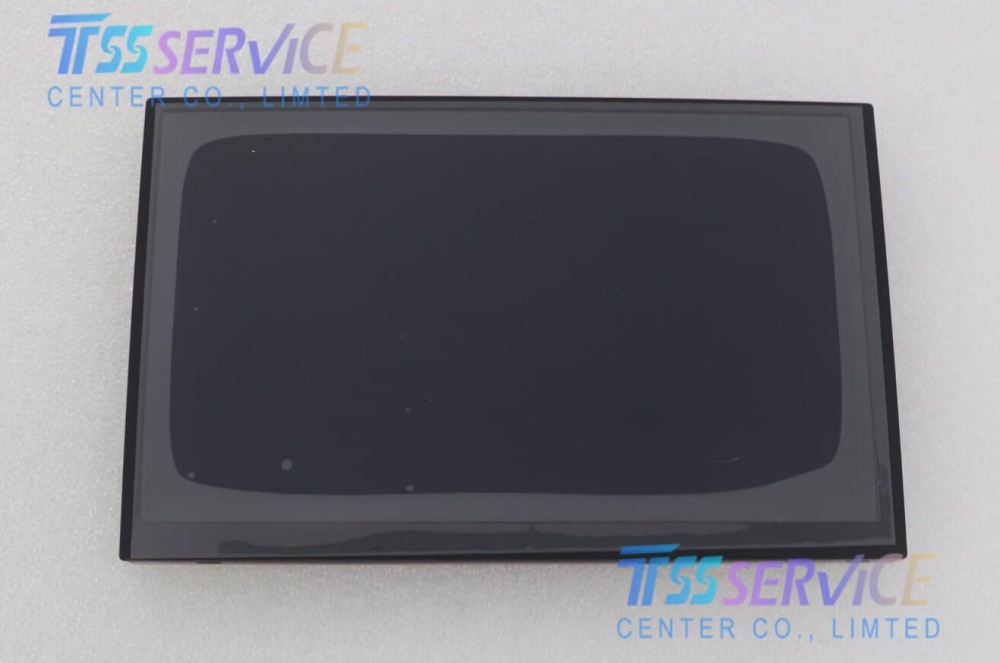

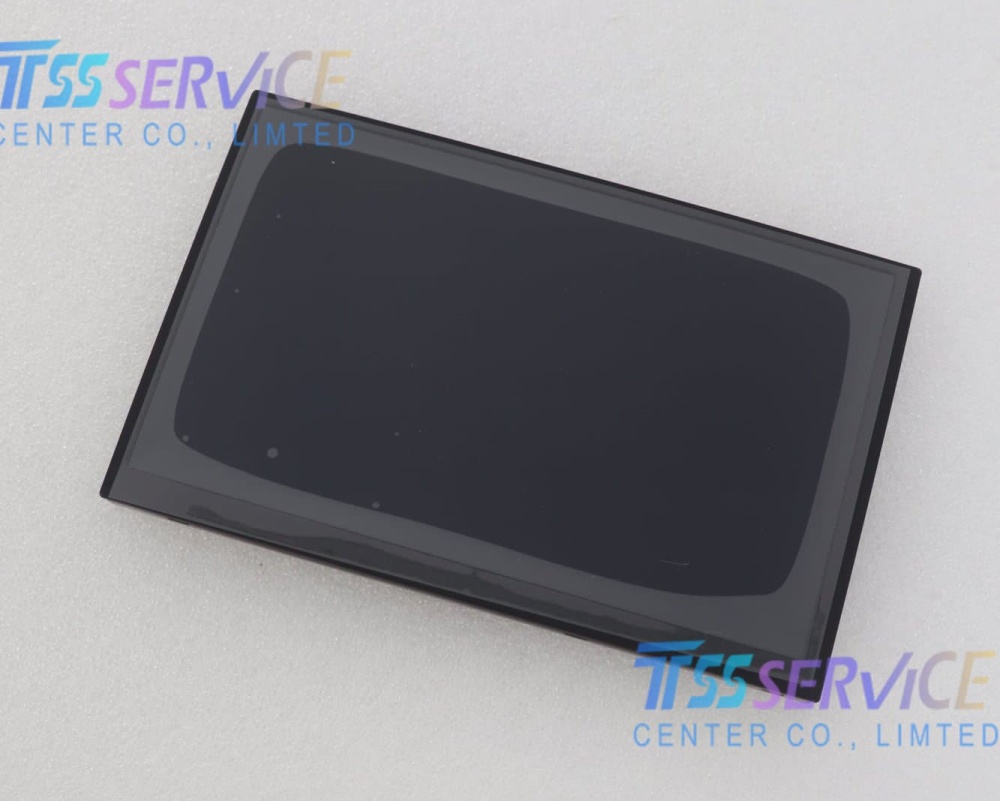

The C070VAN02.1 is a 7.0-inch TFT LCD module manufactured by AUO (AU Optronics), a leading global panel supplier. It offers a compact form factor with a standard 800×480 resolution, making it a versatile and widely used solution for a variety of embedded visual applications.
| Feature Category | Specification |
|---|---|
| Model | C070VAN02.1 |
| Manufacturer | AU Optronics (AUO) |
| Display Size | 7.0 inches |
| Active Area | 152.4(W)×91.44(H) mm |
| Resolution | 800 (RGB) × 480 pixels |
| Display Type | a-Si TFT-LCD, LCM |
| Brightness | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) | 80/80/80/80 (Typ.)(CR≥100) |
| Response Time | 15/15 (Typ.)(Tr/Td) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Backlight Type | LED, Edge-Light |
| Backlight Lifetime | 50,000 hours (Typical) |
| Interface | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Supply Voltage | 3.3V (Typical for logic & backlight) |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Industry | Use Cases |
|---|---|
| Automotive | In-vehicle infotainment, navigation displays, rear-seat entertainment, digital dashboards |
| Industrial | HMI terminals, factory automation, control panels |
| Outdoor Kiosks | Ticketing machines, information terminals |
| Medical | Patient monitoring systems (with appropriate certifications) |
| Marine | Navigation displays, onboard instrumentation |
