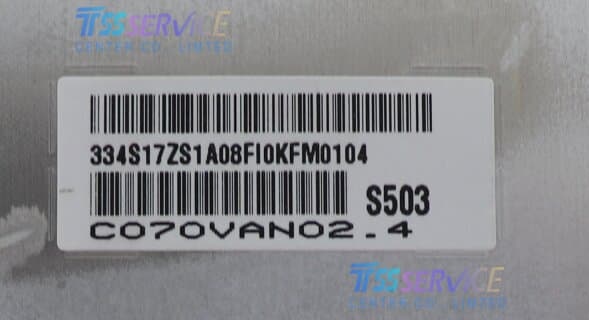

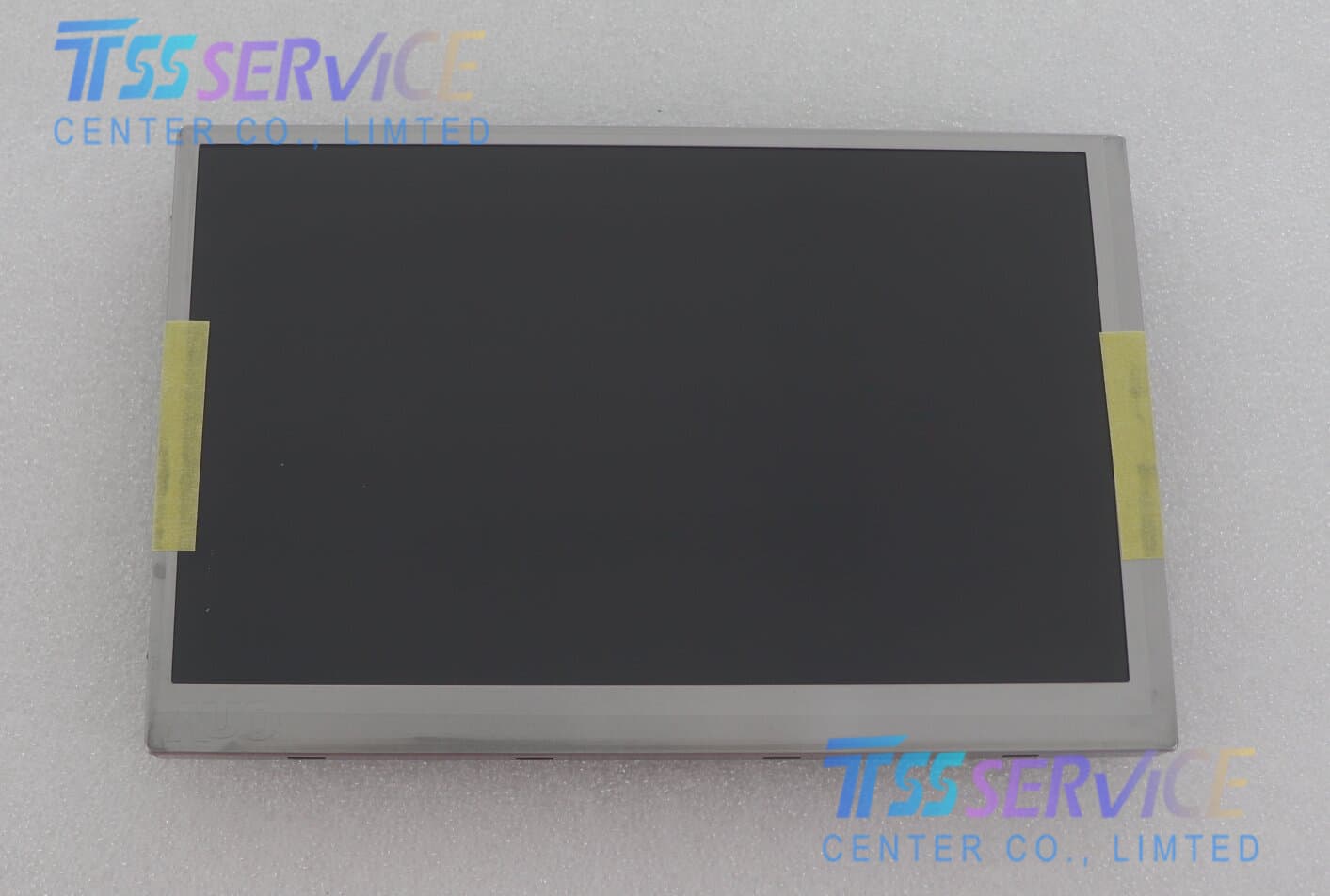

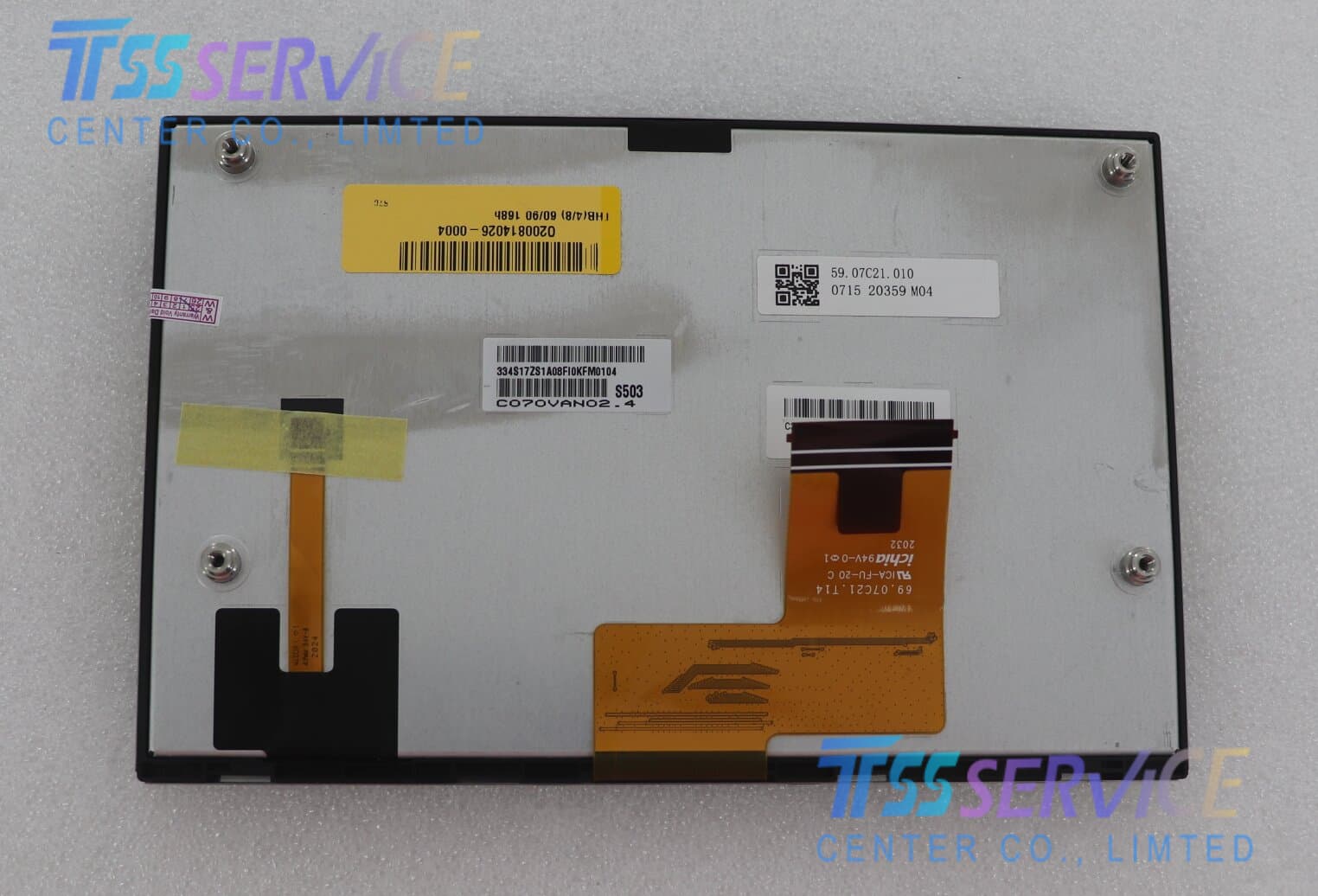

C070VAN02.4 AUO 7 inch 800×480 a-Si TFT-LCD Display Screen For Industrial
| Parameter |
Specification |
Unit |
| Model Number |
C070VAN02.4 |
– |
| Brand |
AUO |
– |
| Display Size |
7.0 (diagonal) |
inch |
| Resolution |
800 (H) × 480 (V) (WVGA) |
dots |
| Display Technology |
a-Si TFT-LCD, Transmissive |
– |
| Brightness (Typ.) |
1000 |
cd/m² (nits) |
| Contrast Ratio (Typ.) |
1000:1 |
– |
| Viewing Angle |
80/80/80/80 (L/R/U/D, CR≥10) |
° |
| Response Time (Typ.) |
9 (Tr) / 11 (Td) |
ms |
| Color Gamut |
NTSC 50% |
– |
| Display Colors |
16.7M (24-bit) |
– |
| Interface |
Parallel RGB (1ch, 8-bit) + SPI, 50-pin FPC |
– |
| Backlight |
WLED, edge-lit |
– |
| Backlight Lifetime |
50,000 (25°C) |
hours |
| Operating Voltage (VDD) |
3.3 |
V |
| Operating Temperature |
-30 ~ +85 |
°C |
| Storage Temperature |
-40 ~ +95 |
°C |
| Active Area (A.A.) |
152.4 × 91.44 |
mm |
| Outline Dimensions |
157.35 × 95.0 × 6.2 (max) |
mm |
| Weight |
≈210 |
g |
| Surface Treatment |
Anti-glare (AG) |
– |
| Touch Screen |
Optional (resistive/capacitive) |
– |
| Compliance |
RoHS, REACH, ISO9001 |
– |
Typical Applications (English)
- Automotive Displays: Car infotainment, navigation, rear-seat entertainment, dashboard terminals.
- Outdoor Kiosks & POS: Ticket vending machines, outdoor self-service terminals, fuel station displays.
- Industrial HMI & Control Panels: Factory automation, PLC, CNC, robotics, harsh environment HMIs.
- Marine & Rugged Systems: Boat navigation, marine instruments, rugged industrial tablets.
- Smart Home & Building Automation: Outdoor control panels, security terminals, HVAC controllers.
