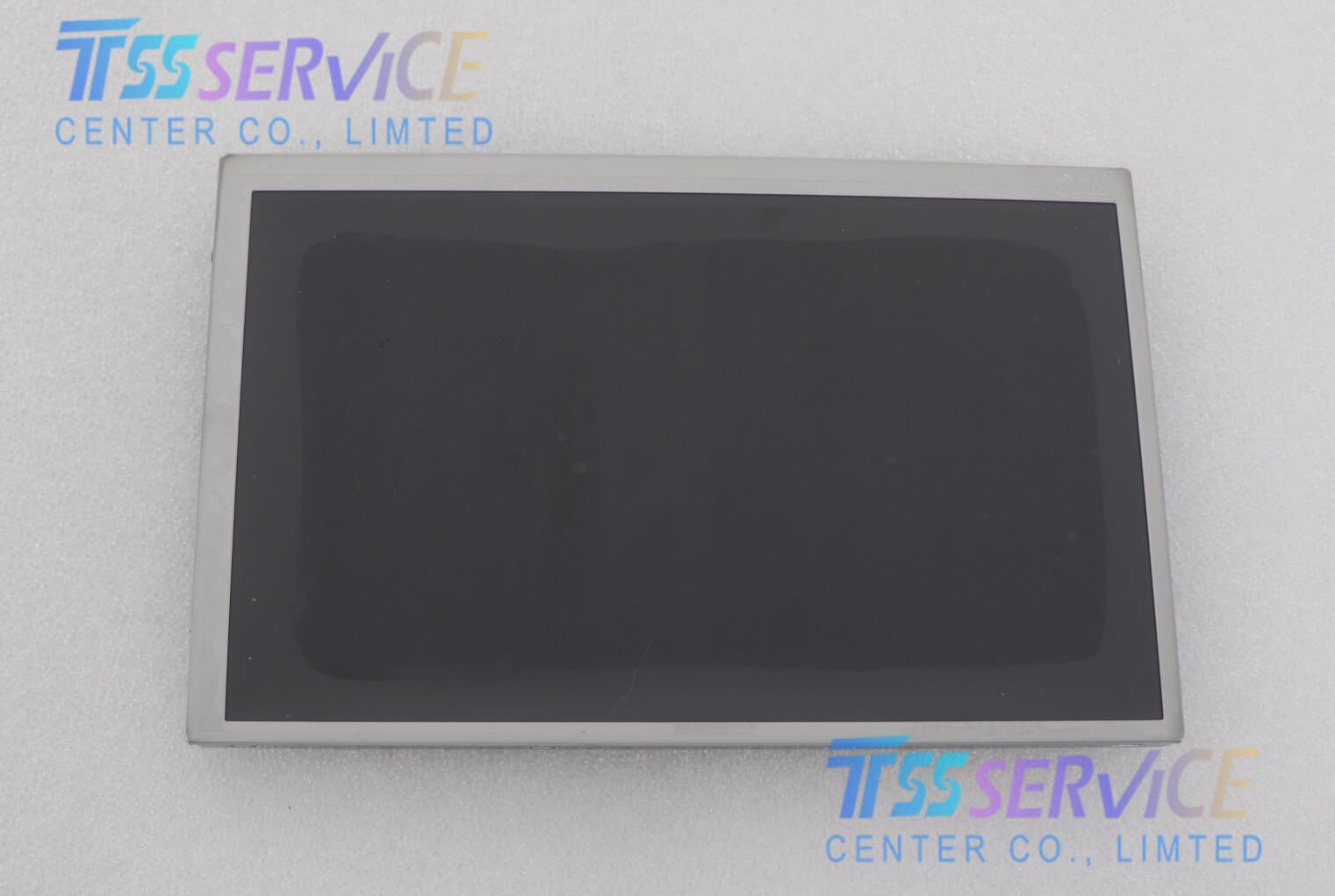

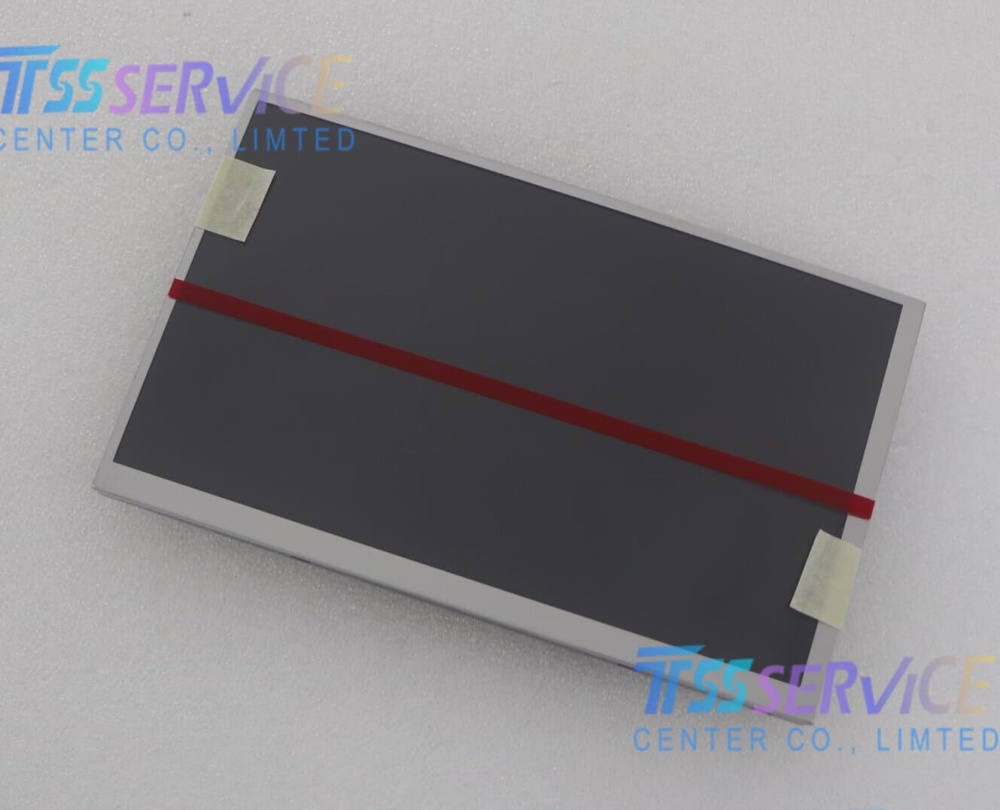

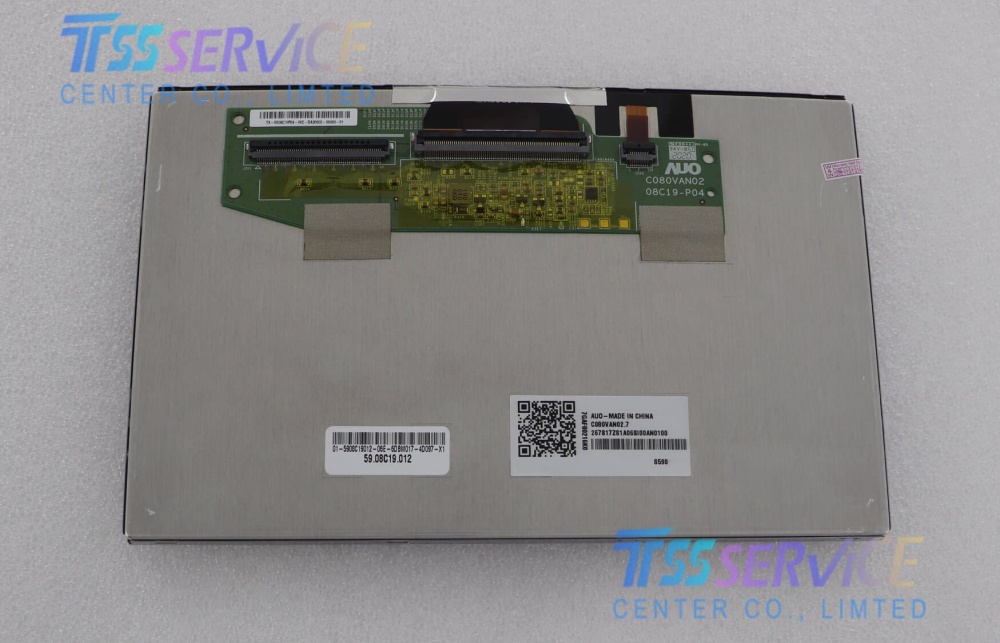

AUO C080VAN02.0 8 inch 800×480 LCD Dispaly Panel for industrial
| Parameter |
Details |
| Diagonal Size |
8.0 inches |
| Resolution |
800 (RGB) × 480 (WVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Display Mode |
Normally Black, Transmissive |
| Active Area (AA) |
174.0 × 104.0 mm (W×H) |
| Outline Dimensions |
186.0 × 116.0 × 6.5 mm (W×H×T) |
| Surface Treatment |
Anti-glare (Matte) |
| Brightness (Typ.) |
500 cd/m² |
| Contrast Ratio (Typ.) |
1000:1 (Transmissive) |
| Color Depth |
16.7M Colors (8-bit) |
| Color Gamut |
70% (CIE1931) |
| Response Time (Typ.) |
30 ms (Tr+Td) |
| Viewing Angle (CR≥10) |
80° (U), 80° (D), 80° (L), 80° (R) |
| Backlight |
WLED (White LED), Edge-type, 50,000 hours lifespan |
| Signal Interface |
TTL (RGB) 24-bit, 50 pins |
| Input Voltage |
3.3V |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Weight |
220 g (Typ.) |
| RoHS Compliance |
Yes |
| Production Status |
Mass Production (Discontinued) |
C080VAN02.0 is a high-brightness, wide-view 8.0-inch automotive & industrial-grade TFT-LCD module, widely used for:
- Car Central Information Displays (CID): Factory navigation, audio, and climate control screens.
- Rear-Seat Entertainment (RSE): Headrest DVD players and video monitors.
- Vehicle Dashboard Displays: Digital instrument clusters and HUD secondary screens.
- Automotive Diagnostic Tools: Professional OBD scan tools and ECU programmers.
- Industrial HMI Panels: Human-machine interfaces for PLCs and machinery.
- Portable Test & Measurement: Oscilloscopes, multimeters, and data loggers.
- Factory Control Terminals: Compact operator panels and monitoring systems.
- Small Boat GPS Chartplotters: Marine navigation and fishfinder displays.
- Outdoor Vehicle Displays: ATV, UTV, and heavy equipment dash screens.
- Bedside Patient Monitors: Vital signs and bedside care displays.
- Portable Diagnostic Devices: Handheld ultrasound and medical scanners.
- POS Terminals & Kiosks: Touchscreen retail and self-service systems.
- Gaming & Amusement: Slot machine and casino game displays.
- Vehicle Tracking & Telematics: Fleet management and mobile data terminals.
