C101UAB01.0 AUO 10.1 inch 1920×1200 LCD Panel Screen For Industrial

Name: C101UAB01.0 AUO 10.1 inch 1920×1200 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: C101UAB01.0
Price: 160 USD
Availability: InStock

SKU: C101UAB01.0

Model P/N: C101UAB01.0
Diagonal Size: 10.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1200, WUXGA 224PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$165.00~~ $160.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

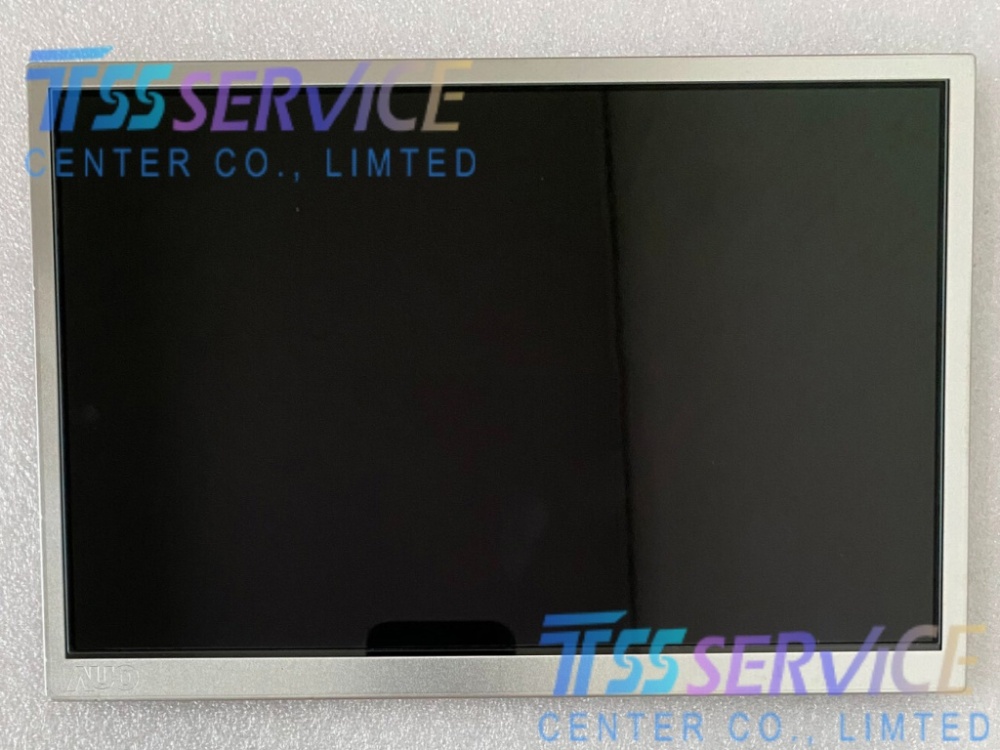

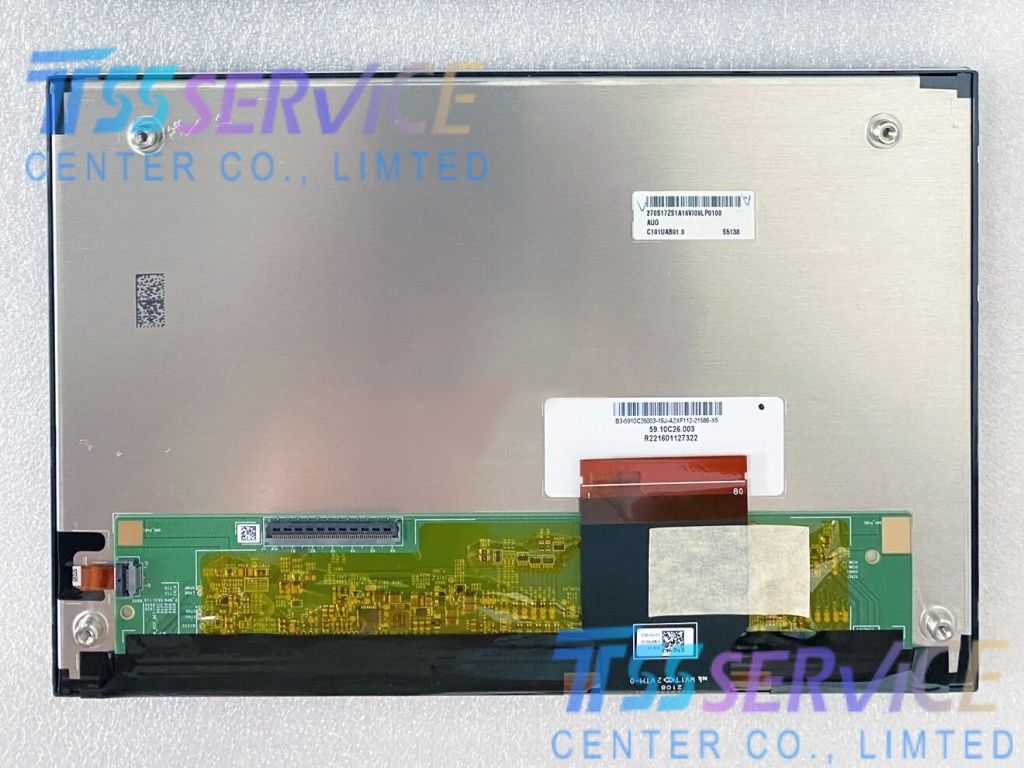

C101UAB01.0 AUO 10.1 inch 1920×1200 LCD Panel Screen For Industrial

Parameter	Value
Brand	AU Optronics (AUO)
Model	C101UAB01.0
Panel Type	a‑Si TFT‑LCD, IPS (AHVA), LCM
Diagonal Size	10.1 inches
Resolution	1920(RGB) × 1200 (WUXGA), 224 PPI
Aspect Ratio	16:10
Active Area	217.44(W) × 135.9(H) mm
Outline Dimension	234.8(W) × 158.1(H) × 10.16(D) mm
Surface Treatment	Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.)
Display Colors	16.7M (8‑bit)
Response Time	25 ms (Typ.)
Viewing Angle	80/80/80/80° (Typ., CR≥10)
Backlight	WLED, 60,000 hrs (Typ.)
Interface	LVDS (2 CH, 8‑bit), 60‑pin connector
Supply Voltage	3.3 V (Typ.)
Refresh Rate	60 Hz
Weight	608 g
Operating Temp	−30°C to +85°C
Storage Temp	−40°C to +95°C
Vibration Resistance	2.9G (28.4 m/s²)
RoHS	Compliant

C101UAB01.0 is designed for industrial, automotive, medical, and commercial display applications requiring high reliability, wide temperature tolerance, and stable performance.
