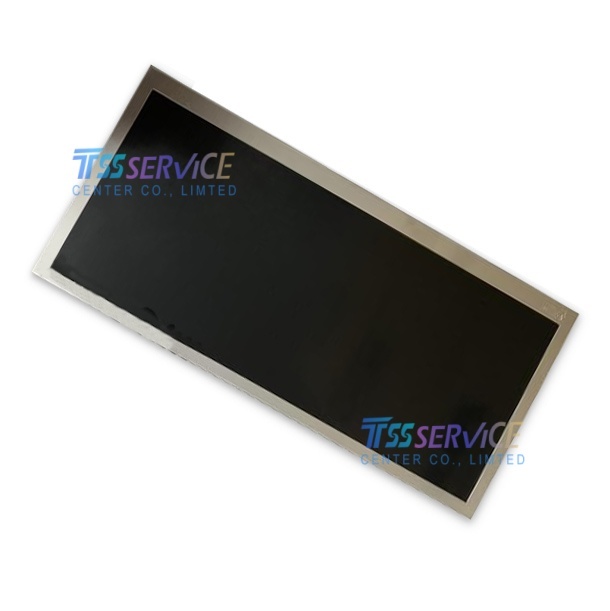

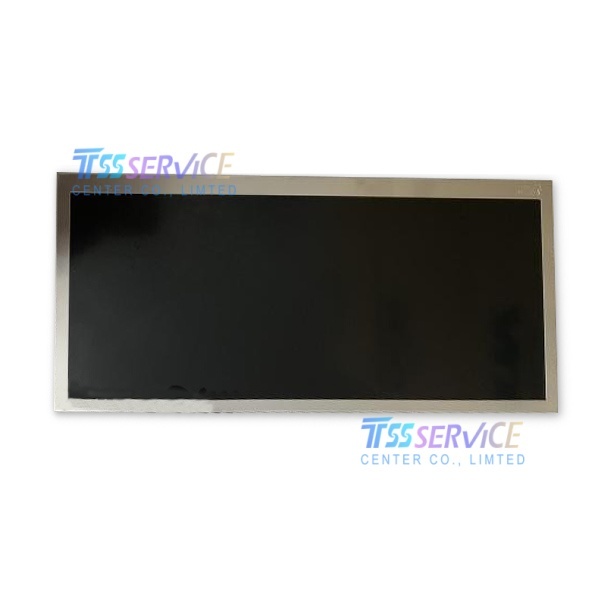

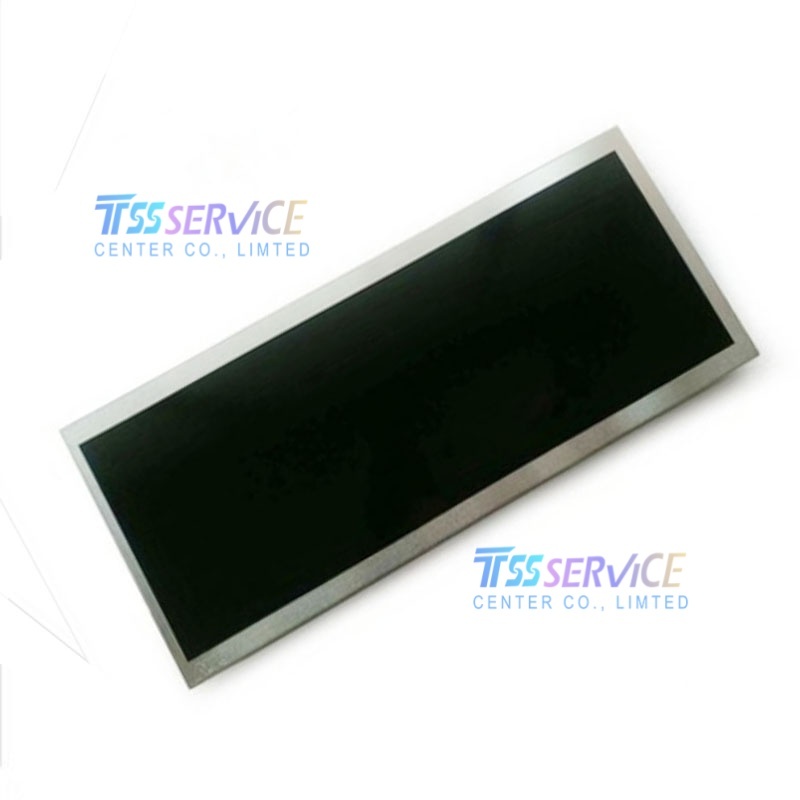

AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial

SKU: C123HAN02.5
Model: C123HAN02.5
Brand: AUO
Size: 12.3 (diagonal) inch
Resolution: 1920 (H) × 720 (V)
0.0 (0 Reviews)
0 Sold
$192.00 $190.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
1/1
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
  • Description
AUO 12.3 inch 1920×720 LCD Panel Display C123HAN02.5 For Industrial
Parameter Specification Unit
Model C123HAN02.5 –
Brand AUO  –
Size 12.3 (diagonal) inch
Resolution 1920 (H) × 720 (V) (Full HD Wide) dots
Technology a-Si TFT-LCD –
Brightness (Typ./Min.) 600 (550 min) cd/m² (nits)
Contrast Ratio (Typ.) 1000:1 –
Viewing Angle 80/80/80/80 (L/R/U/D, CR≥10) °
Response Time (Typ.) 15 (Tr) / 45 (Td) ms
Color Gamut NTSC 75% –
Display Colors 16.7M (24-bit, 8-bit) –
Interface LVDS (2-channel, 8-bit), 40-pin –
Backlight WLED, edge-lit, 8s4p, no driver –
Backlight Lifetime 10,000 (25°C) hours
Operating Voltage (VDD) 3.3 (3.0–3.6) V
Operating Temperature -30 ~ +85 °C
Storage Temperature -40 ~ +95 °C
Active Area (A.A.) 292.032 × 109.512 mm
Outline Dimensions 310.75 × 129.86 × 16.23 mm
Weight ≈570 (±57) g
Surface Matte (AG, anti-glare) –
Touch Optional (resistive/capacitive) –
Compliance RoHS, REACH, ISO9001 –

Typical Applications

  • Automotive Cockpit Displays: Digital dashboards, central infotainment systems, head-up displays (HUD).
  • Industrial HMI & Control Panels: Factory automation, PLC, CNC, robotics, process control terminals.
  • Rugged Embedded Systems: Industrial tablets, vehicle-mounted terminals, marine navigation equipment.
  • Smart Kiosks & POS: Wide-screen self-service terminals, ticket vending machines, fuel station displays.
  • Building Automation: HVAC control panels, security monitoring terminals, smart building control systems.
