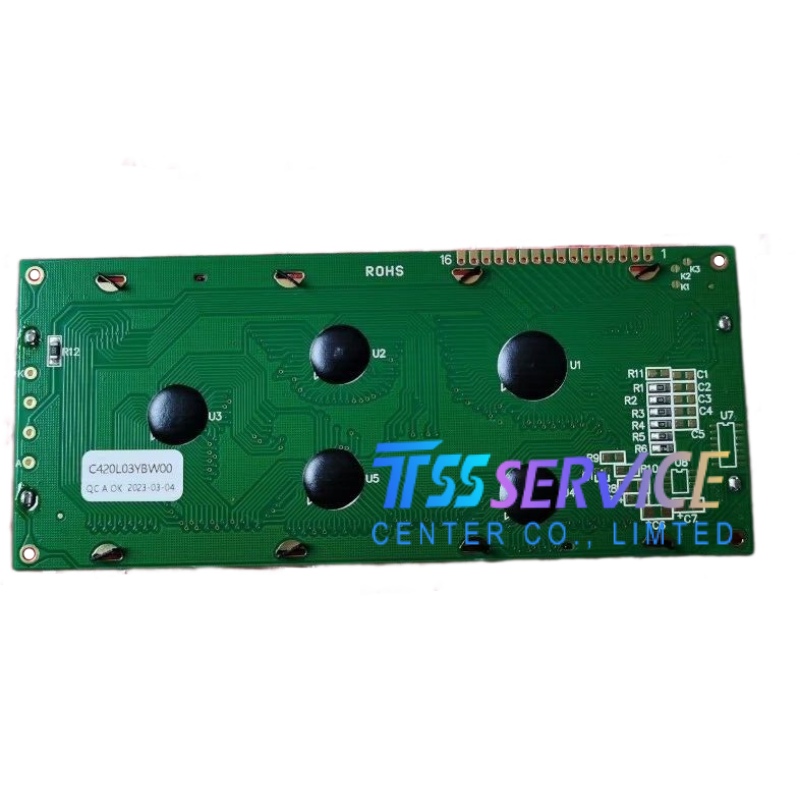

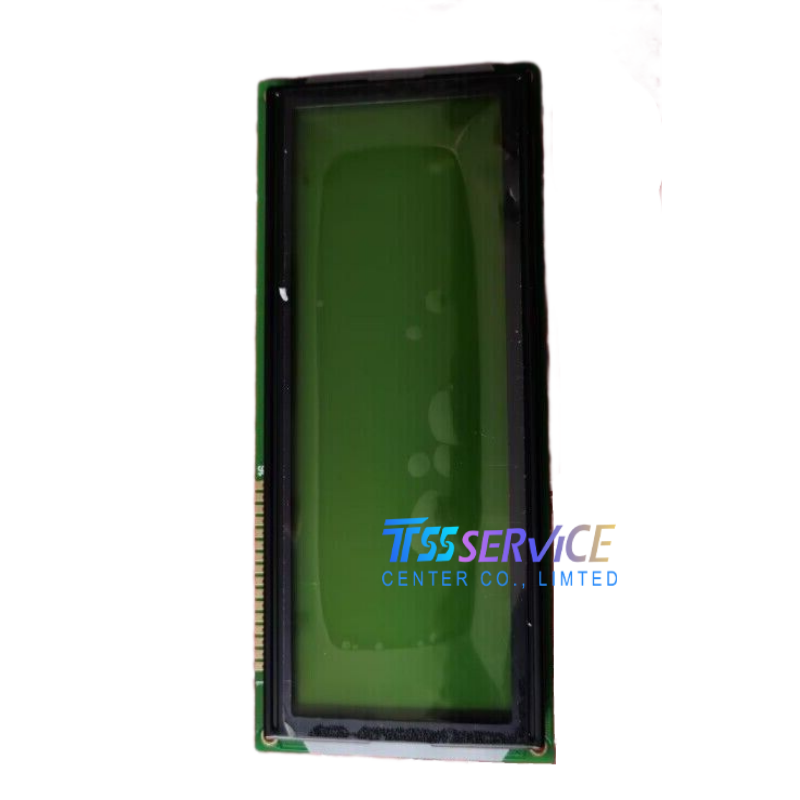

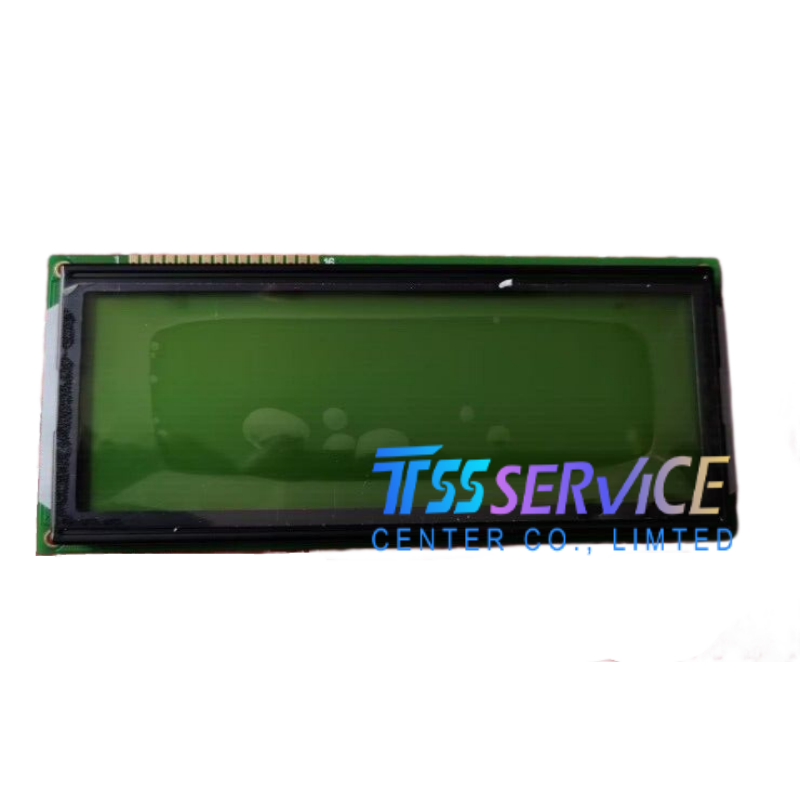

C420L03YBW00 compatible LCD Panel Display For Industrial

SKU: C420L03YBW00
Item:  C420L03YBW00
Condition: New
Warranty: 90 Days
Lead Time: 1-3 Working days
Shipping: DHL ,FedEx, EMS , SF express  or 4px.
Note: All LCD display panels will be tested before shipping.
0.0 (0 Reviews)
0 Sold
$103.00 $100.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
1/1
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • C420L03YBW00 compatible LCD Panel Display For Industrial
  • Description
C420L03YBW00 compatible LCD Panel Display For Industrial
Parameter Specification
Model C420L03YBW00
Display Type STN (Super Twisted Nematic), Positive
Resolution 40 Characters × 4 Lines
Dot Format 5 × 8 dots per character
Backlight Side-lit LED, Yellow-Green (Y)
Brightness 100 cd/m² (typical)
Contrast Ratio 2.3:1 (typical)
Interface 8-bit parallel, 16-pin header
Supply Voltage 5 V DC
Operating Temp −20 °C to +70 °C
Storage Temp −30 °C to +80 °C
Outline Dimensions 146 × 62 × 13 mm
Active Area 122 × 44 mm
RoHS Compliant

Typical Applications

  • Industrial control panels (PLC, HMI, factory automation)
  • Test & measurement equipment
  • Medical devices (patient monitors, diagnostic tools)
  • Telecom infrastructure & network devices
  • Office automation (printers, copiers, industrial terminals)
  • Consumer appliances (home automation, smart meters)
  • Marine & automotive industrial displays
  • Handheld & portable instruments
