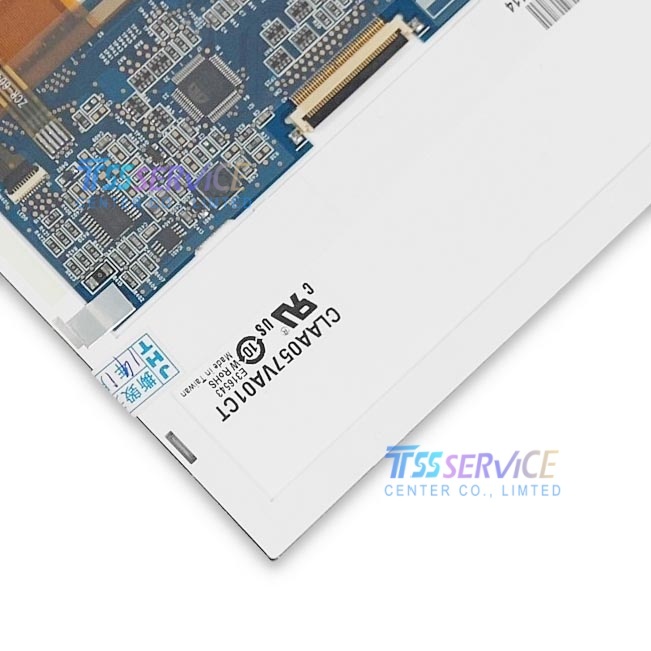

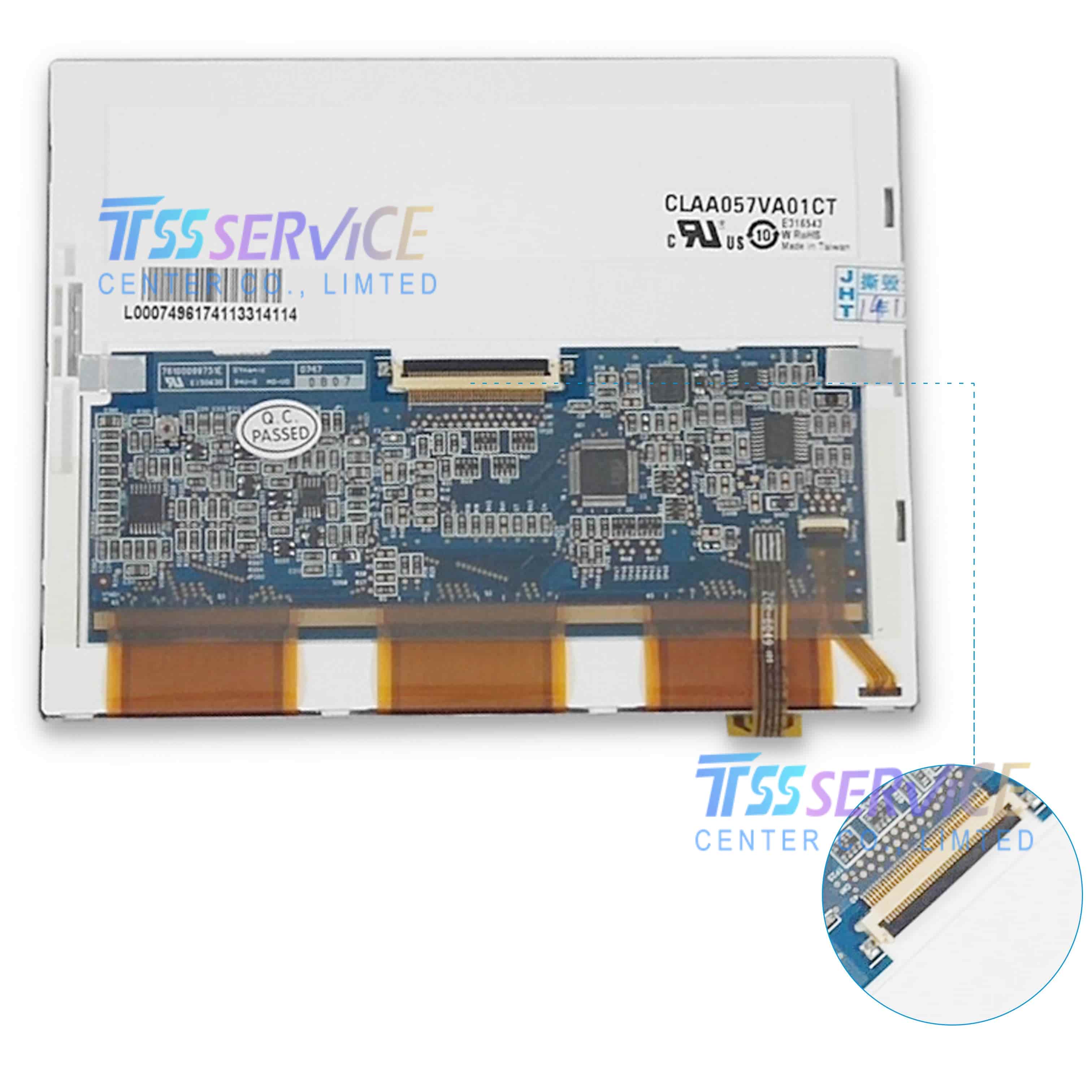

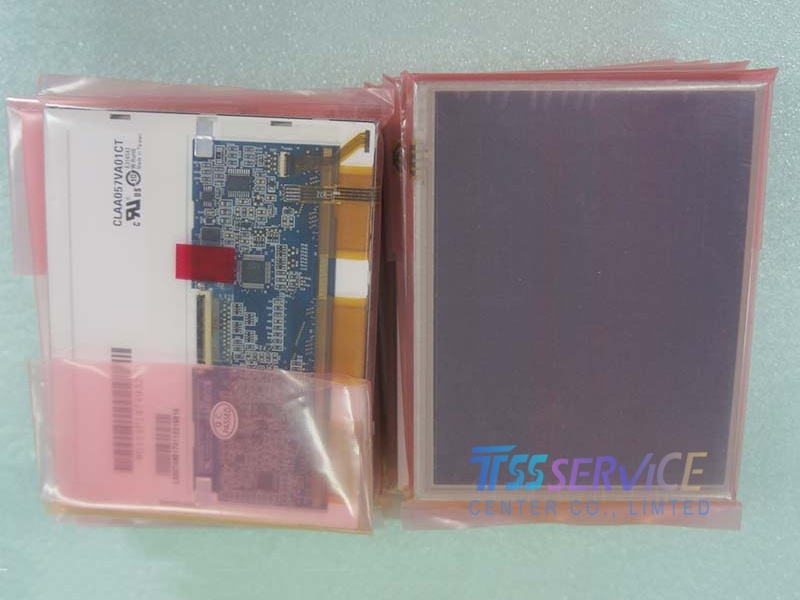

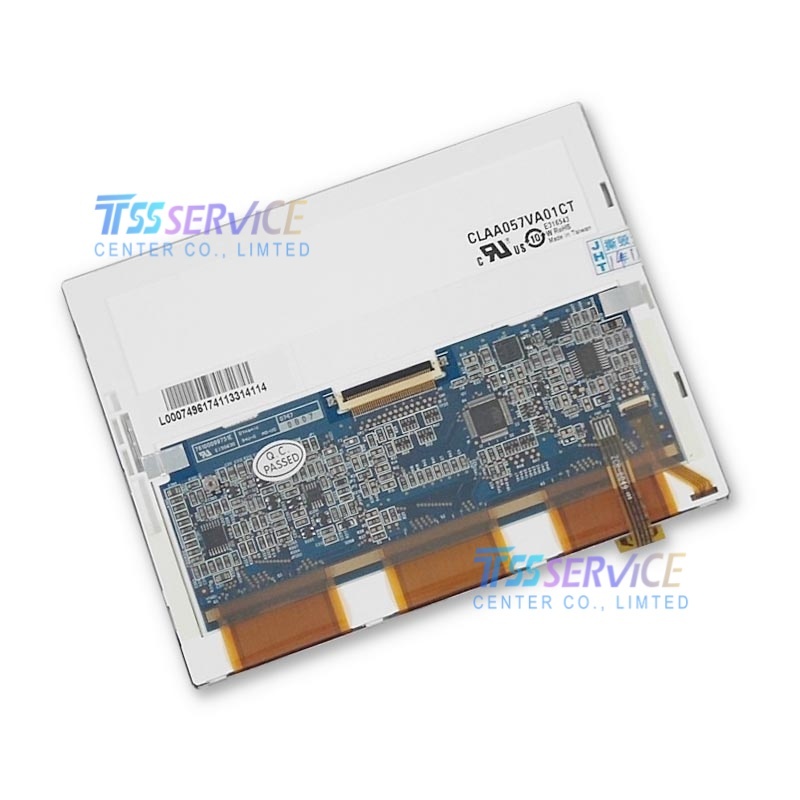

CLAA057VA01CT 5.7inch 640×480 VGA Industrial LCD Display Panel

Name: CLAA057VA01CT 5.7inch 640×480 VGA Industrial LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: CLAA057VA01CT
Price: 55 USD
Availability: InStock

SKU: CLAA057VA01CT

1，Condition: New，Grade A

2，Description: CLAA057VA01CT 5.7inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$60.00~~ $55.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The CLAA057VA01CT is a 5.7-inch industrial-grade a-Si TFT-LCD display module manufactured by CPT (Chunghwa Picture Tubes). Featuring VGA resolution (640×480) with a 4:3 aspect ratio, this panel is specifically designed for demanding industrial environments. It comes with an integrated 4-wire resistive touch screen and a built-in LED driver, making it a complete display solution for industrial control, medical equipment, and handheld devices .

Parameter	Specification
Brand	CPT
Model	CLAA057VA01CT
Diagonal Size	5.7 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	640(RGB)×480, VGA, 4:3
Dot Layout	RGB Vertical Stripe
Active Area	116.16(H) × 87.12(V) mm
Physical Size	127(H) × 98.43(V) × 8.15(D) mm
Mass	132 g (Typ.)
Surface Coating	Antiglare, Hard coating (3H)
Luminance	180 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	30 ms (Typ.) (Tr+Td)
Viewing Angle	70/70/40/60 (Typ.) (CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K, 50% NTSC

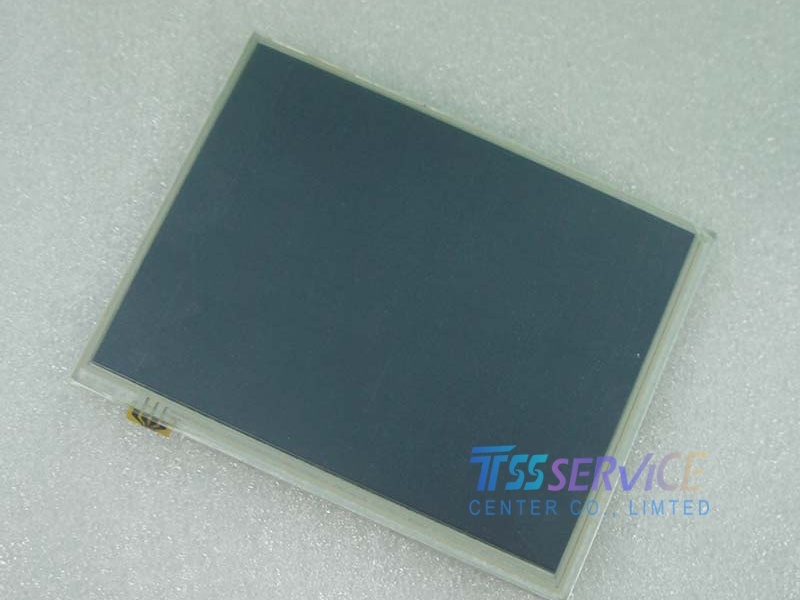

Touch Panel	4-wire Resistive Touch
Power Usage	2.0W (Typ.)
Light Source	WLED, 20K hours, With LED Driver
Frame Rate	60 Hz
Interface Type	TTL (1 ch, 6-bit), 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85°C; Storage Temp.: -40 ~ 95°C

Typical Applications

Application Category	Specific Uses
Industrial Control	HMIs, CNC machines, PLC interfaces
Medical Equipment	Patient monitors, diagnostic devices
Handheld Devices	Portable terminals, data loggers
Outdoor Equipment	Kiosks, marine displays, automotive systems
Test & Measurement	Oscilloscopes, signal analyzers
Factory Automation	Production line monitoring
