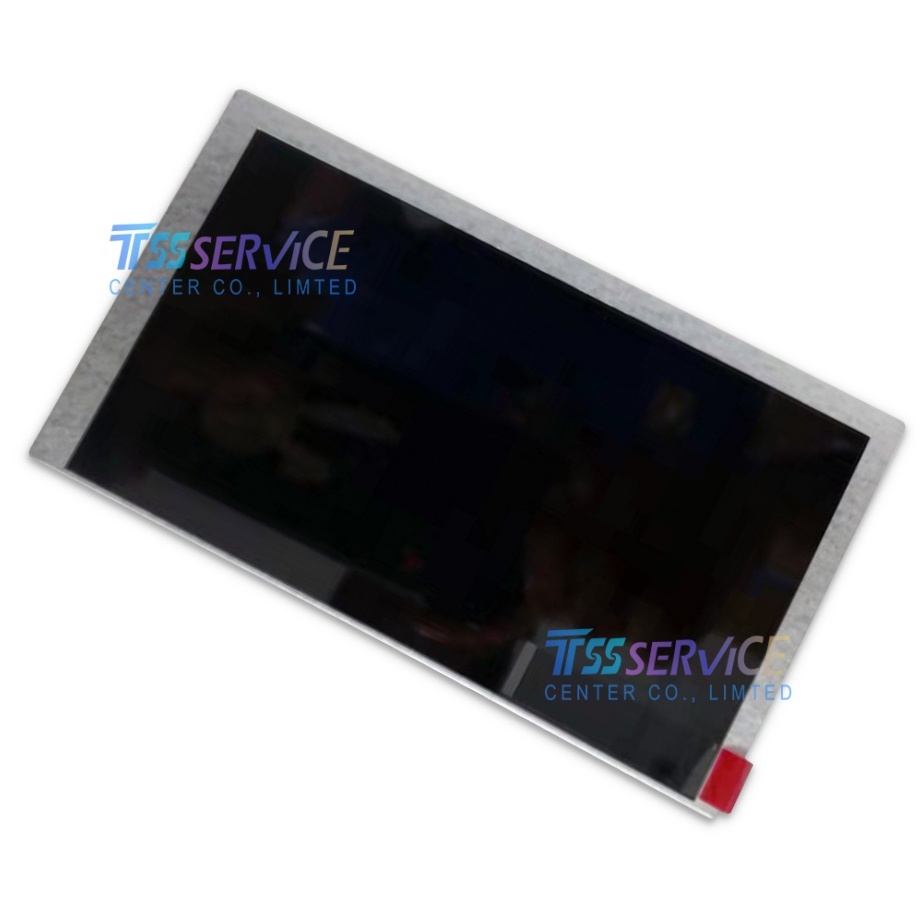

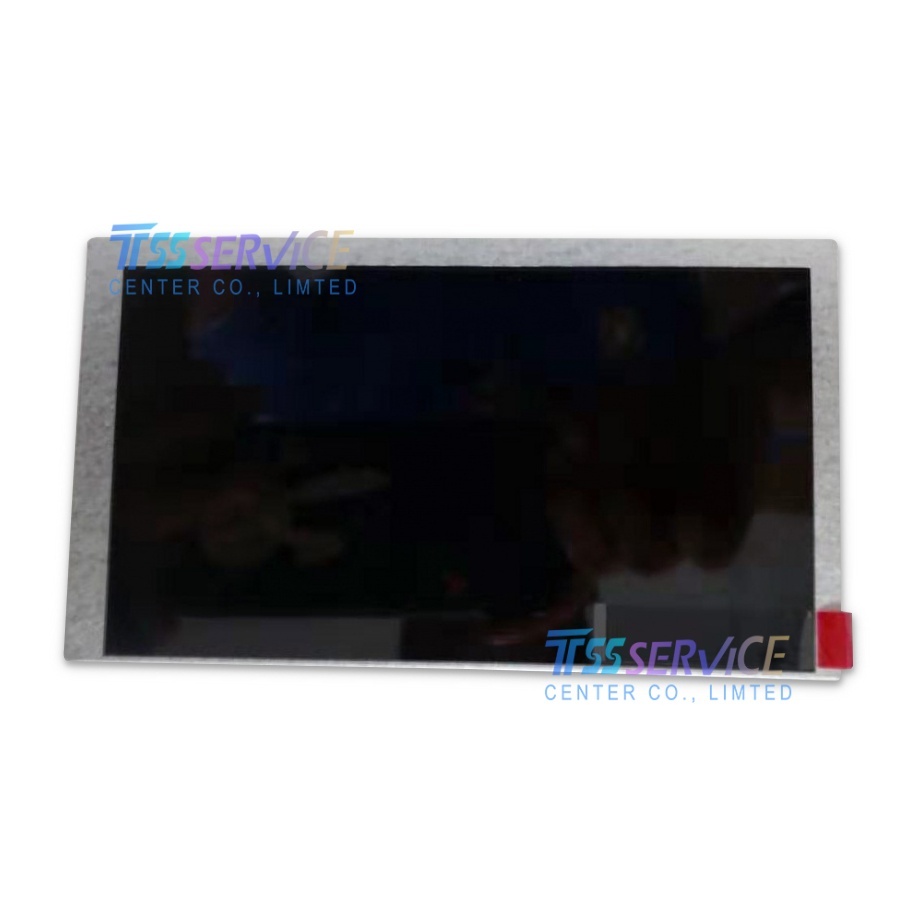

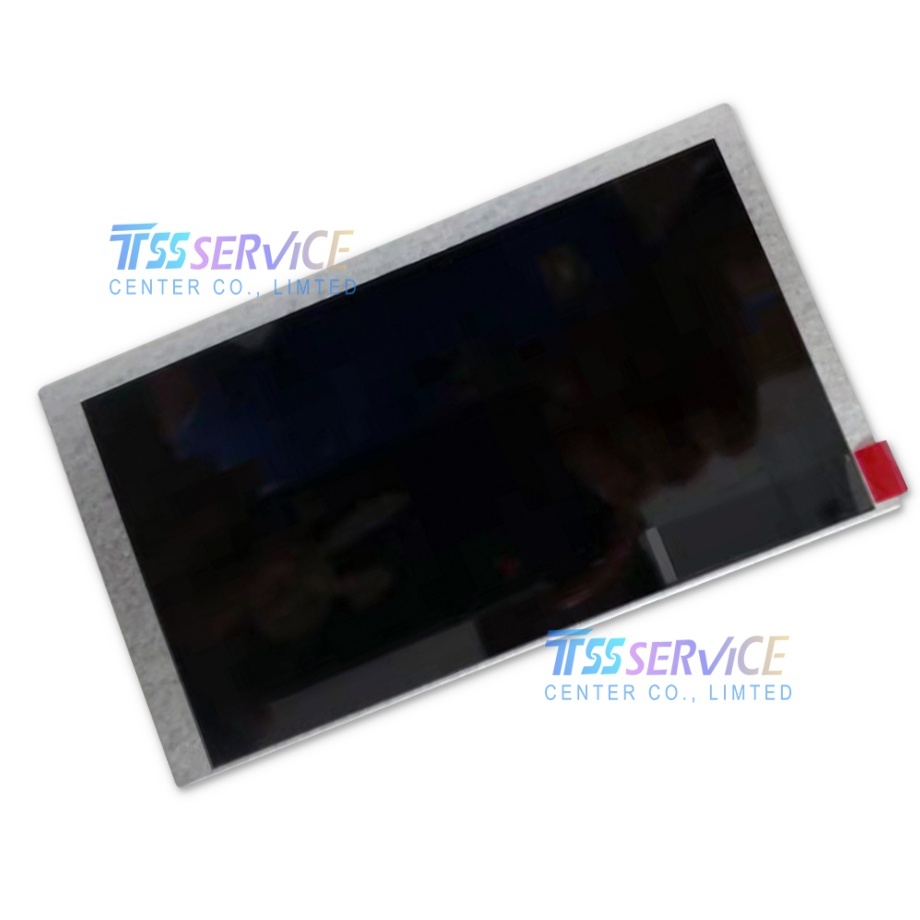

CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module

SKU: CLAA062LB01CW
Model: CLAA062LB01CW
Brand: CPT (Chunghwa Picture Tubes)
Screen Size: 6.2 inches
Panel Type: a-Si TFT-LCD (TN)
Resolution: 800 (RGB) × 480 (WVGA)
0.0 (0 Reviews)
0 Sold
$130.00 $125.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
1/1
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
  • Description
CLAA062LB01CW CPT 6.2" WVGA TFT-LCD 800×480 High Brightness Industrial Display Module
Parameter Details
Model CLAA062LB01CW
Brand CPT (Chunghwa Picture Tubes)
Screen Size 6.2 inches
Panel Type a-Si TFT-LCD (TN)
Resolution 800 (RGB) × 480 (WVGA)
Brightness 710 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.)
Viewing Angle 75/75/70/70 (CR≥10)
Color Depth 16.7M colors, 70% NTSC
Backlight 3S9P WLED, 30,000 hours, no driver
Interface LVDS (1 ch, 8-bit), 40 pins FPC
Operating Voltage 3.3/10.5/20/-6V (Typ.)(DVDD/AVDD/VGH/VGL)
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Panel Weight 120g
Lifespan 30,000 hours (Backlight)
Compliance RoHS

Applications(具体应用)

  • Industrial HMI & Control: PLC, industrial touch panels, factory automation equipment, and CNC machinery.
  • Automotive Displays: In-vehicle infotainment, dashboard displays, and rear-seat entertainment systems.
  • Outdoor & Logistics Terminals: Handheld scanners, warehouse management devices, and outdoor kiosks requiring high brightness.
  • Medical Devices: Patient monitors, diagnostic equipment, and portable medical instruments.
  • Smart Instruments: Energy management systems, environmental monitoring devices, and industrial test equipment.
