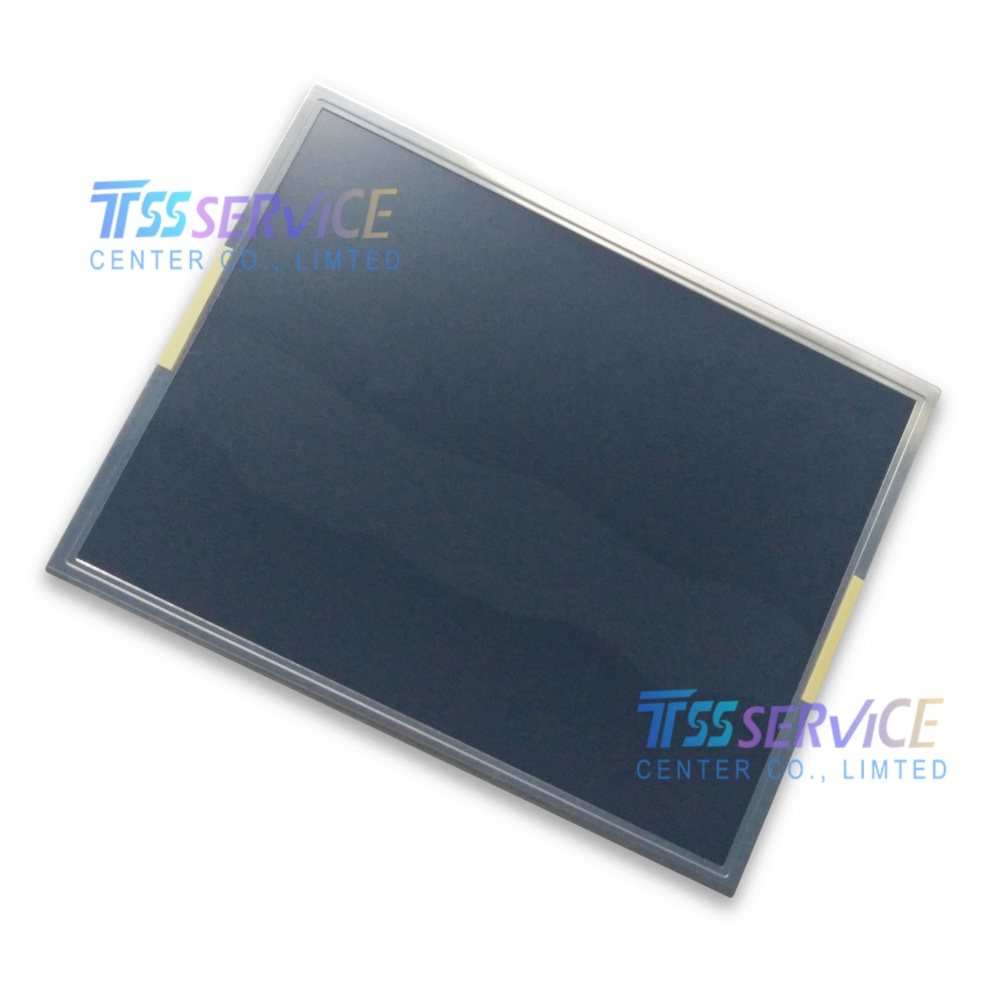

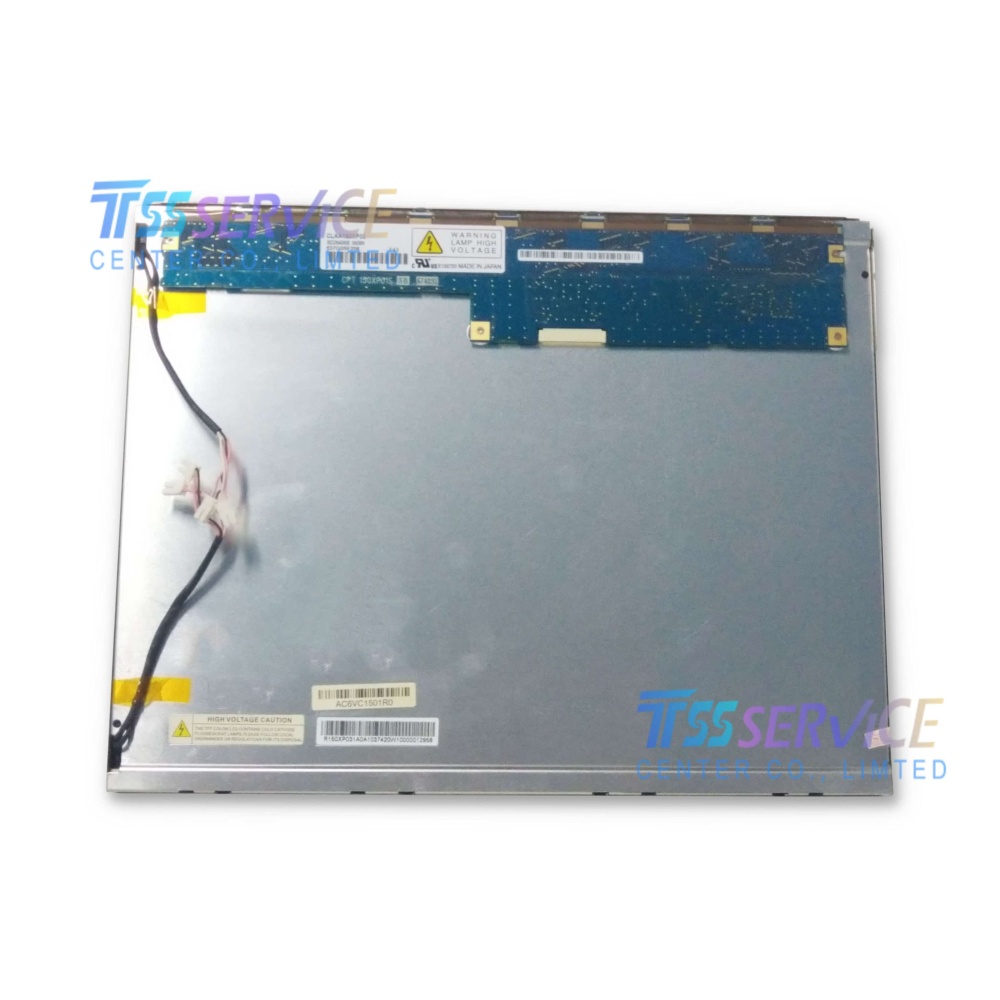

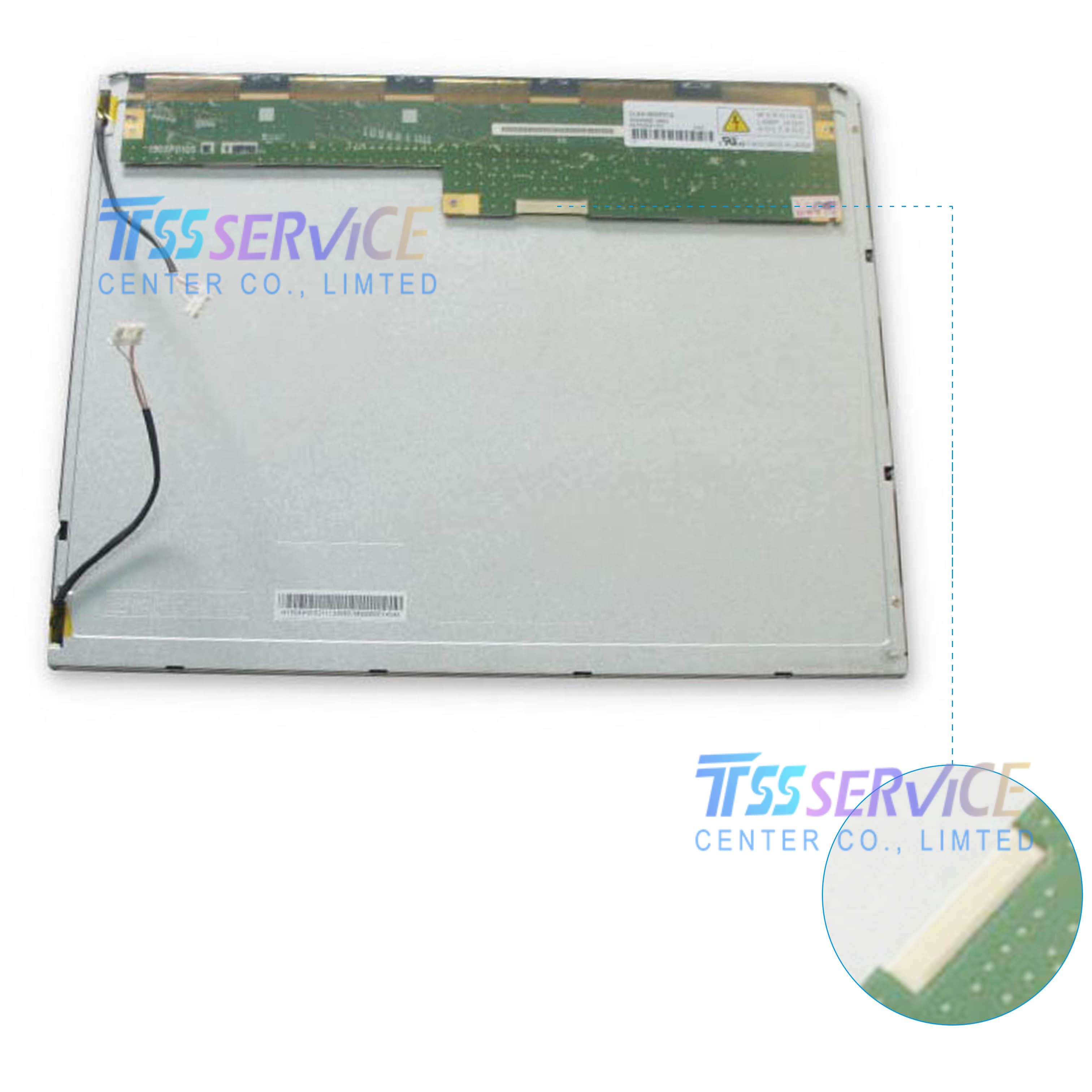

The CLAA150XP-01F is a high-performance 15.0-inch XGA TFT LCD Panel manufactured by Chunghwa Picture Tubes (CPT). Designed for robust operation, this industrial display module features an open-frame structure and high brightness capabilities. It is widely recognized as a reliable replacement panel for various medical and transportation systems, offering excellent sunlight readability and long-term stability.
Technical Specifications
Here are the detailed parameters for the CLAA150XP-01F:
| Parameter |
Specification |
| Model Number |
CLAA150XP-01F |
| Panel Size |
15.0 inch |
| Resolution |
1024 × 768 (XGA) |
| Pixel Pitch |
0.297 mm × 0.297 mm |
| Display Mode |
Transmissive, Normally Black |
| Brightness |
700 cd/m² (High Brightness) |
| Contrast Ratio |
700:1 (Typical) |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp) |
| Interface |
TTL / LVDS (depending on specific revision) |
| Operating Temp |
-20°C to 70°C |
| Storage Temp |
-30°C to 80°C |
| Outline Dimensions |
339.6 × 274.6 × 51.0 mm (Typical) |
