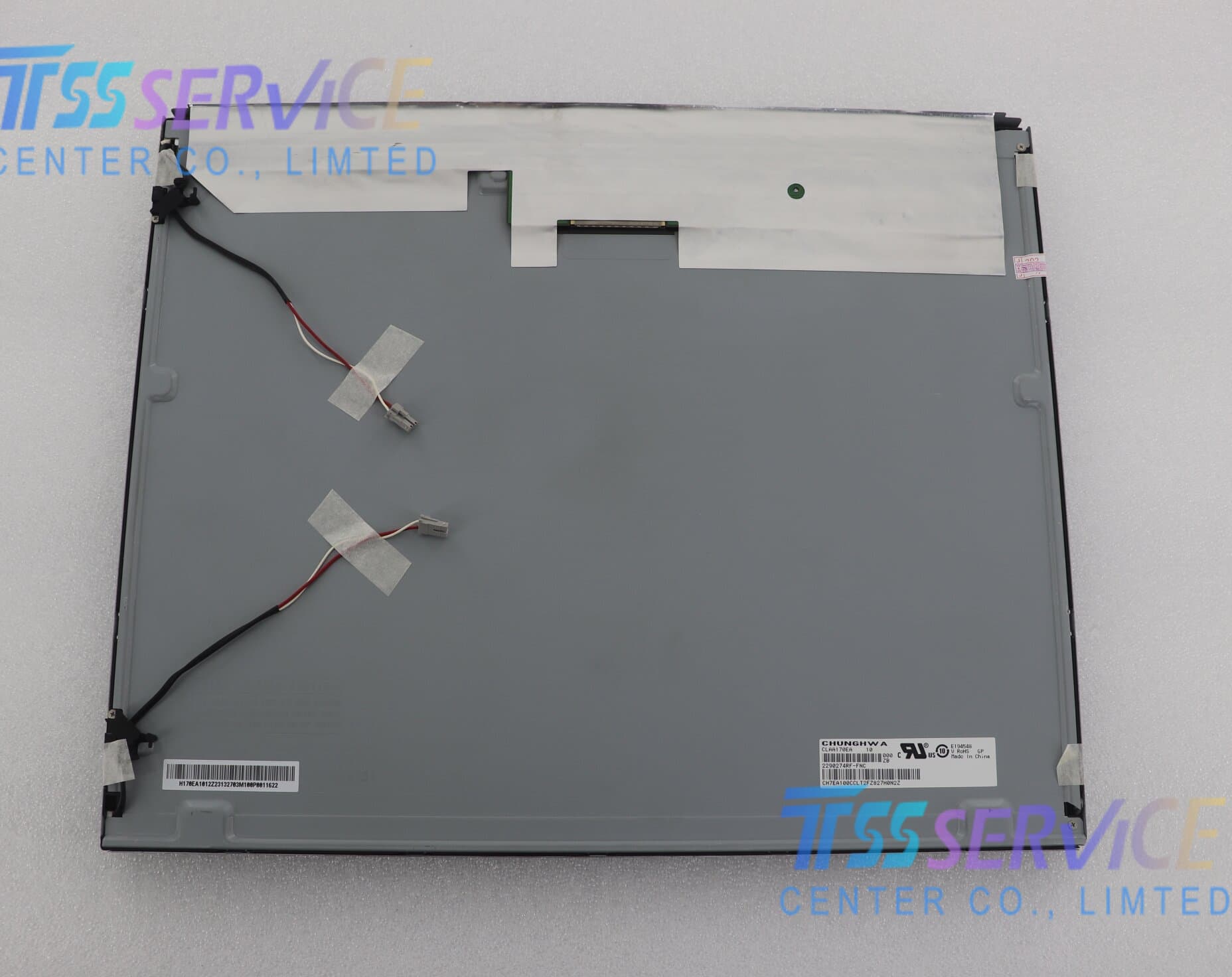

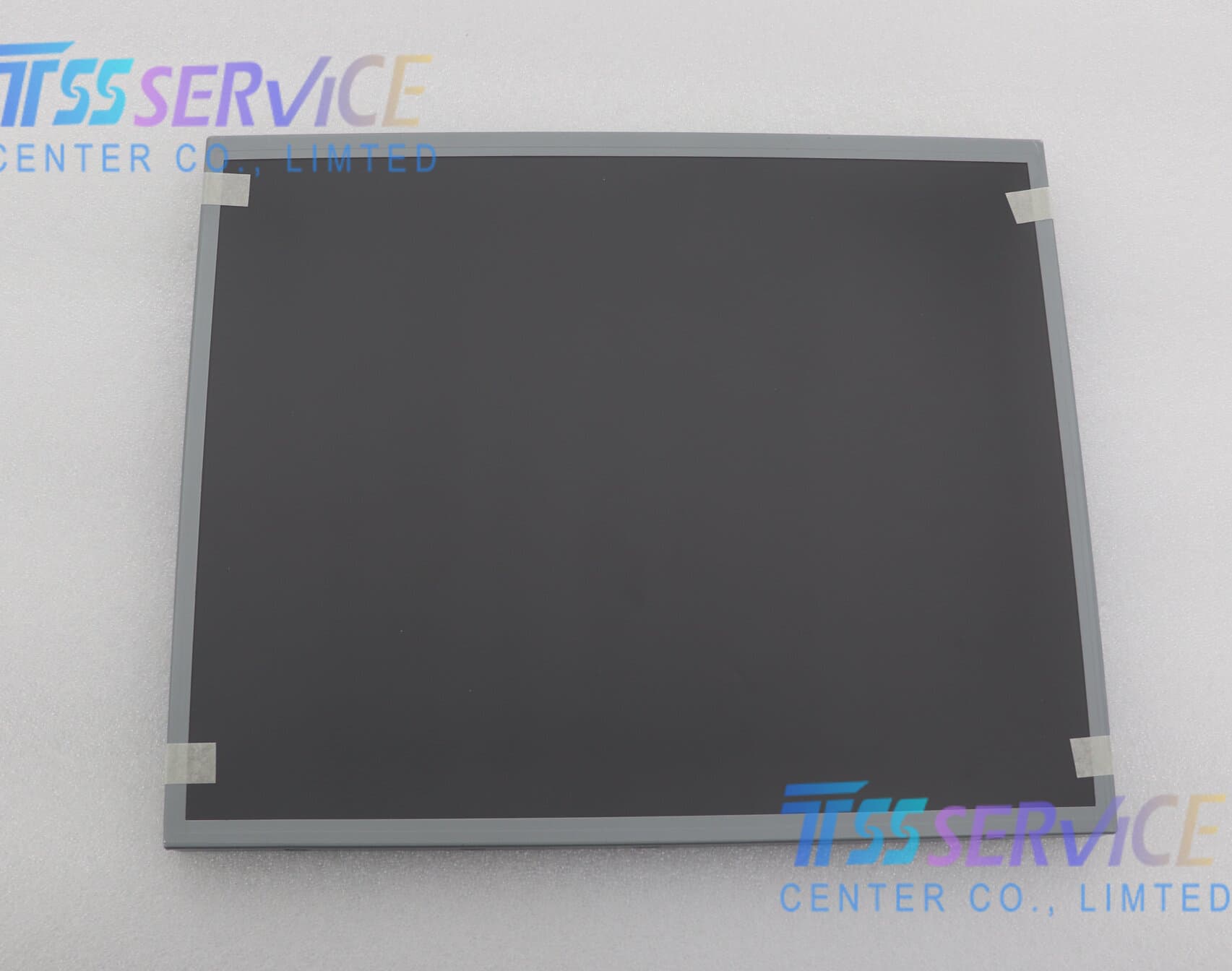

The CLAA170EA10 is a 17.0-inch a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module manufactured by CPT (Chunghwa Picture Tubes). It features a resolution of 1280×1024 (SXGA) with a pixel pitch that delivers sharp image quality suitable for professional and commercial applications.
| Parameter |
Specification |
| Brand |
CPT |
| Model P/N |
CLAA170EA10 |
| Diagonal Size |
17.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1280(RGB)x1024, SXGA 96PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
337.92(W)x270.336(H) mm |
| Bezel Opening |
341.6(W)x274.0(H) mm |
| Outline Size |
358.5(W)x296.5(H)x17.5(D) mm |
| Surface |
Antiglare |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
5 (Typ.)(Tr+Td) |
| Display Colors |
16.7M 72% NTSC |
| Lamp Type |
2 pcs CCFL, 50K hours, Without Driver |
| Frequency |
75Hz |
| Touch Screen |
Without |
| Panel Weight |
1.90±0.10Kgs |
| Signal Interface |
LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage |
5.0V (Typ.) |
| Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Applications
Thanks to its balanced performance in image quality, durability, and cost-effectiveness, the CLAA170EA10 is widely used in the following fields:
-
Industrial Control Equipment
-
Medical Devices
-
Commercial & Retail
-
Office & Professional Displays
-
Gaming & Entertainment
