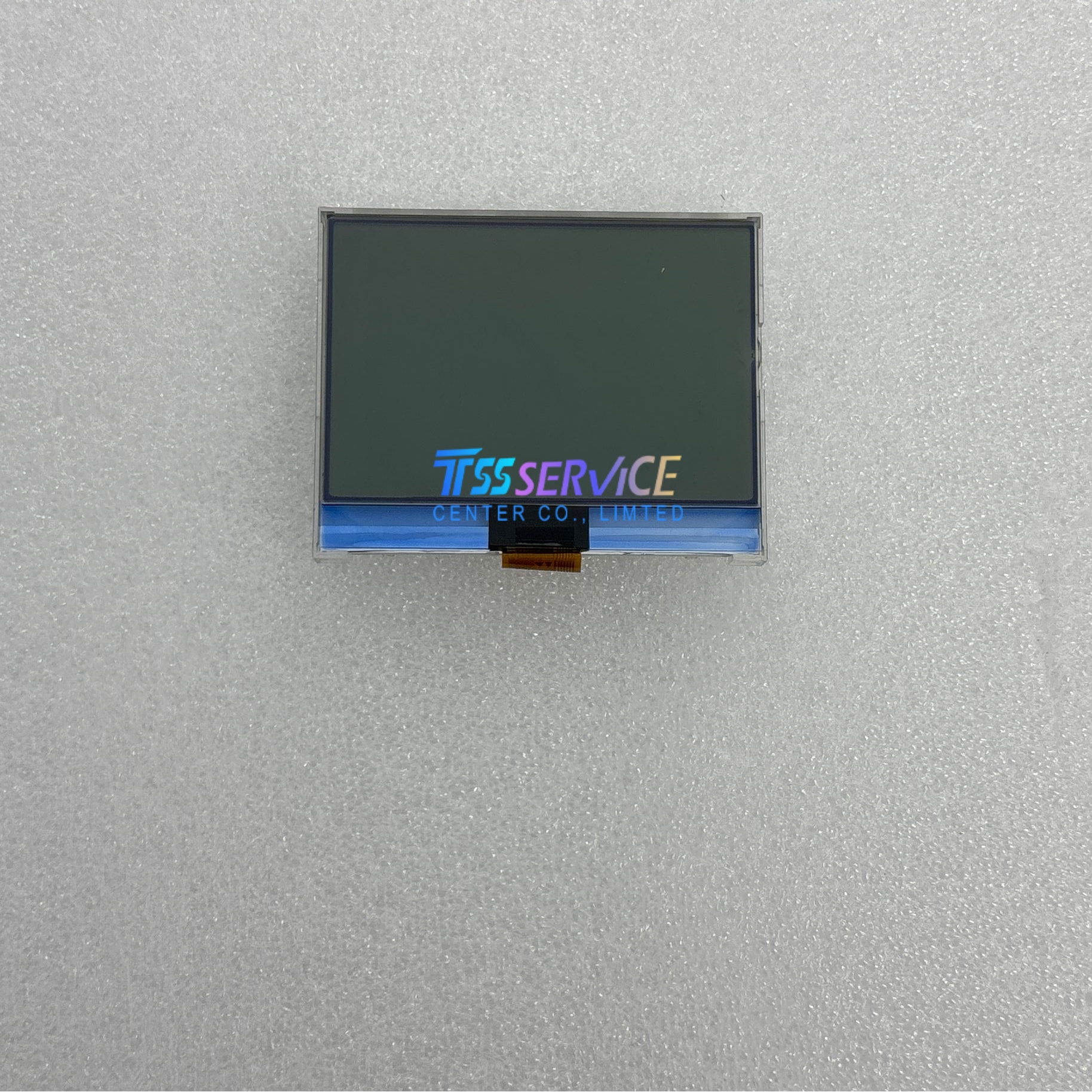

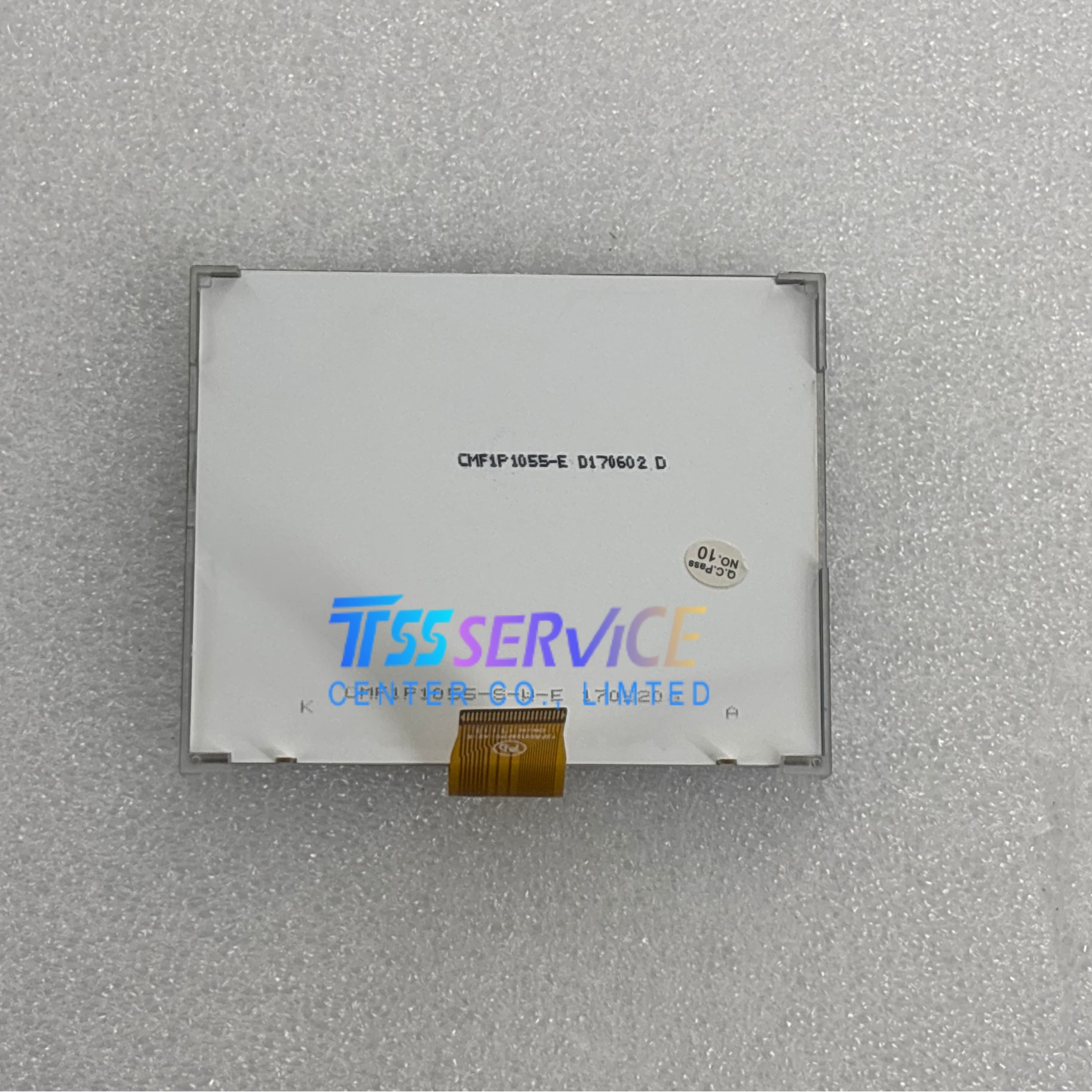

CMF1P1055-E LCD PANEL display use for Industiral
Specifications
1. Basic Information
- Model: CMF1P1055-E
- Manufacturer: TRULY Semiconductors (信利)
- Document Version: V0.1, Release Date: Jan 14, 2010
- Product Type: FSTN Segment LCD Module
- Compliance: RoHS Lead-free (suffix "E" = environmental compliant)
- Driver IC: UC1698U
- Interface: Parallel Interface
- Lifecycle: Early industrial segment screen, partially obsolete
-
2. Display Optical & Mechanical
- LCD Type: FSTN, Positive / Normally White
- View Direction: 6 o’clock
- Outline Dimension (W × H): 79.7 mm × 63.5 mm
- View Area (W × H): 71.8 mm × 49.0 mm
- Active Area (W × H): 62.62 mm × 43.34 mm
- Pixel Matrix: 240 × 160 dots, support 4 gray scales
- Dot Size: 0.241 mm (W) × 0.251 mm (H)
- Dot Pitch: 0.261 mm (W) × 0.271 mm (H)
- Backlight: LED backlight
- Backlight Lifetime: 40,000 hours
- Total Module Power Consumption: 248 mW
Typical Applications
-
1. Industrial Measurement & Instrumentation Equipment
- Temperature controllers, thermostats & process temperature meters
- Pressure gauges, flow transmitters & multi-parameter industrial detectors
- Handheld industrial testers, signal calibrators & portable measuring instruments
- Cabinet monitoring meters, sensor display panels for automation stations
2. Utility Metering & Charging Infrastructure
- Smart water meters, gas meters, heat meters & energy power meters
- AC/DC charging pile human-machine display panels for new energy vehicles
- Shared charging station control displays, portable power station monitors
3. Household & Commercial Appliance Control Panels
- Industrial kitchen equipment: oven, freezer, commercial water heater control screens
- HVAC equipment: air conditioner, heat pump, ventilation unit operation display
- Smart water heaters, humidifiers, dehumidifiers & small commercial refrigerators
- Intelligent washing equipment, commercial disinfection machine control interfaces
4. Medical Portable Diagnostic Devices
- Household blood pressure monitors, blood glucose analyzers
- Portable respiratory detectors, physical sign monitoring handheld equipment
- Small clinical auxiliary testing instruments, ward bedside parameter displays
5. Factory Automation & Low-End HMI Panels
- Small PLC auxiliary display screens, conveyor local control operation panels
- Packaging machinery, labeling machine simple parameter display units
- Small textile equipment, injection molding machine auxiliary monitoring screens
- Pump & fan local on-site operation display modules
6. Other Specialized Industrial Terminal Applications
- Environmental monitoring equipment: air quality detectors, soil testers
- Access control & locker management system display screens
- Agricultural equipment controllers: greenhouse temperature/humidity monitors, small irrigation controllers
- Portable power supply, solar controller parameter display panels
