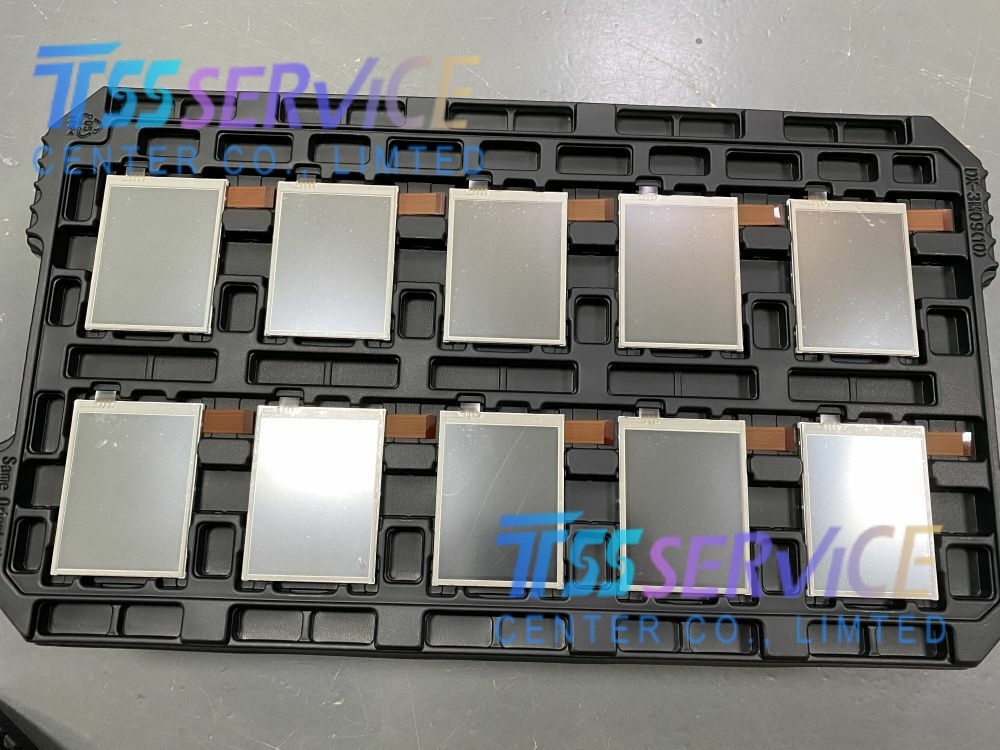

COM22H2M74DLC Ortustech 2.2 inch 320×240 for Industrial Handheld & PDA

Name: COM22H2M74DLC Ortustech 2.2 inch 320×240 for Industrial Handheld & PDA
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: COM22H2M74DLC
Price: 95 USD
Availability: InStock

SKU: COM22H2M74DLC

Model: COM22H2M74DLC
Display Size: 2.2 inches
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240 (QVGA, 4:3 aspect ratio)
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$99.00~~ $95.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

COM22H2M74DLC Ortustech 2.2 inch 320×240 for Industrial Handheld & PDA

Category	Parameter	Details
Basic Info	Manufacturer	Ortustech
	Model	COM22H2M74DLC
	Display Size	2.2 inches
	Panel Type	a-Si TFT-LCD, LCM
	Resolution	320(RGB)×240 (QVGA, 4:3 aspect ratio)
	Pixel Format	RGB Vertical Stripe
Mechanical	Display Area	44.16(W) × 33.12(H) mm (1.739" × 1.304")
	Outline Dimensions	49.96(W) × 42.95(H) × 3.07(D) mm (1.967" × 1.691" × 0.121")
	Weight	12.6 g (Typ.) (0.0278 lbs)
	Surface Treatment	Hard coating (3H)
Optical	Brightness	450 cd/m² (Typ.)
	Contrast Ratio	400:1 (Typ., Transmissive/TM) / 4:1 (Typ., Reflective/RF)
	Viewing Angle	35°/35°/15°/60° (L/R/U/D, Min., CR≥10)
	Display Mode	TN, Normally White, Transflective
	View Direction	6 o'clock
	Display Colors	262K (6-bit) / 16.7M (8-bit)
	Response Time	40/60 ms (Max., Tr/Td)
	Frequency	60 Hz
Backlight	Light Source	3S1P WLED, 50,000 hrs lifespan, no built-in driver
Interface	Type	Parallel RGB (1 channel, 6/8-bit)
	Connector	67-pin FPC
Electrical	Input Voltage	3.0 V (Typ.)
Environmental	Operating Temperature	-20 °C ~ +70 °C (-4 °F ~ +158 °F)
	Storage Temperature	-30 °C ~ +80 °C (-22 °F ~ +176 °F)
	Touch Screen	Without touch panel

Typical Applications

Handheld Industrial Devices: Data collectors, PDAs, barcode scanners, and field service terminals.
Outdoor Consumer Electronics: Portable GPS units, marine navigation systems, and outdoor cameras.
Industrial Control & HMI: Small control panels, factory automation interfaces, and process monitoring equipment.
Medical Devices: Portable diagnostic tools, patient monitors, and handheld medical instruments.
Automotive & Avionics: Rear-view displays, dashboard gauges, and low-power control interfaces.
