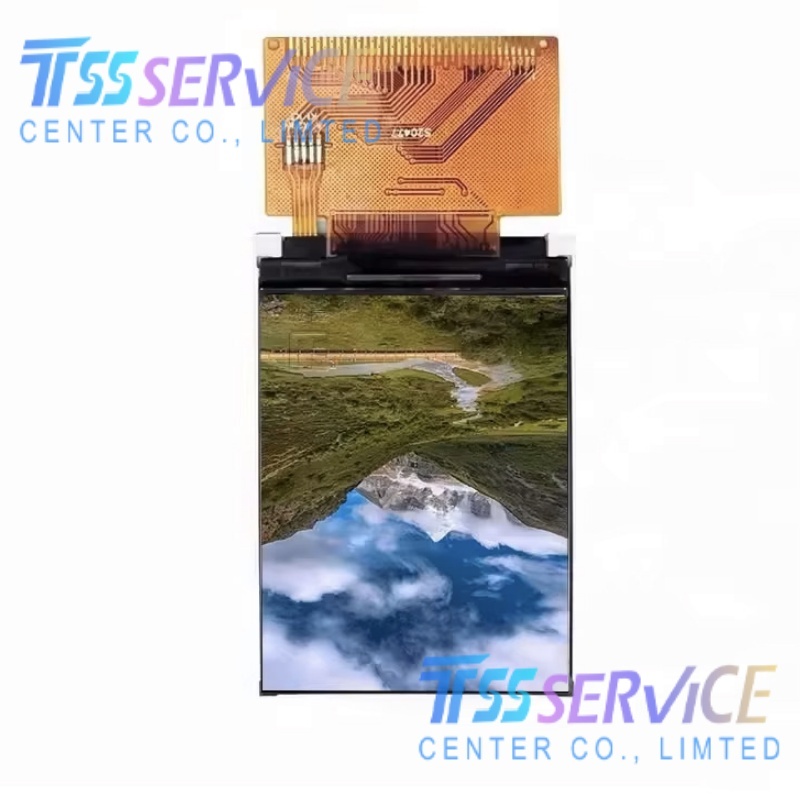

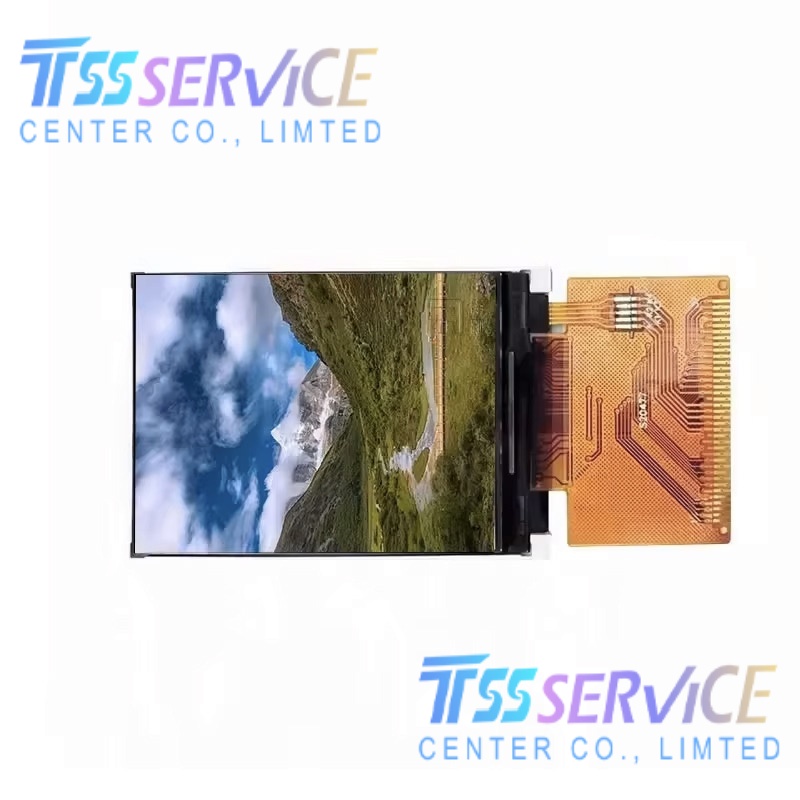

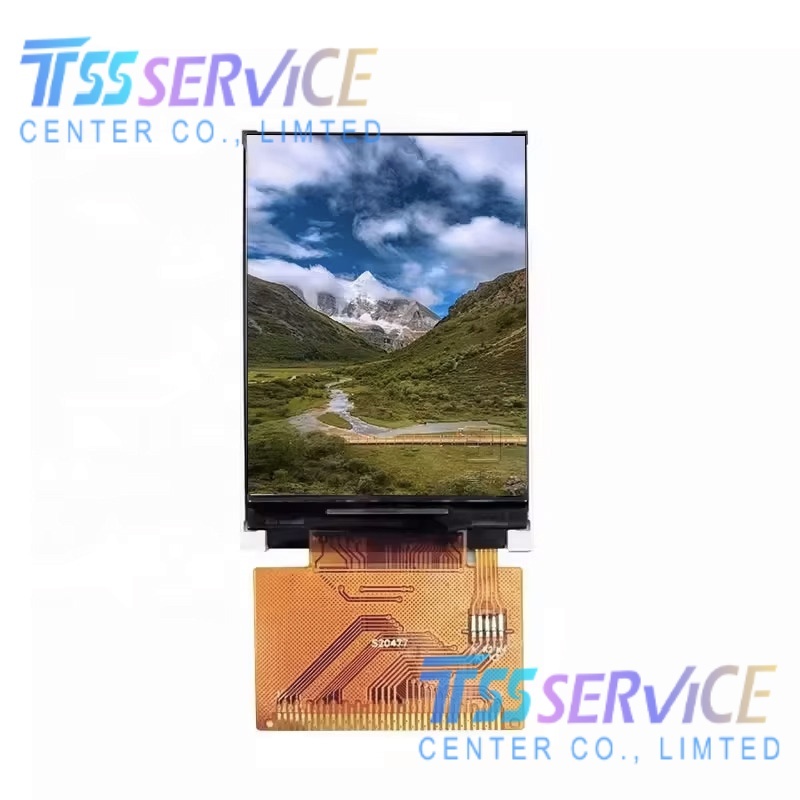

Ortustech COM22H2P22DLC 2.2 inch 320×240 LCD Panel for Industrial Machine
| Parameter Category |
Parameter Name |
Value Details |
| Basic Specifications |
Manufacturer |
Ortustech (Japan Display) |
|
Panel Type |
a-Si TFT-LCD, Transflective (Blanview®) |
|
Diagonal Size |
2.2 inches |
|
Resolution |
320 (RGB) × 240 (QVGA), 184 PPI |
|
Pixel Configuration |
RGB Vertical Stripe |
| Display Performance |
Brightness |
300 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (Transmissive), 7.5:1 (Typ.) (Reflective) |
|
Display Colors |
262K (6-bit) / 16.7M (8-bit) |
|
Response Time |
40 ms (Tr Max.), 60 ms (Td Max.) |
|
Viewing Angle (Min.) |
40° (L), 40° (R), 15° (U), 45° (D) @ CR≥10 |
| Mechanical Data |
Active Area |
44.16 (W) × 33.12 (H) mm |
|
Outline Dimensions |
49.96 (W) × 42.95 (H) × 3.07 (D) mm |
|
Surface Treatment |
Anti-glare, Hard coating (3H) |
| Electrical Interface |
Interface |
Parallel RGB (1 channel, 6/8-bit), 67-pin FPC |
|
Power Supply |
3.0V Single Supply |
|
Control Interface |
3-wire Serial (8-bit mode) / Terminal (6-bit mode) |
| Backlight |
Type |
White LED (WLED) |
|
Lifetime |
50,000 hours (Typ.) |
| Environment |
Operating Temp. |
-20°C ~ +70°C |
|
Storage Temp. |
-30°C ~ +80°C |
|
Special Features |
Blanview® Technology (Outdoor Readability), Power Save Mode, Built-in Driver IC |
| Status |
Production Status |
Discontinued (Mass production ended Q3 2015) |
The COM22H2P22DLC module is primarily designed for portable, battery-powered devices requiring excellent sunlight readability and low power consumption. Key applications include:
- Handheld Industrial Devices: Industrial PDAs, barcode scanners, laser rangefinders, and field data collectors.
- Portable Medical Instruments: Handheld patient monitors, vital signs monitors, glucose meters, and portable ultrasound devices.
- Consumer Electronics: Outdoor GPS units, digital cameras, portable media players, and high-end PDAs.
- Automotive & Avionics: Car navigation systems, aftermarket dash cams, and small avionic control displays.
- Test & Measurement: Handheld multimeters, oscilloscopes, signal generators, and portable analyzers.
- Military & Tactical Gear: Portable communication devices, ruggedized terminals, and soldier-worn equipment.
