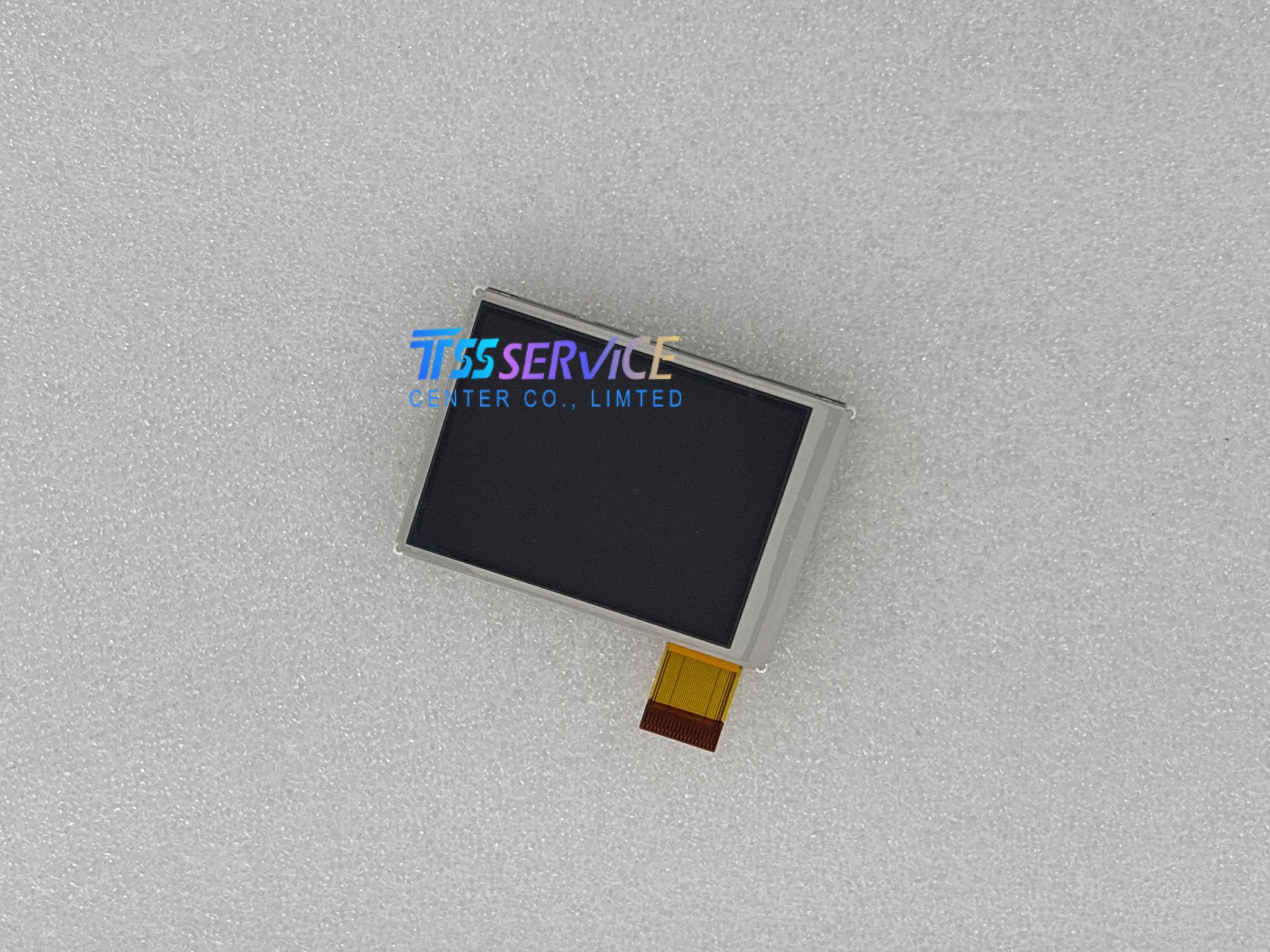

The COM24H2P29XLC is a 2.4-inch a-Si TFT-LCD module from Ortustech (formerly Casio). Designed for portable and handheld industrial applications, this display features a transflective design, making it an ideal solution for devices that require excellent visibility in both indoor and direct sunlight conditions, such as PDAs, handheld terminals, industrial control panels, and outdoor equipment.
| Parameter |
Value |
| Brand |
Ortustech |
| Model |
COM24H2P29XLC 1 Compatible |
| Diagonal Size |
2.4 inch |
| Type |
a-Si TFT-LCD, LCM |
| Pixel Number |
240(RGB)×320, 3:4, QVGA |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
36(H)×48(V) mm |
| Physical Size |
42.5(H)×58.5(V)×4(D) mm |
| Mass |
13.9g (Typ.) |
| Surface Coating |
Hard coating (3H) |
| Luminance |
300 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) / 8.5:1 (Typ.) (RF) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transflective |
| Response Time |
40/60 (Max.)(Tr/Td) ms |
| Support Color |
262K |
| Frame Rate |
60Hz |
| Light Source |
2S1P WLED, 50K hrs, Without Driver |
| Touch Panel |
Without |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 39 pins FPC |
| Power Supply |
3.0V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Applications
The COM24H2P29XLC is an excellent choice for:
-
Handheld devices and PDAs
-
Industrial control panels
-
Outdoor terminals and equipment
-
Portable medical devices
-
Factory automation systems
-
GPS navigation devices
