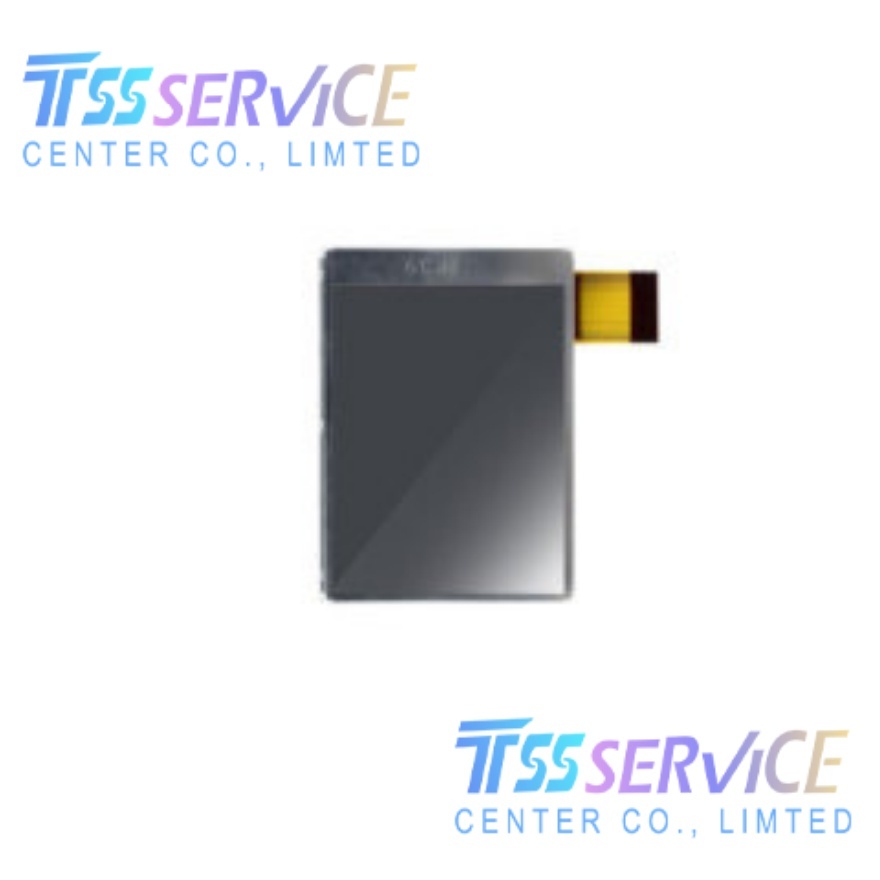

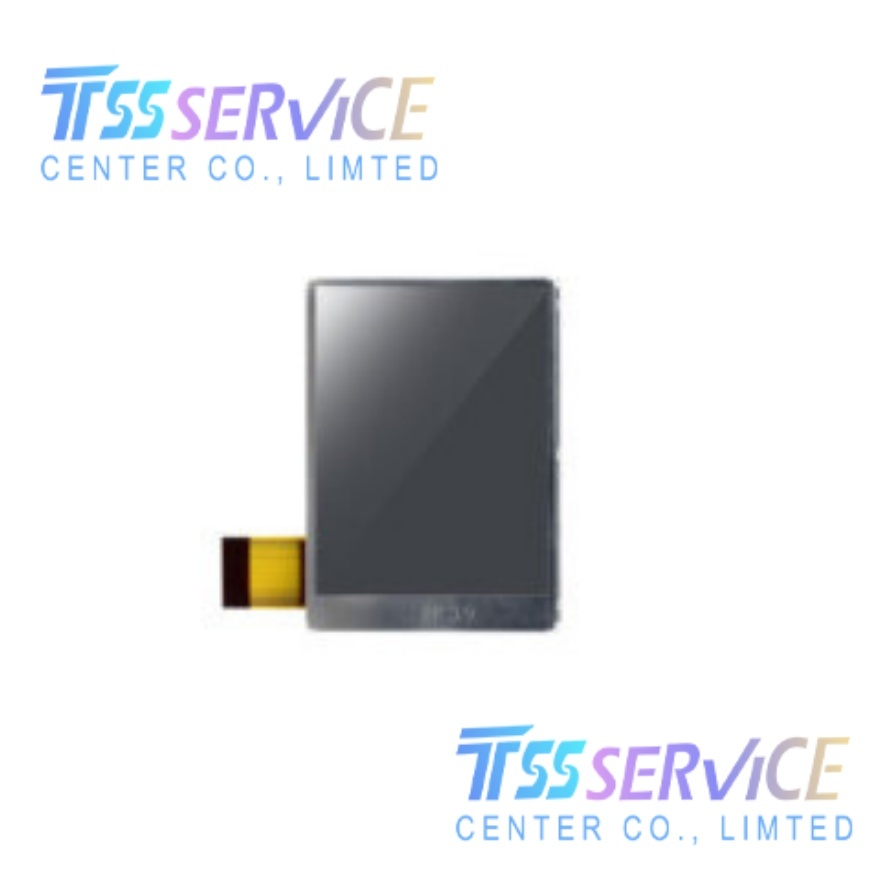

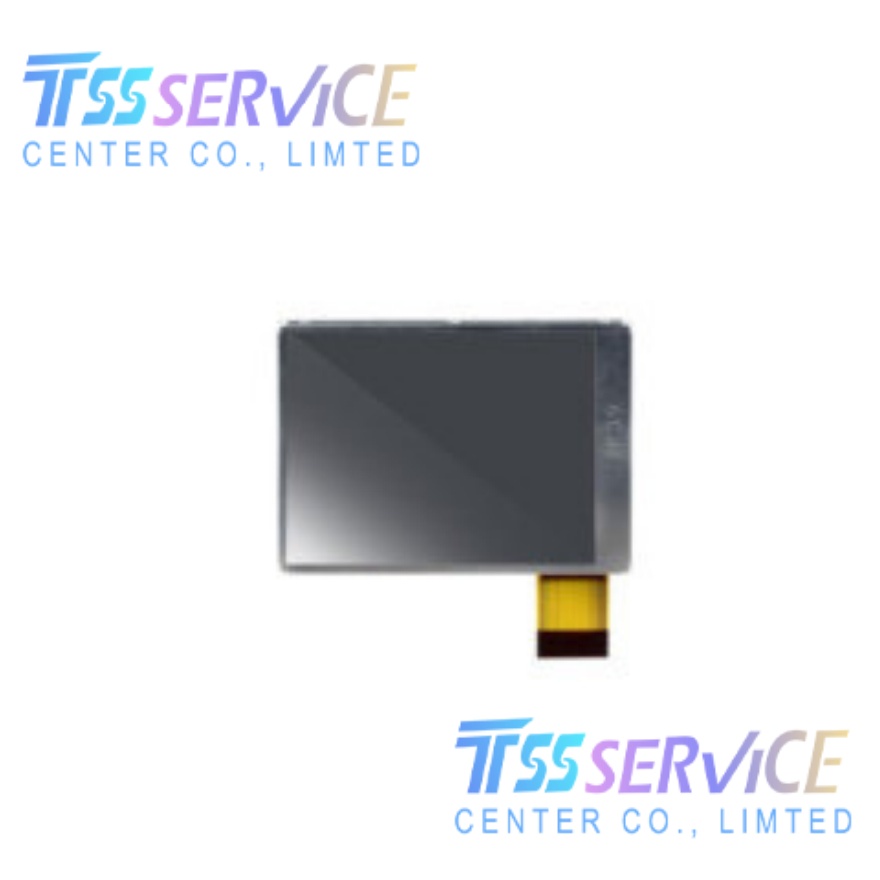

Ortustech COM24H2P39ULC 2.4 inch 240×320 LCD Panel for Industrial

Name: Ortustech COM24H2P39ULC 2.4 inch 240×320 LCD Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: COM24H2P39ULC
Price: 83 USD
Availability: InStock

SKU: COM24H2P39ULC

Model P/N: COM24H2P39ULC
Diagonal Size: 2.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 240(RGB)×320, QVGA 169PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$86.00~~ $83.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Ortustech COM24H2P39ULC 2.4 inch 240×320 LCD Panel for Industrial

Parameter	Details
Part Number	COM24H2P39ULC
Display Type	a-Si TFT-LCD, Transflective
Diagonal Size	2.4 inches
Resolution	240 (H) × 320 (V) pixels (QVGA)
Active Area	36.00 (H) × 48.00 (V) mm
Outline Dimensions	42.5(H)×58.5(V) ×5.55(D) mm
Pixel Format	262K Colors (6-bit RGB)
Brightness	300 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Viewing Angle	80/80/80/80° (Typ., CR≥10)
Interface	CPU (6-bit TTL), 39-pin FPC
Backlight	WLED, 50,000 hours (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Weight	13.6 g (including FPC)
