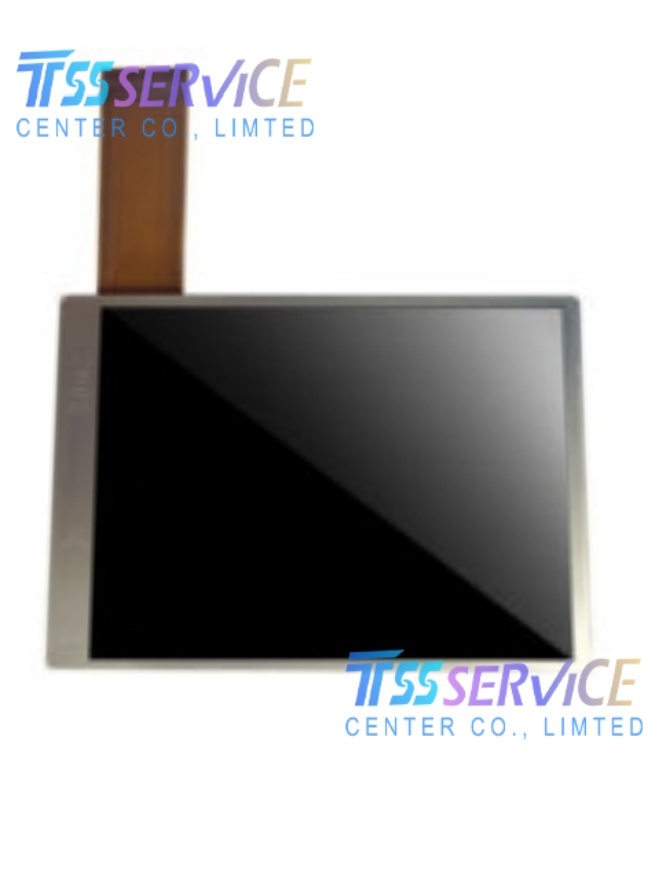

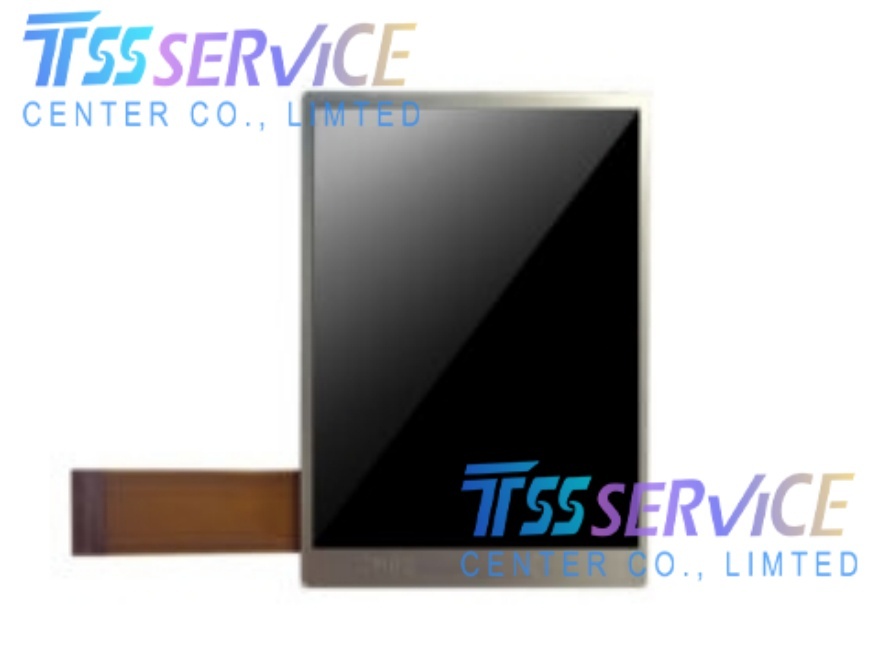

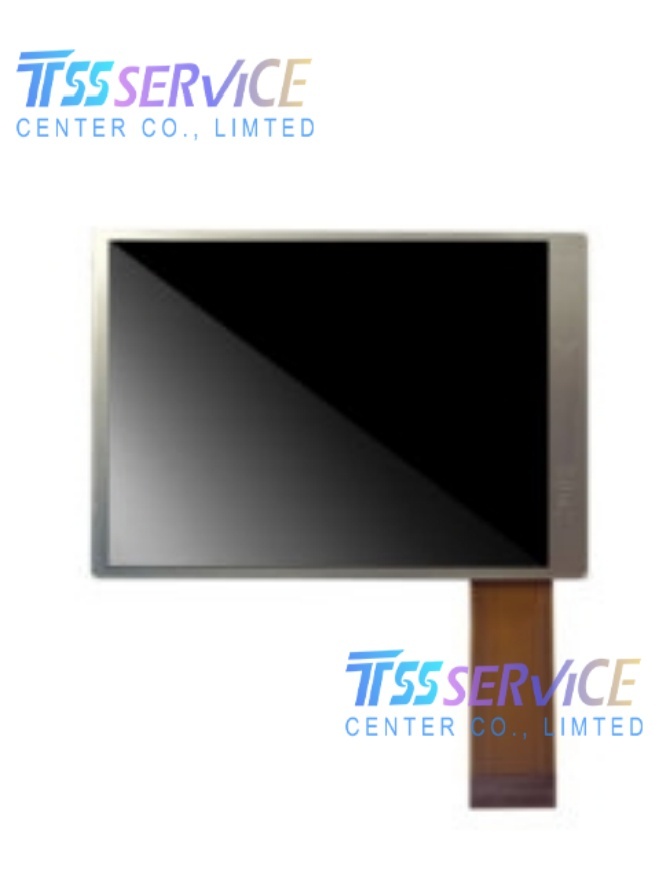

Ortustech COM27H2P86ULC 2.7 inch 240×320 LCD Panel Display For Industrial
| Parameter |
Detail |
| Manufacturer |
Ortustech (Blanview Technology) |
| Model |
COM27H2P86ULC |
| Panel Type |
a-Si TFT-LCD, VA, Normally Black, Transflective (Blanview-2) |
| Diagonal Size |
2.7 Inches (Portrait, Vertical) |
| Resolution |
240(RGB) × 320 (QVGA) |
| Active Area |
41.04 × 54.72 mm (W×H) |
| Outline Dimensions |
47.0 × 66.0 × 4.34 mm (W×H×D) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) (Transmissive) |
| Viewing Angle |
80/80/80/80 (Min.) (L/R/U/D, CR≥10) |
| Response Time |
100 ms (Max.) (Tr+Td) |
| Color Depth |
262K Colors (6-bit) |
| Color Gamut |
50% NTSC (CIE1931) |
| Backlight |
WLED, Side Entry, 50K Hours (Min.), No Driver IC |
| Interface |
Parallel RGB (TTL), 6-bit, 39 Pins FPC |
| Supply Voltage |
3.0V (Typ.) |
| Power Consumption |
Ultra-Low (Transflective Mode) |
| Operating Temperature |
-20°C ~ 70°C (Wide Temp) |
| Storage Temperature |
-30°C ~ 80°C |
| Surface Treatment |
Anti-Glare, Hard Coating (3H) |
| Touch Panel |
No (Non-Touch) |
| Key Feature |
Sunlight Readable / Blanview Technology |
This LCD module is a leader in outdoor readability, utilizing Ortustech's Blanview transflective technology to perform exceptionally well in both bright sunlight and dim indoor environments.
Key Application Scenarios:
- Handheld & Mobile Devices: Industrial PDAs, barcode scanners, logistics terminals.
- Outdoor & Portable Instruments: Field measurement tools, outdoor medical devices, GPS receivers.
- Industrial Controls: Factory HMI, portable test equipment, marine electronics.
- Consumer Electronics: High-end digital cameras, outdoor sports cameras.
