Ortustech COM27H2P88UTC 2.7 inch 240×320 LCD Panel Screen For Industrial

Name: Ortustech COM27H2P88UTC 2.7 inch 240×320 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: COM27H2P88UTC
Price: 60 USD
Availability: InStock

SKU: COM27H2P88UTC

Model P/N: COM27H2P88UTC
Diagonal Size: 2.7"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 240(RGB)×320, QVGA, 3:4
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$62.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

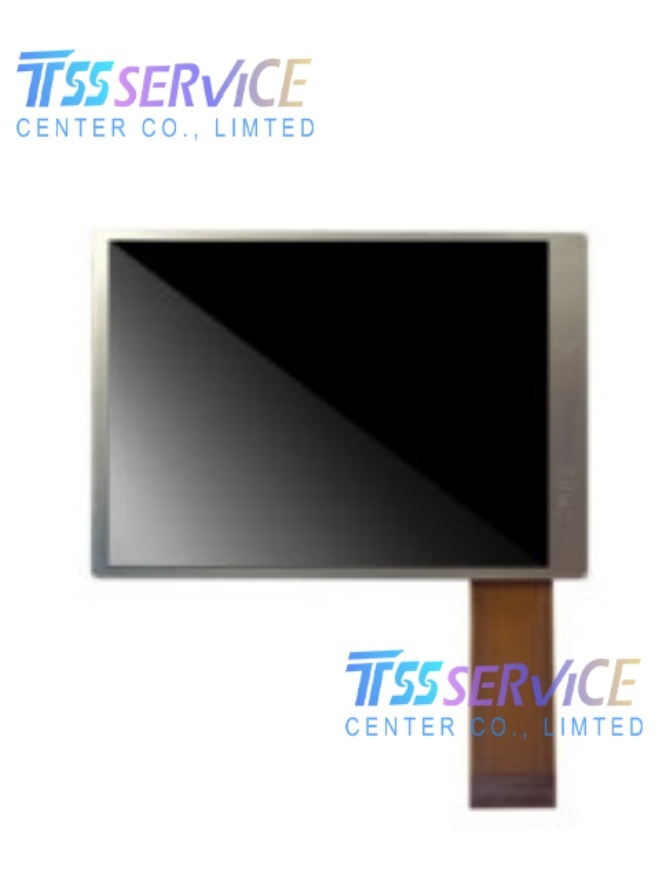

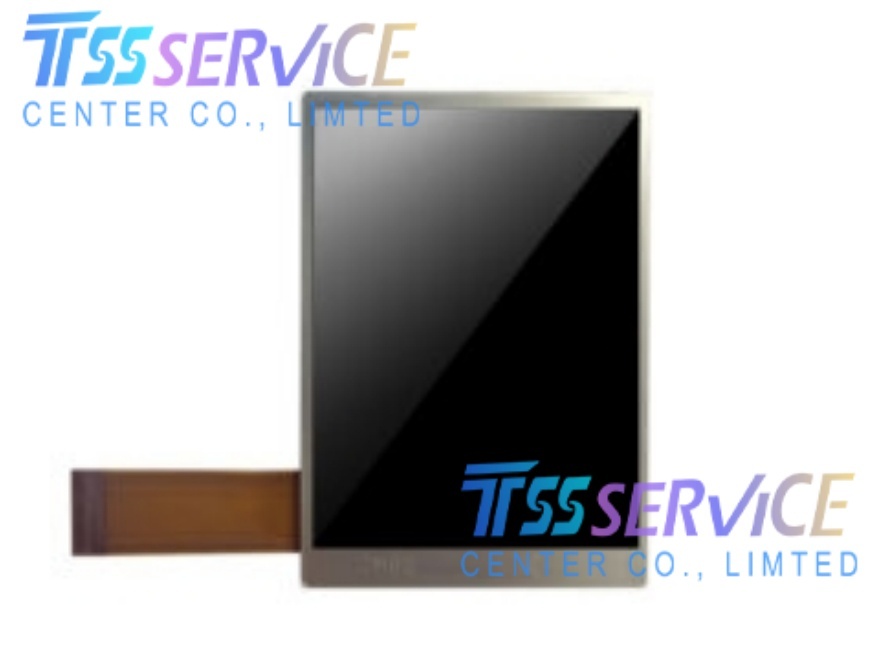

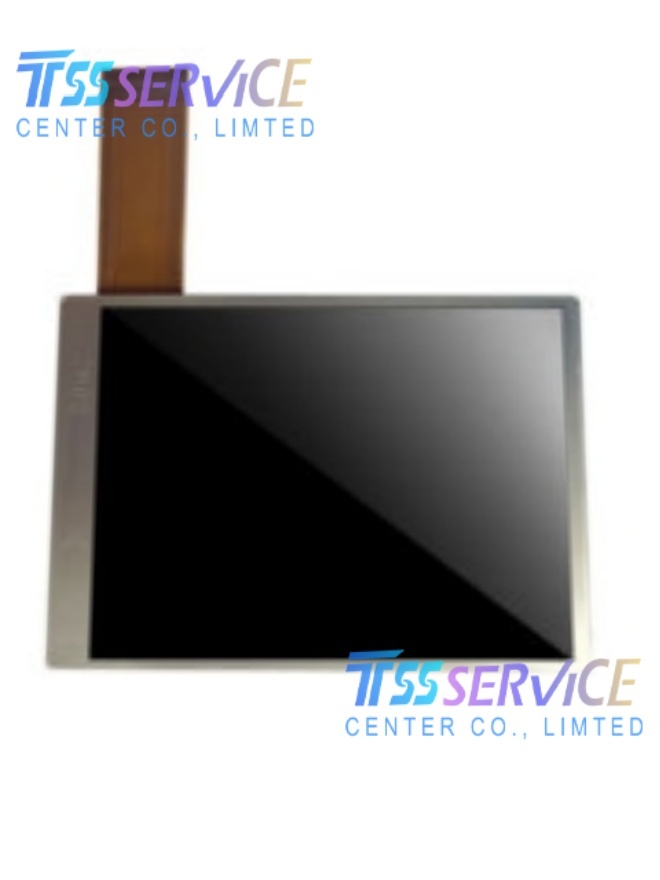

Ortustech COM27H2P88UTC 2.7 inch 240×320 LCD Panel Screen For Industrial

Parameter	Details
Manufacturer	Ortustech
Part Number	COM27H2P88UTC
Panel Type	a-Si TFT-LCD, LCM, Transflective (Blanview)
Diagonal Size	2.7 inch
Resolution	240(RGB) × 320 (QVGA), 148 PPI
Pixel Format	RGB Vertical Stripe
Active Area	41.04 (W) × 54.72 (H) mm
Outline Dimensions	47.0 (W) × 66.0 (H) × 5.64 (D) mm
Display Mode	VA, Normally Black, Transflective
Brightness	280 cd/m² (Typical)
Contrast Ratio	800:1 (Transmissive), 2:1 (Reflective) (Typ.)
Viewing Angles	80/80/80/80 (Min.)(L/R/U/D) (CR≥10)
Backlight	WLED (White LED), No backlight driver
Color Depth	262K (18-bit)
Interface	TTL (RGB), 39 pins
Response Time	60/40 (Max.)(Tr/Td) ms
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Touch Panel	4-wire Resistive Touch (4w-RTP)
Surface Treatment	Hard Coating (3H)
Weight	19.0 g (Typ.) Include FPC cable
Frequency	60 Hz
Best View	Symmetrical
Production Status	Mass Production

Typical Applications

Handheld & Portable Devices
PDAs, industrial handheld terminals, portable data collectors, mobile scanners.
Industrial & Factory Equipment
Small industrial control panels, test instruments, portable meters, factory automation interfaces.
Consumer Electronics
Digital cameras, portable media players, GPS navigation devices, smart remote controls.
Medical & Healthcare
Portable diagnostic tools, small patient monitors, handheld medical devices.
Outdoor & Sunlight Readable
Outdoor portable terminals, marine electronics, ruggedized handhelds (Blanview transflective technology).
Embedded & IoT
Smart sensors, wearable devices, compact industrial IoT gateways, battery-powered embedded systems.
