The Ortustech COM35H3836XTC (also historically associated with Casio) is a 3.5-inch diagonal a-Si TFT-LCD module featuring Blanview transflective technology. This display is specifically designed for outstanding outdoor readability combined with low power consumption. The module integrates a 4-wire resistive touch panel, making it a complete human-machine interface solution for industrial and handheld applications .
| Parameter |
Value |
| Mfr. |
Ortustech |
| Model Name |
COM35H3836XTC |
| Display Size |
3.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
320(RGB)×240, 4:3, QVGA |
| Pixel Format |
RGB Vertical Stripe |
| Display Area |
70.32(W)×52.74(H) mm |
| Panel Weight |
42.0g (Typ.) |

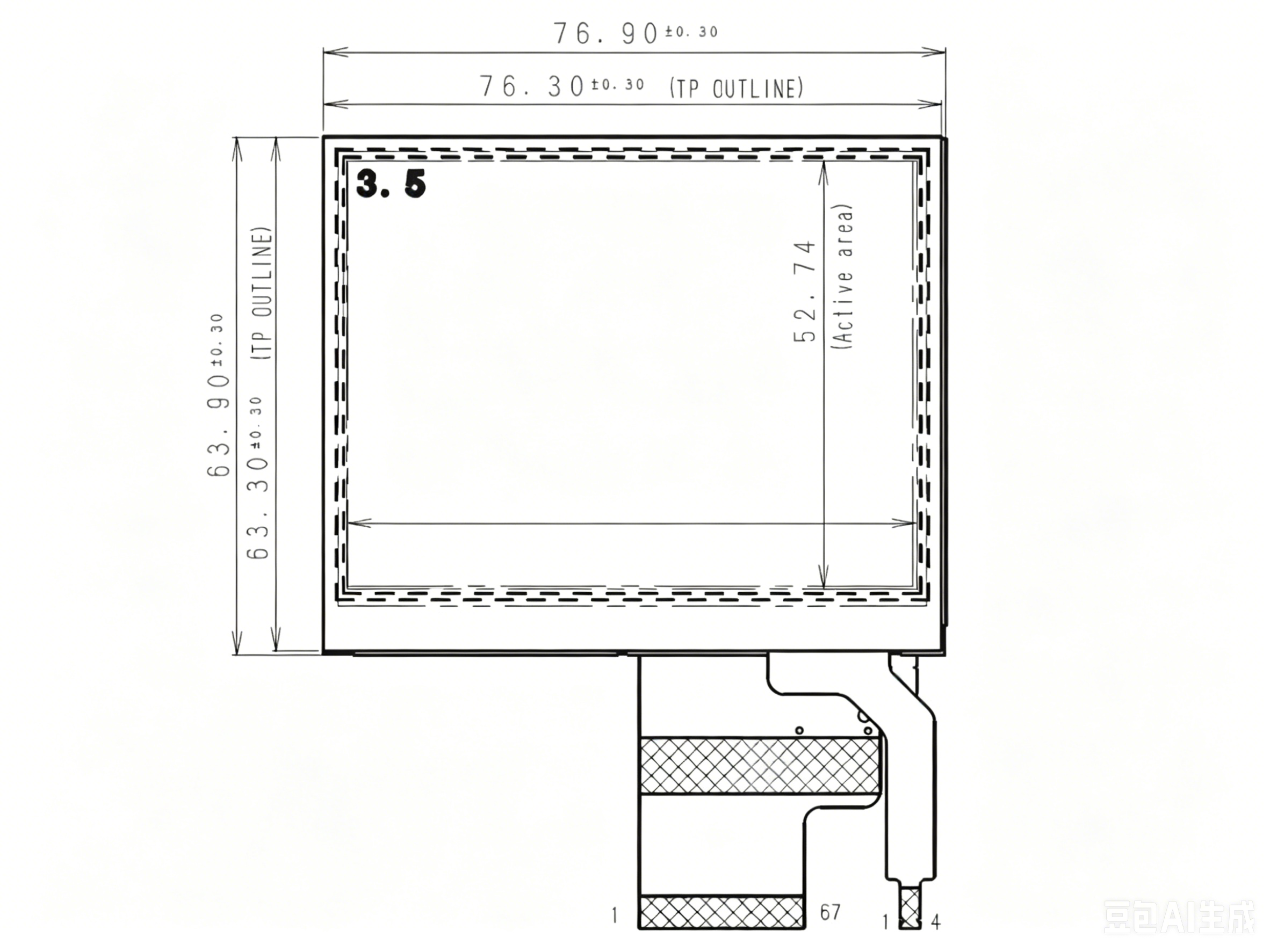

| Outline Size |
76.9(W)×63.9(H)×4.73(D) mm |
| Surface |
Hard coating (3H) |
| Brightness |
240 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Display Mode |
TN, Normally White, Transflective |
| Response Time |
40/60 (Max.)(Tr/Td) mm |
| Display Colors |
262K/16.7M |
| Application |
(blank) |
| Frequency |
60Hz |
| Touch Screen |
4-wire Resistive Touch |
| Light Source |
3S2P WLED, 50K hrs, Without Driver |
| Interface |
Parallel RGB (1 ch, 6/8-bit), 67 pins FPC |
| Input Voltage |
3.0V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Typical Applications
The combination of sunlight readability, integrated touch functionality, and rugged design makes the COM35H3836XTC suitable for a wide range of professional applications :
