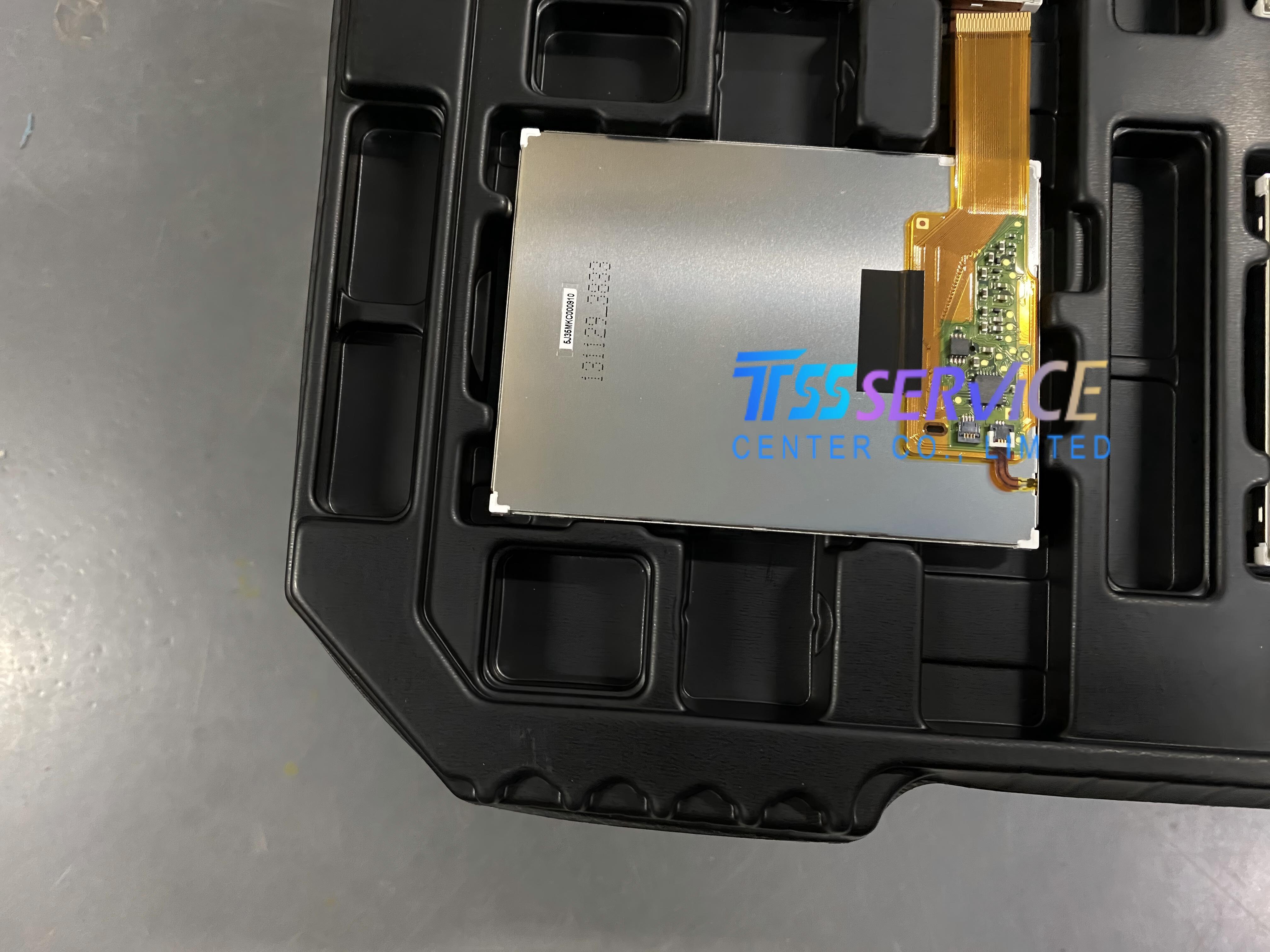

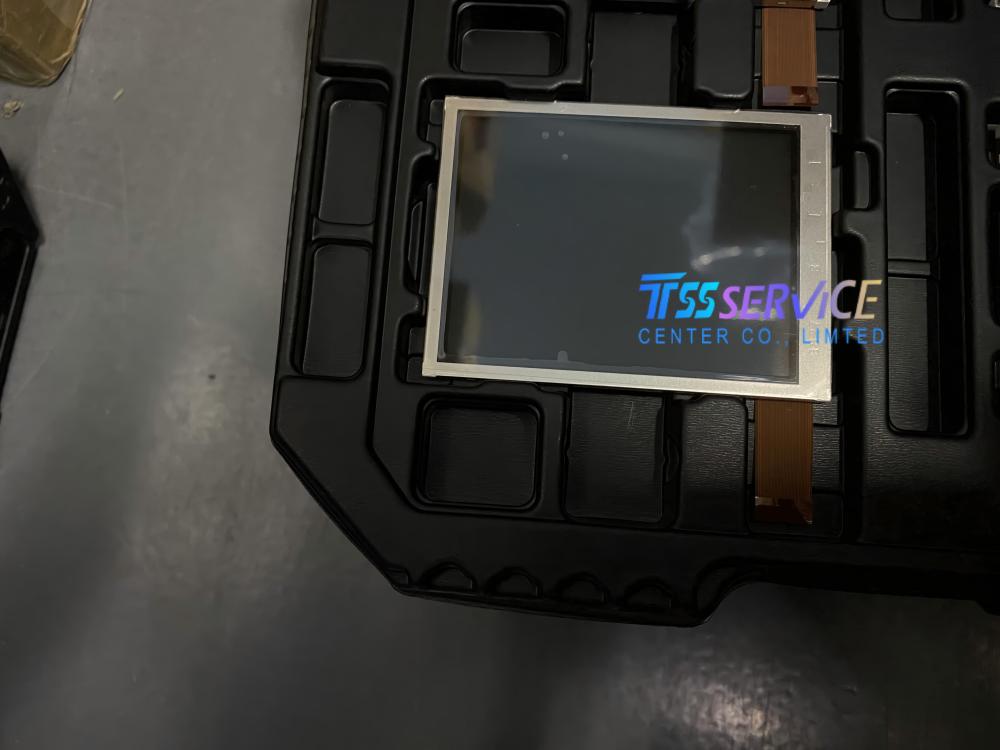

The COM35H3N98XLC is a 3.5-inch diagonal a-Si TFT-LCD module manufactured by Ortustech (formerly CASIO's LCD division). It features a transflective TN (Twisted Nematic) display with a normally white mode. This panel is specifically designed for handheld and industrial applications requiring excellent outdoor readability, low power consumption, and reliable performance in various lighting conditions.
| Parameter |
Value |
| Brand |
Ortustech |
| Model |
COM35H3N98XLC |
| Diagonal Size |
3.5 inch |
| Type |
a-Si TFT-LCD, LCM |
| Pixel Number |
240(RGB)×320, 3:4, QVGA |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
53.64(H)×71.52(V) mm |
| Physical Size |
63.5(H)×85(V)×4.2(D) mm |
| Mass |
33.0g |
| Surface Coating |
Hard coating (3H) |
| Luminance |
250 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM); 6.5:1 (Typ.) (RF) |
| View Direction |
- |
| Response Time |
40/60 (Max.)(Tr/Td) ms |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transflective |
| Support Color |
262K |
| Light Source |
6S1P WLED, 50K hrs, Without Driver |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 39 pins FPC |
| Power Supply |
3.0V (Typ.) |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
Applications
The COM35H3N98XLC is ideal for a wide range of applications requiring sunlight readability and portrait orientation:
-
Handheld & Portable Devices
Industrial PDAs, barcode scanners, data loggers, and portable test instruments.
-
Industrial Human-Machine Interfaces (HMIs)
Control panels for factory automation, process monitoring, and machinery control systems.
-
Outdoor Terminals
Ticketing machines, information kiosks, and payment terminals exposed to direct sunlight.
-
Medical Equipment
Portable diagnostic tools, patient monitoring devices, and handheld medical tablets.
-
Navigation & GPS Systems
Marine chartplotters, fish finders, and automotive navigation devices.
