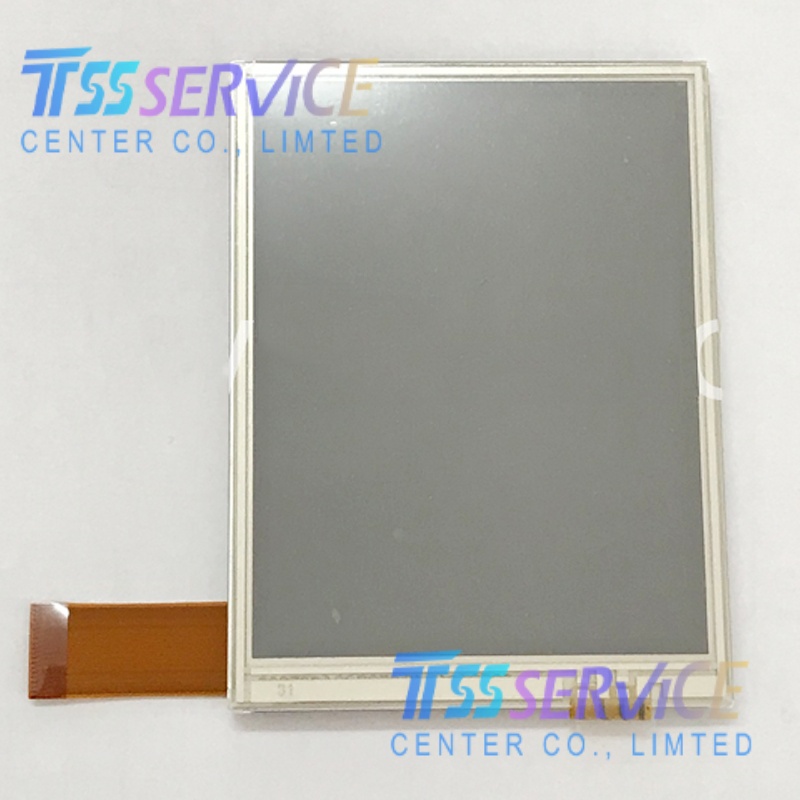

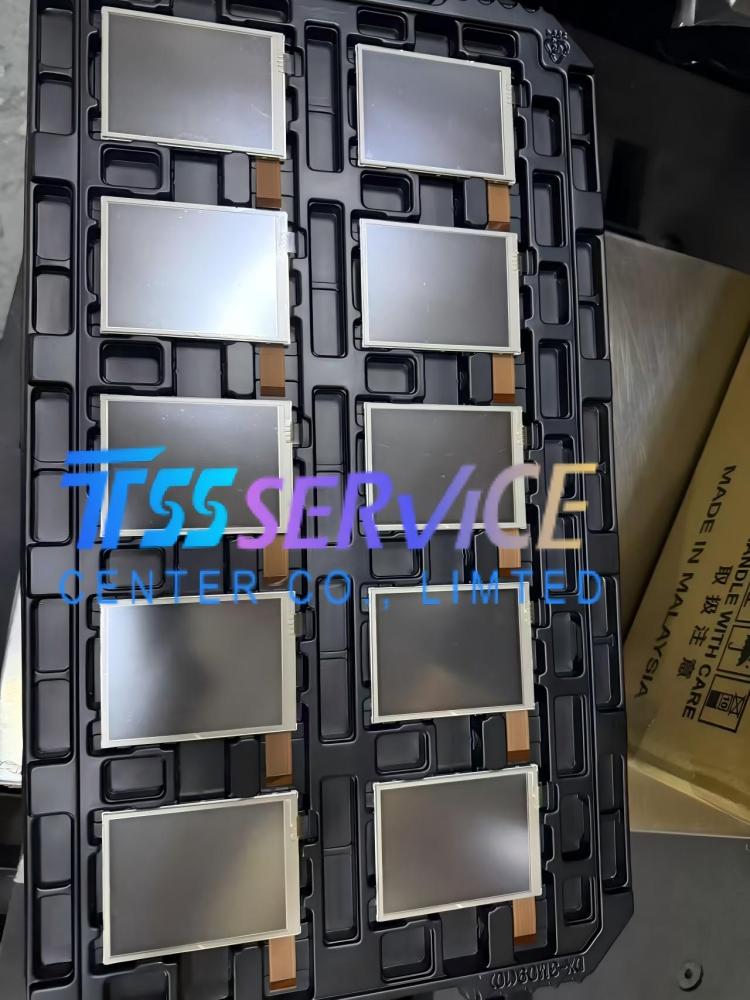

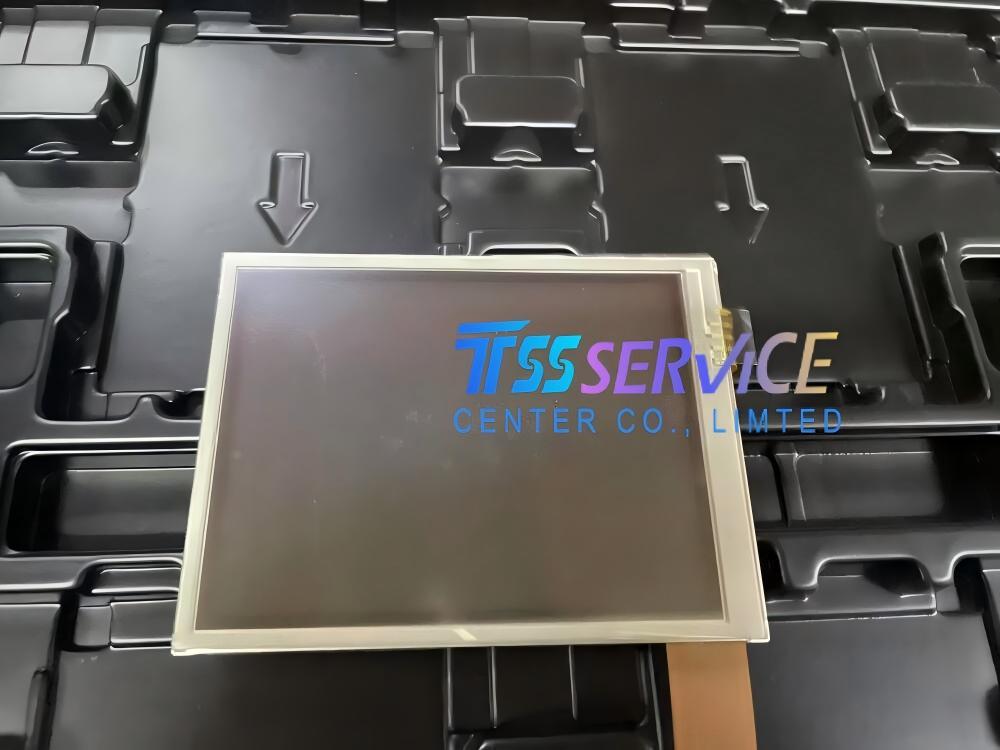

COM35H3N99XTC Ortustech 3.5 inch 240×320 LCD Display Panel for Industrial
| Category |
Parameter |
Details (with Unit Conversions) |
| Basic Info |
Manufacturer |
Ortustech |
|
Model |
COM35H3N99XTC |
|
Display Size |
3.5 inches |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
240(RGB) × 320 (QVGA, 3:4 aspect ratio) |
|
Pixel Format |
RGB Vertical Stripe |
| Mechanical |
Active Area |
53.64(H) × 71.52(V) mm (2.11” × 2.82”) |
|
Outline Dimensions |
63.5(H) × 85(V) mm (2.50” × 3.35”) |
|
Panel Weight |
43.5 g (Typ.) (0.096 lbs) |
|
Surface Treatment |
Hard coating (3H) |
| Optical |
Brightness (Luminance) |
190 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ., Transmissive/TM) / 2:1 (Typ., Reflective/RF) |
|
Viewing Angle |
80°/80°/80°/80° (L/R/U/D, Min., CR≥10) |
|
Display Mode |
TN, Normally White, Transflective |
|
Display Colors |
262K (6-bit color) |
|
Response Time |
40/60 ms (Max., Tr/Td) |
|
Refresh Rate |
60 Hz |
| Backlight |
Light Source |
6S1P WLED, 50,000 hrs lifespan, no built-in driver |
| Touch Panel |
Type |
4-wire Resistive Touch Screen |
| Electrical |
Interface |
Parallel RGB (1 channel, 6-bit), 39-pin FPC |
|
Input Voltage |
3.0 V (Typ.) |
|
Total Power Consumption |
Not specified |
| Environmental |
Operating Temperature |
-20 °C ~ +70 °C (-4 °F ~ +158 °F) |
|
Storage Temperature |
-30 °C ~ +80 °C (-22 °F ~ +176 °F) |
Typical Applications
This transflective LCD with integrated resistive touch is optimized for low-power handheld devices requiring sunlight readability and rugged interaction:
- Handheld Industrial Devices: Data collectors, barcode scanners, and field service terminals with touch-based input.
- Outdoor Consumer Electronics: Portable GPS units, marine navigation systems, and rugged handheld PDAs.
- Industrial HMI & Control Panels: Small machine interfaces, factory automation terminals, and portable process monitors.
- Medical Devices: Portable diagnostic tools and patient monitors requiring reliable touch interaction in variable lighting.
- Retail & Logistics: Rugged handheld inventory scanners and point-of-sale (POS) terminals for outdoor/warehouse use.
