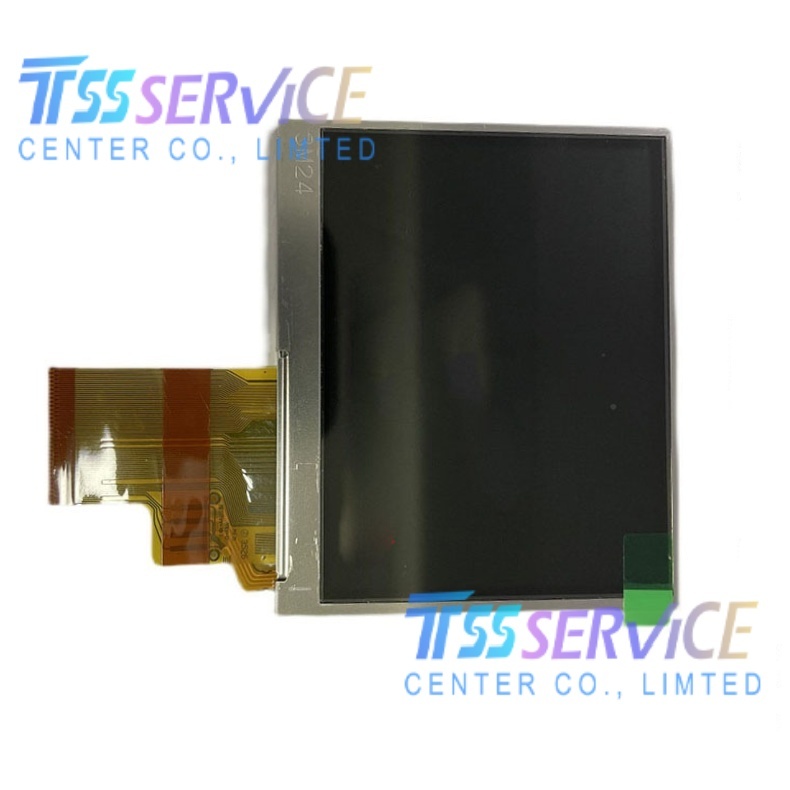

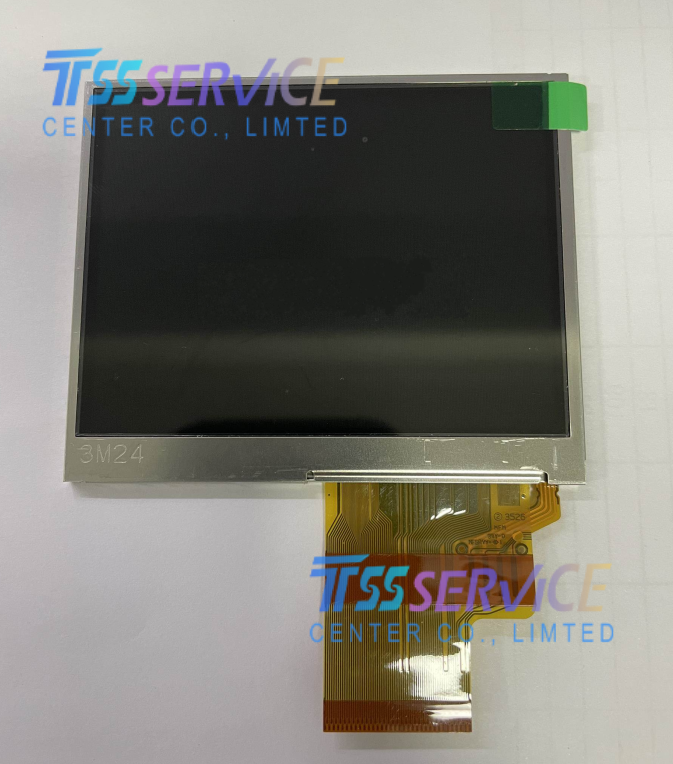

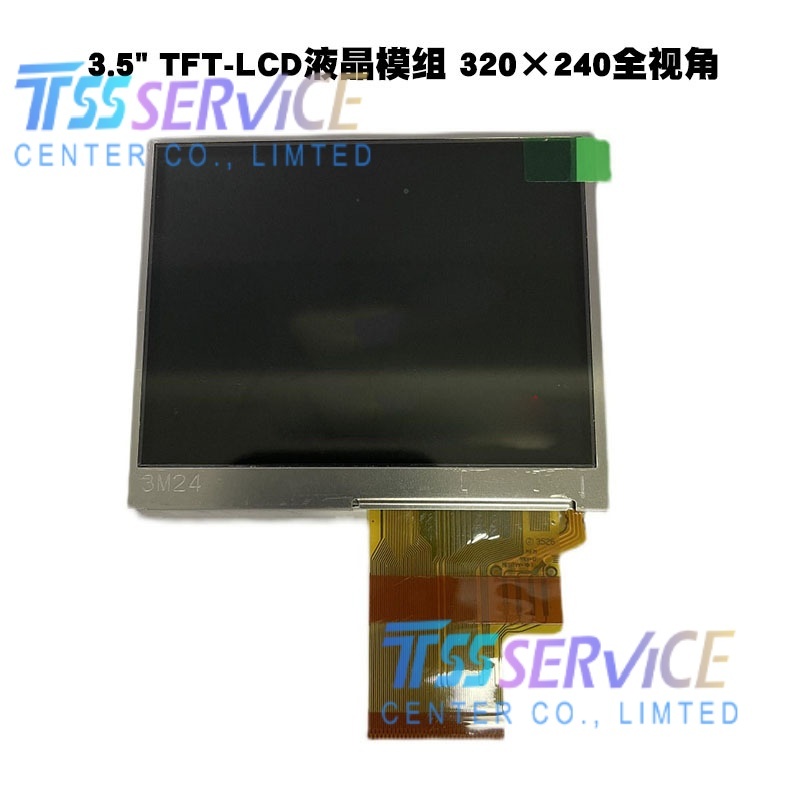

COM35T3196DLC Ortustech 3.5 inch Ortustech LCD Panel Screen For Industrial
| Parameter |
Specification |
| Model |
COM35T3196DLC |
| Display Type |
a-Si TFT-LCD, Color |
| Diagonal Size |
3.5 inches |
| Resolution |
320（RGB）×240 pixels |
| Viewing Area |
70.08 × 52.56 mm |
| Module Dimensions |
77.5 × 63.0 × 3.3 mm |
| Brightness |
400 cd/m²（Typ.） |
| Contrast Ratio |
450:1（Typ.） |
| Viewing Angle |
35°/60°/60°/60°（T/B/L/R） |
| Response Time |
40/60 ms（Max., Tr/Td） |
| Surface Treatment |
Hard coating（3H） |
| Interface |
24-bit RGB / Parallel |
| Logic Voltage（VDD） |
3.3 V（±0.3 V） |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Touch Screen |
Without |
| RoHS |
Compliant |
| Status |
Obsolete / Legacy |
Typical Applications（English）
Industrial Control & Automation
- HMIs & Operator Panels: Factory automation, PLC terminals, production line monitoring（compact size + high brightness）.
- Test & Measurement Instruments: Oscilloscopes, data loggers, industrial meters（stable performance in harsh environments）.
- CNC & Machinery: Small machine tools, engravers, and industrial equipment displays.
