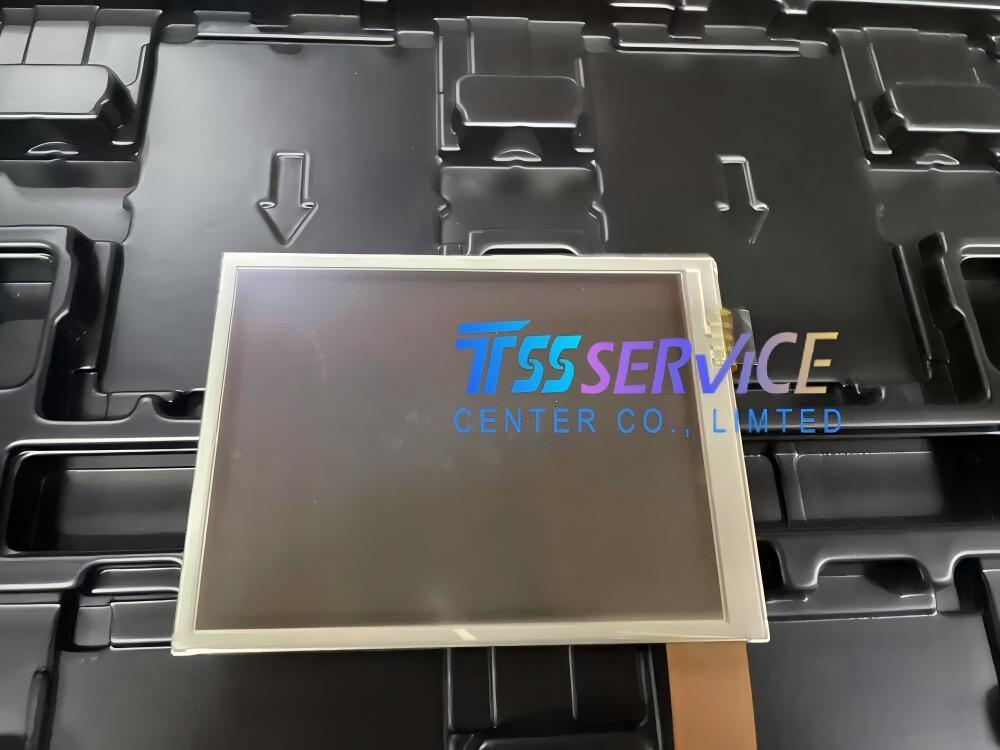

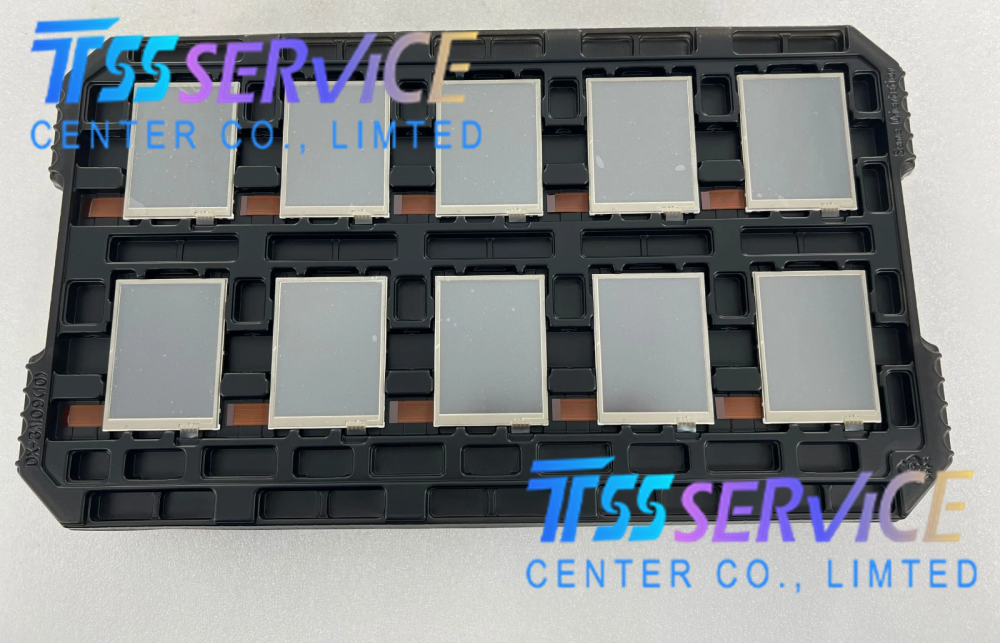

The Ortustech COM35T3M09XTC is a 3.5-inch diagonal a-Si TFT-LCD module designed for applications requiring excellent outdoor readability and integrated touch functionality. This panel features Ortustech's proprietary Blanview technology combined with a transflective design, allowing it to operate effectively in both indoor low-light conditions and direct sunlight without excessive backlight power consumption .
The module comes with an integrated 4-wire resistive touch panel, making it a complete HMI (Human-Machine Interface) solution. It is specifically engineered for handheld devices, industrial equipment, and portable PDAs where battery life and outdoor visibility are critical.
| Parameter |
Value |
| Brand |
Ortustech |
| Model |
COM35T3M09XTC |
| Diagonal Size |
3.5 inch |
| Type |
a-Si TFT-LCD, LCM |
| Pixel Number |
240(RGB)×320, QVGA, 3:4 |
| Dot Layout |
RGB Vertical Stripe |
| Active Area |
53.64(H)×71.52(V) mm |
| Physical Size |
63.5(H)×85(V) mm |
| Mass |
43.5g |
| Surface Coating |
Hard coating (3H) |
| Luminance |
400 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) (TM) |
| Response Time |
40/60 (Max.)(Tr/Td) mm |
| Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K |
| Light Source |
6S1P WLED, 50K hrs, Without Driver |
| Frame Rate |
60Hz |
| Touch Panel |
4-wire Resistive Touch |
| Interface Type |
Parallel RGB (1 ch, 6-bit), 39 pins FPC |
| Power Supply |
3.0V (Typ.) |
| Operating Temp. |
-20 ~ 70 °C |
| Storage Temp. |
-30 ~ 80 °C |
Typical Applications
The combination of sunlight readability, integrated touch functionality, rugged design, and low power consumption makes the COM35T3M09XTC suitable for a wide range of professional applications :
